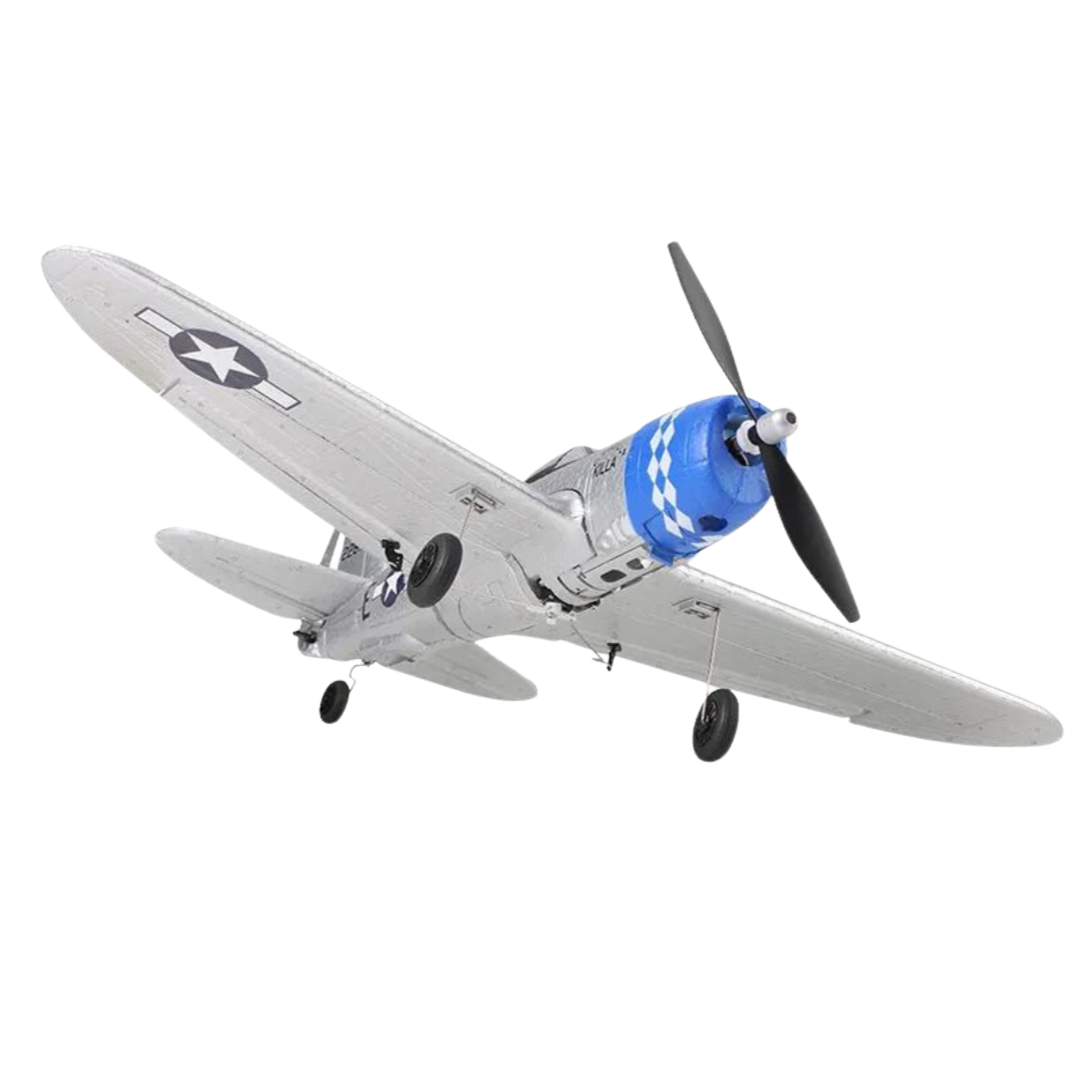

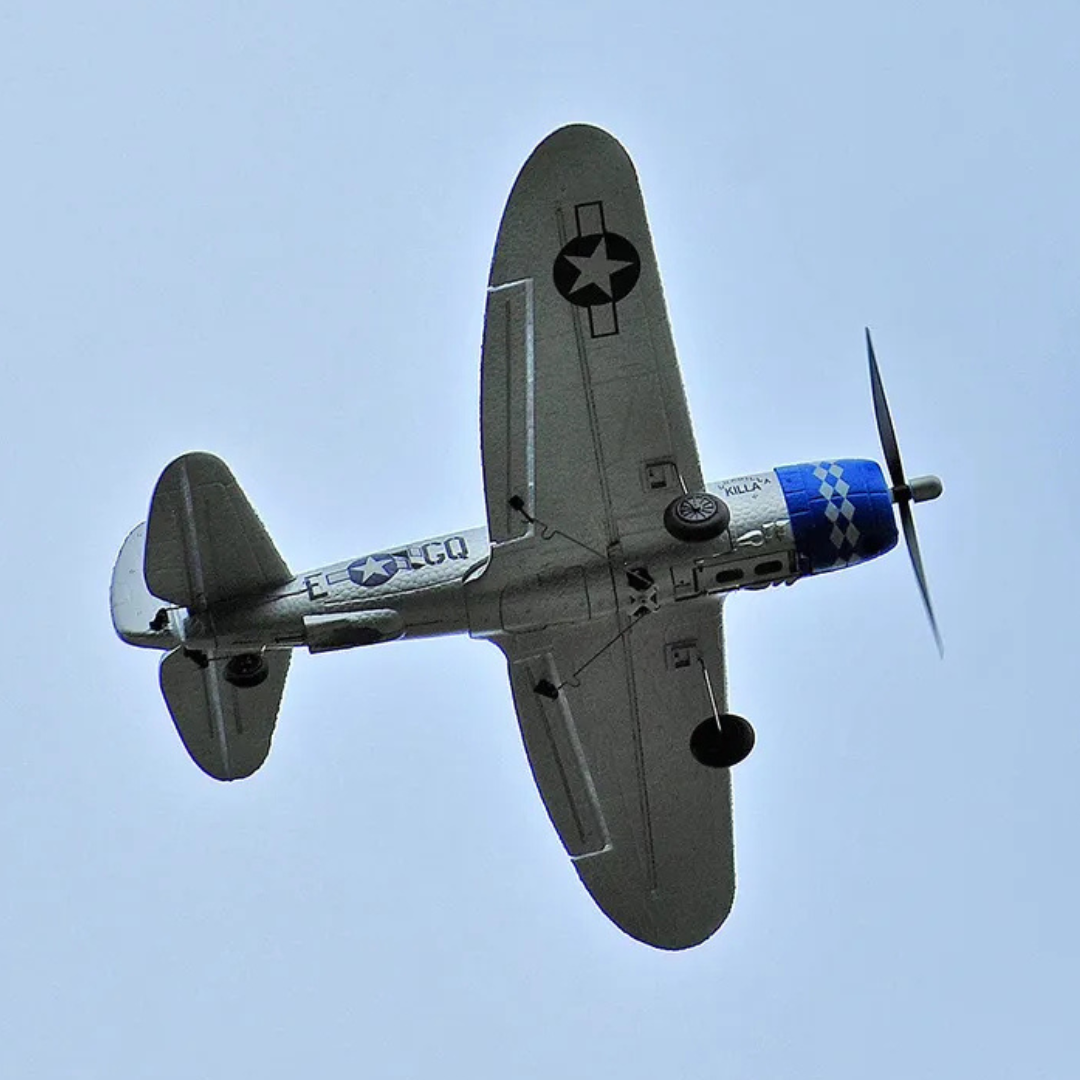

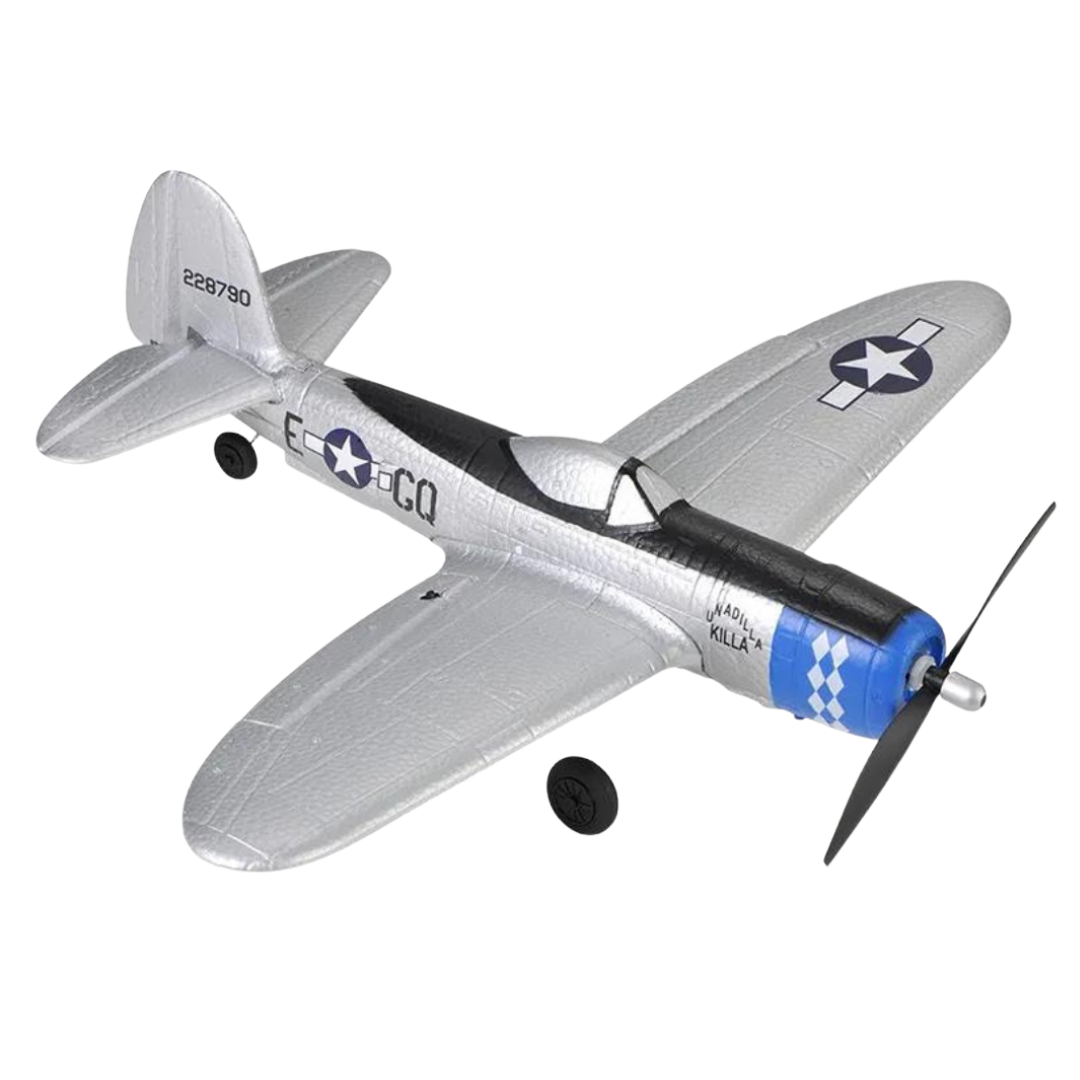

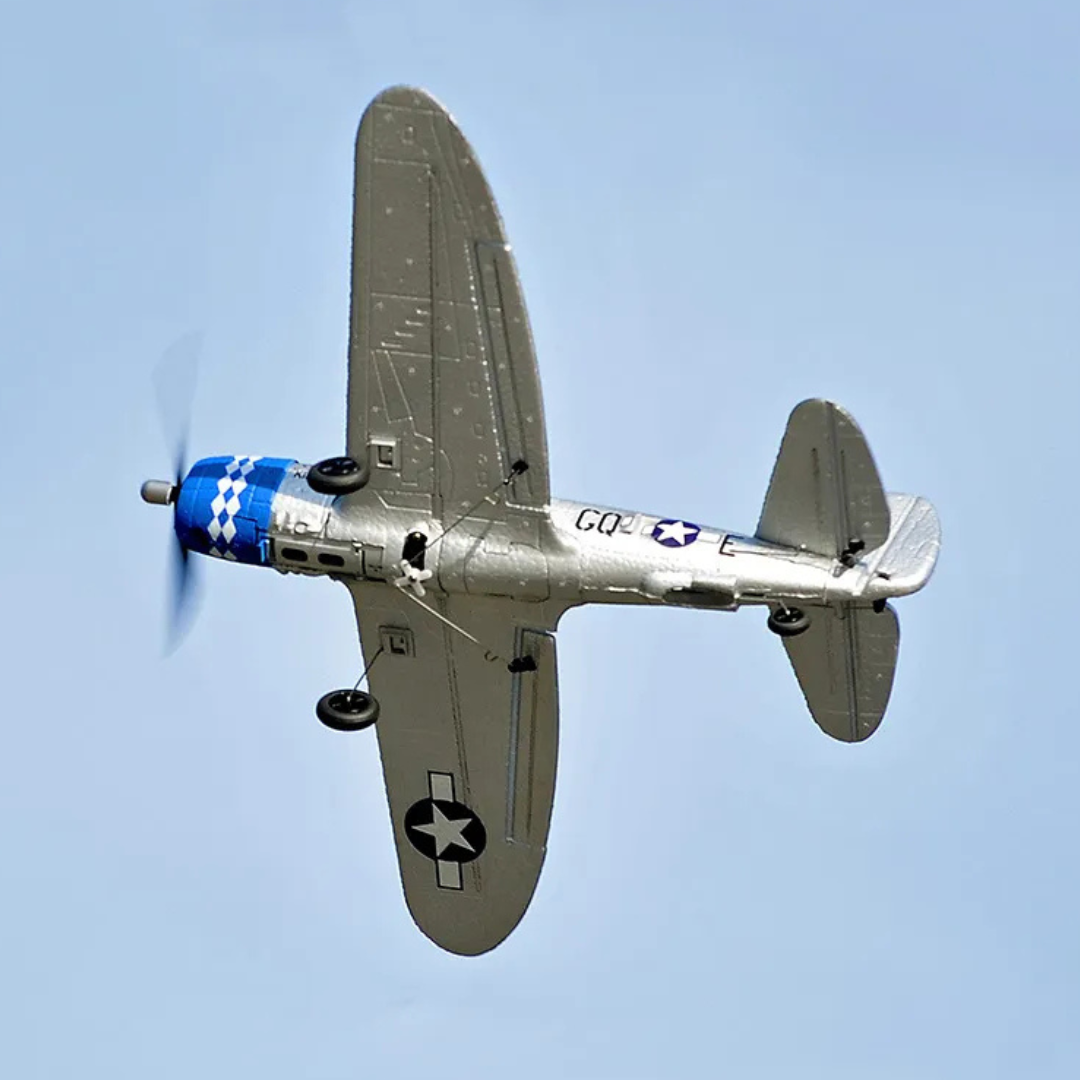

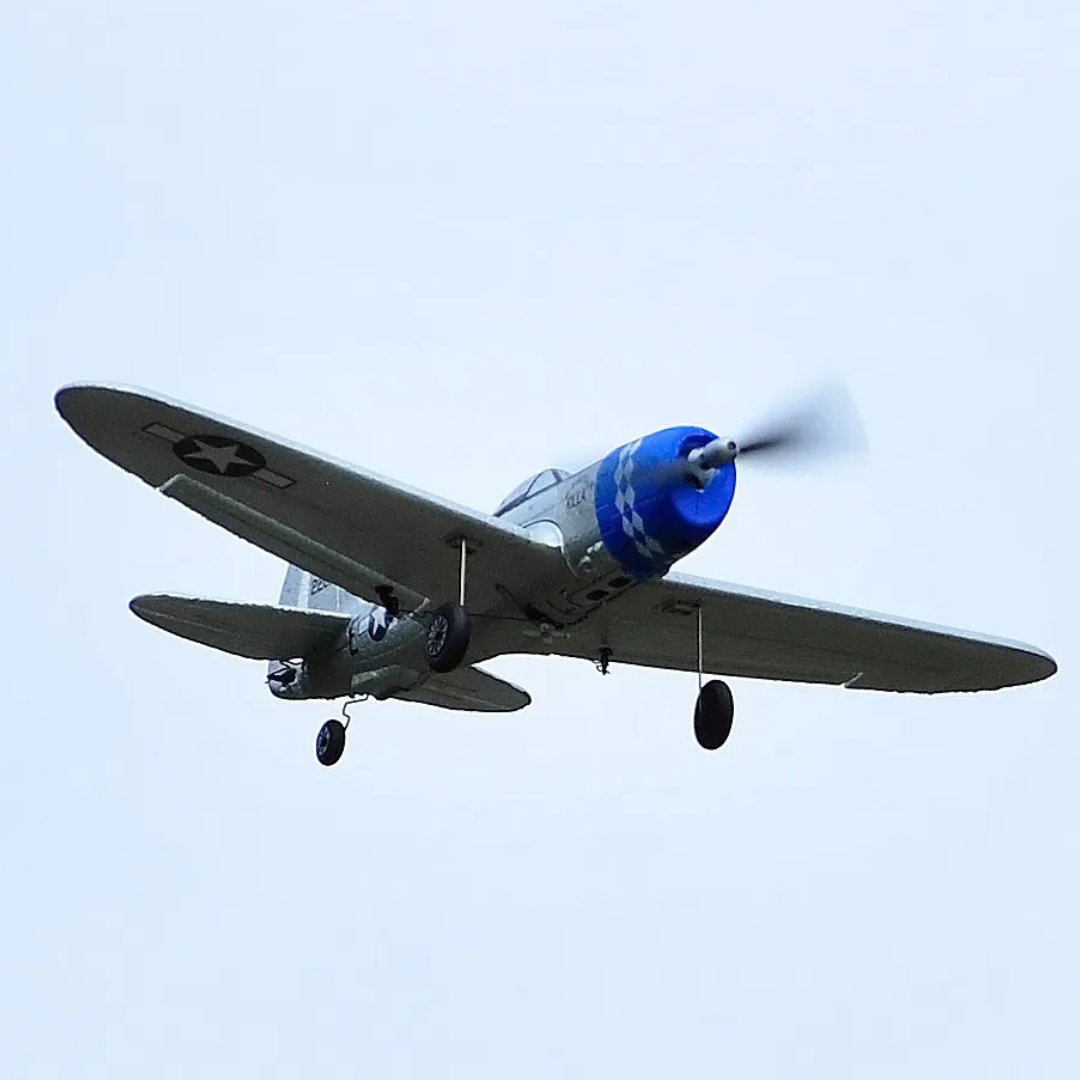

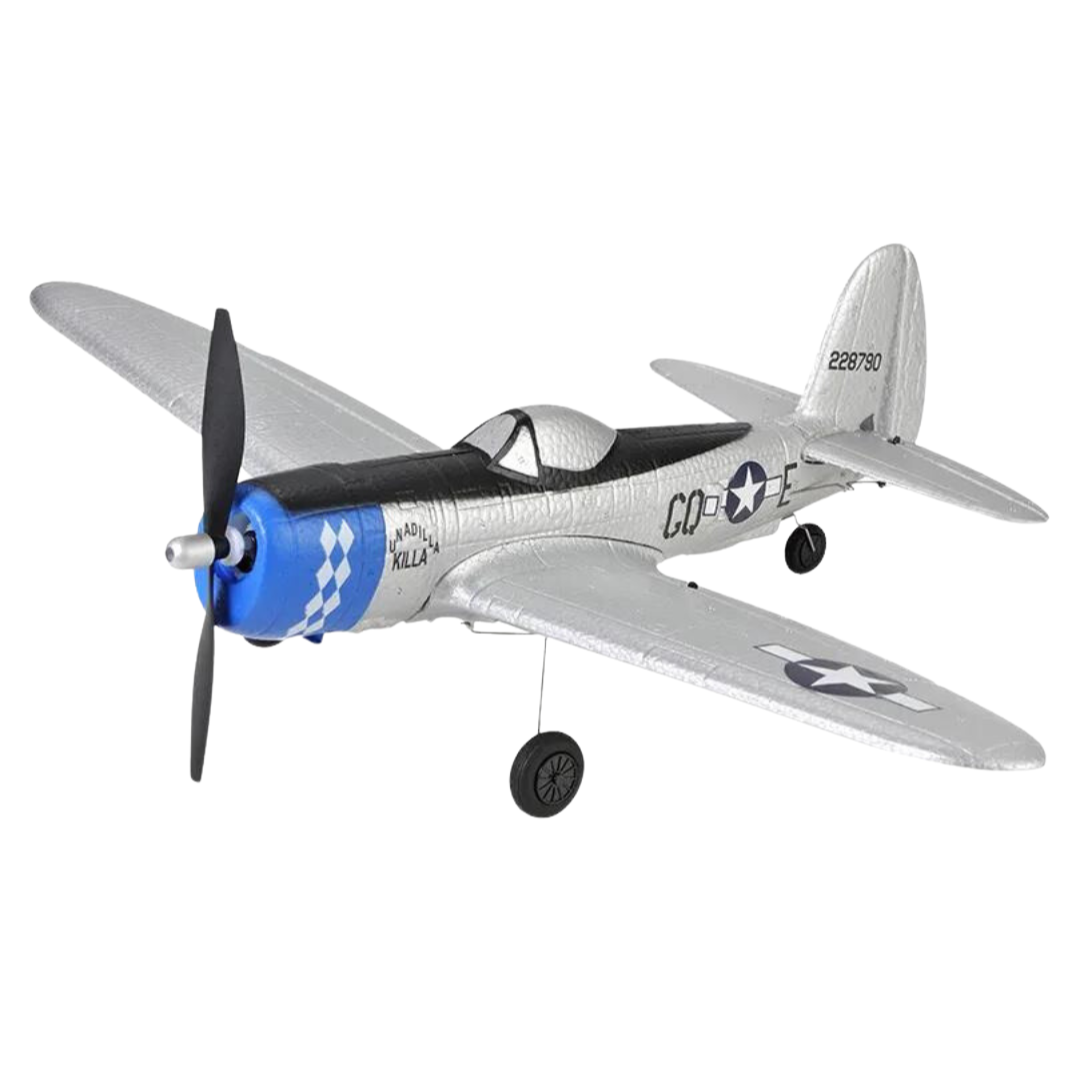

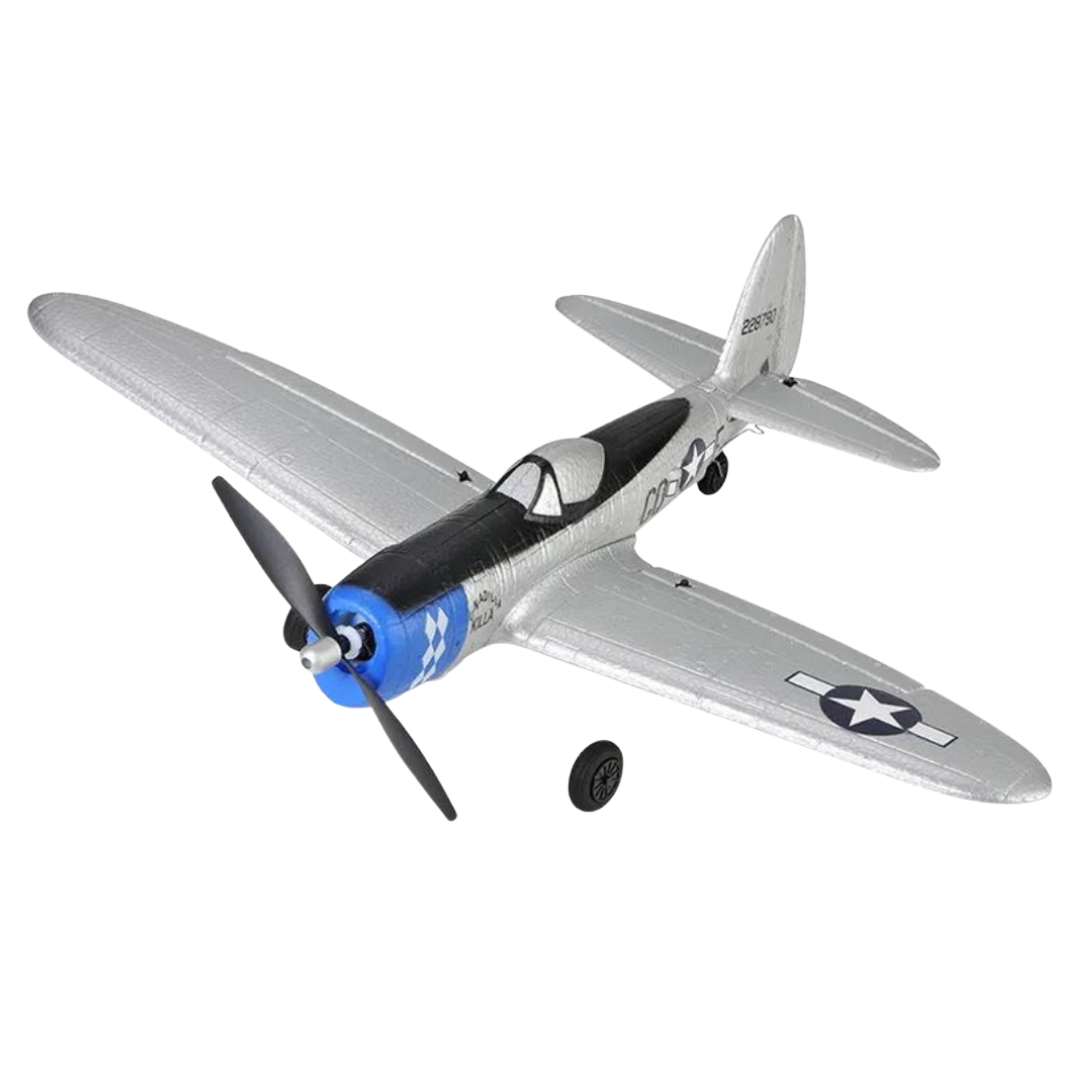

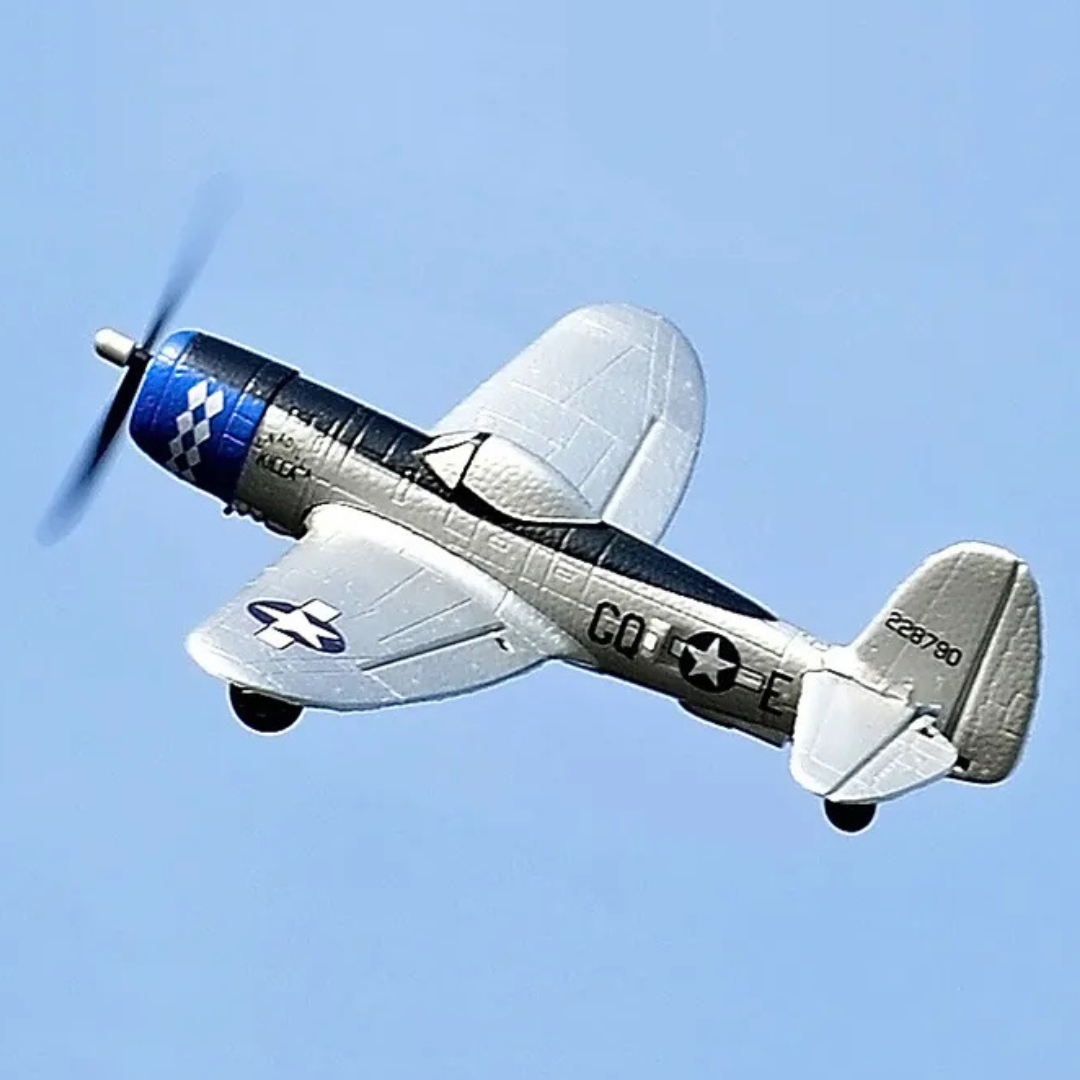

Prime RC Republic P47 Thunderbolt Mini RC Plane 402mm RTF Mode 2 PMQTOP104B

The Prime RC Republic P47 Thunderbolt is a 402 mm ready-to-fly Mode 2 mini RC warbird for beginner and progressing pilots wanting a compact electric aircraft with gyro-assisted control and everything required to begin flying included.

The Mini P47 uses a 6-axis Top-Gyro flight controller with three selectable assistance levels, allowing pilots to start with strong stabilisation, progress to soft assist and then move to manual control. One-key aerobatics, one-key U-turn, EPP foam construction and a propeller saver make it a practical small RC aircraft for learning basic flight skills.

Features

• Ready-To-Fly Package: Includes the aircraft, Mode 2 transmitter, flight battery, USB charging cable and AA transmitter batteries
• 402 mm Mini Warbird: Compact Republic P47 Thunderbolt styling suits park flying and suitable open flying areas
• 6-Axis Top-Gyro System: Helps stabilise the aircraft for smoother beginner-friendly control
• Three Flight Modes: Manual, soft Top-Gyro assist and strong Top-Gyro assist support different pilot skill levels
• One-Key Aerobatics: Allows automatic roll or loop manoeuvres when used in Top-Gyro control mode
• One-Key U-Turn: Helps the aircraft turn back in the opposite direction after take-off
• EPP Foam Construction: Lightweight foam airframe helps absorb minor bumps during learning
• 2.4GHz Radio System: 4-channel transmitter provides stable control without frequency crystals
• Propeller Saver: Allows the propeller to detach from the mount during an impact to help reduce damage
• Gearbox Power System: Uses a coreless motor and gearbox setup suited to the lightweight airframe
• New Rubber Wheel: Included landing gear wheel supports ground take-off from a suitable smooth surface
• OpenTX Compatibility: Listed as compatible with OpenTX transmitters when set up with suitable radio configuration
• Two Take-Off Options: Can be hand launched or flown from a smooth flat runway surface
• Easy Maintenance Design: Detachable lower foam block and removable main wing help access key components

Specifications

• Brand: Prime RC
• Model: Mini Republic P47 Thunderbolt
• SKU: PMQTOP104B
• Manufacturer Part Number: PMQTOP104B
• Barcode: 254502
• Product Type: Electric ready-to-fly RC aircraft
• Aircraft Type: Mini warbird
• Completion Level: RTF
• Transmitter Mode: Mode 2
• Wingspan: 402 mm
• Length: 320 mm
• Flying Weight: 68 g
• Material: EPP foam
• Motor: 1020 coreless motor
• Speed Controller: 4-in-1 ESC, servo, gyro and receiver unit
• Servos: 2 x 1.3 g servos and 1 x 2 g servo
• Battery: 3.7V 400mAh LiPo 20C battery
• Charger: USB charging cable
• Charging Time: 50 to 60 minutes
• Flight Time: 12 to 15 minutes
• Radio System: 2.4GHz 4-channel transmitter
• Control Distance: Around 200 m
• Flight Controller: 6-axis Top-Gyro
• Flight Modes: Manual, soft Top-Gyro assist and strong Top-Gyro assist
• Experience Level: Beginner
• Flying Environment: Indoor and outdoor flying areas
• Flaps: No

Includes

• 1 x Prime RC Mini P47 RC plane
• 1 x Mode 2 2.4GHz transmitter
• 1 x 3.7V 400mAh LiPo flight battery
• 1 x USB charging cable
• 4 x AA transmitter batteries
• 1 x Screwdriver
• 1 x Spare propeller

FAQ

Is the Prime RC Mini P47 ready to fly? Yes. The Prime RC Mini P47 is supplied as a ready-to-fly aircraft with the plane, transmitter, LiPo battery, USB charging cable and AA transmitter batteries included.

Is the Mini P47 suitable for beginners? Yes. The Mini P47 includes a 6-axis Top-Gyro system with strong beginner assist, soft assist and manual flight modes, allowing new pilots to build confidence progressively.

What does Mode 2 mean? Mode 2 means the throttle control is on the left stick and the main elevator and aileron controls are on the right stick, which is a common RC aircraft transmitter layout.

Can the Mini P47 take off from the ground? Yes. The Mini P47 can take off from a smooth flat runway surface, and it can also be hand launched using the recommended throttle and launch technique.

How long does the battery take to charge? The included 3.7V 400mAh LiPo battery has a listed charging time of approximately 50 to 60 minutes using the supplied USB charging cable.

Important Notes

• Fly only in a large open area away from people, animals, buildings, roads, trees and power lines.
• Beginner pilots should start in strong Top-Gyro assist mode before trying soft assist or manual mode.
• Small RC aircraft are affected by wind, so avoid flying in strong or gusty conditions.
• Ground take-off requires a smooth flat surface with enough runway distance.
• OpenTX transmitter compatibility may require suitable radio setup, binding and model configuration.
• Use only a suitable USB LiPo charging method for the included battery.
• LiPo batteries must be charged, stored and handled using correct LiPo safety procedures.
• Inspect the propeller, control surfaces and airframe before each flight.
