HOBBYWING QuicRun Mini16 Fusion 370 RC Brushless ESC Motor System 2-3S 30120403

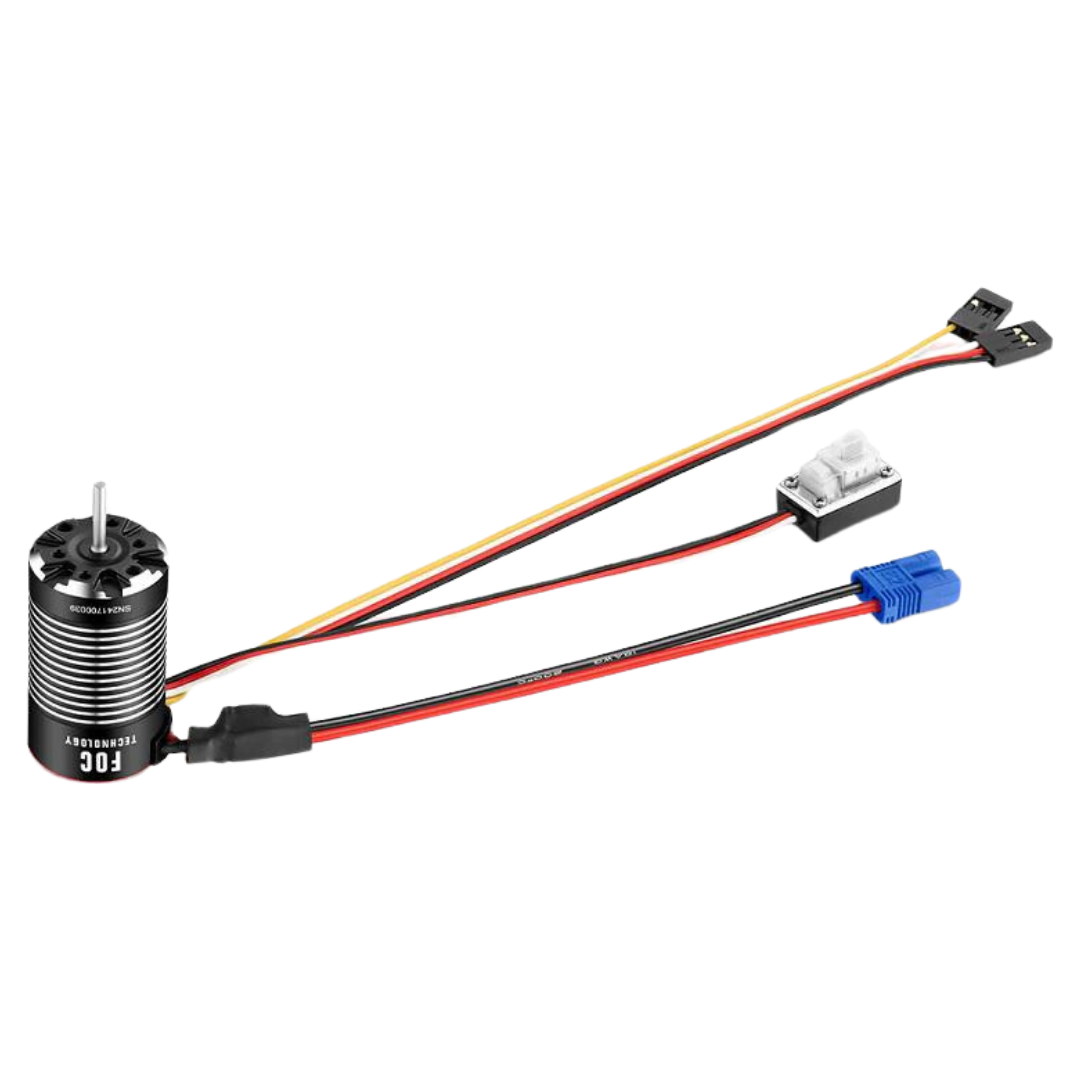

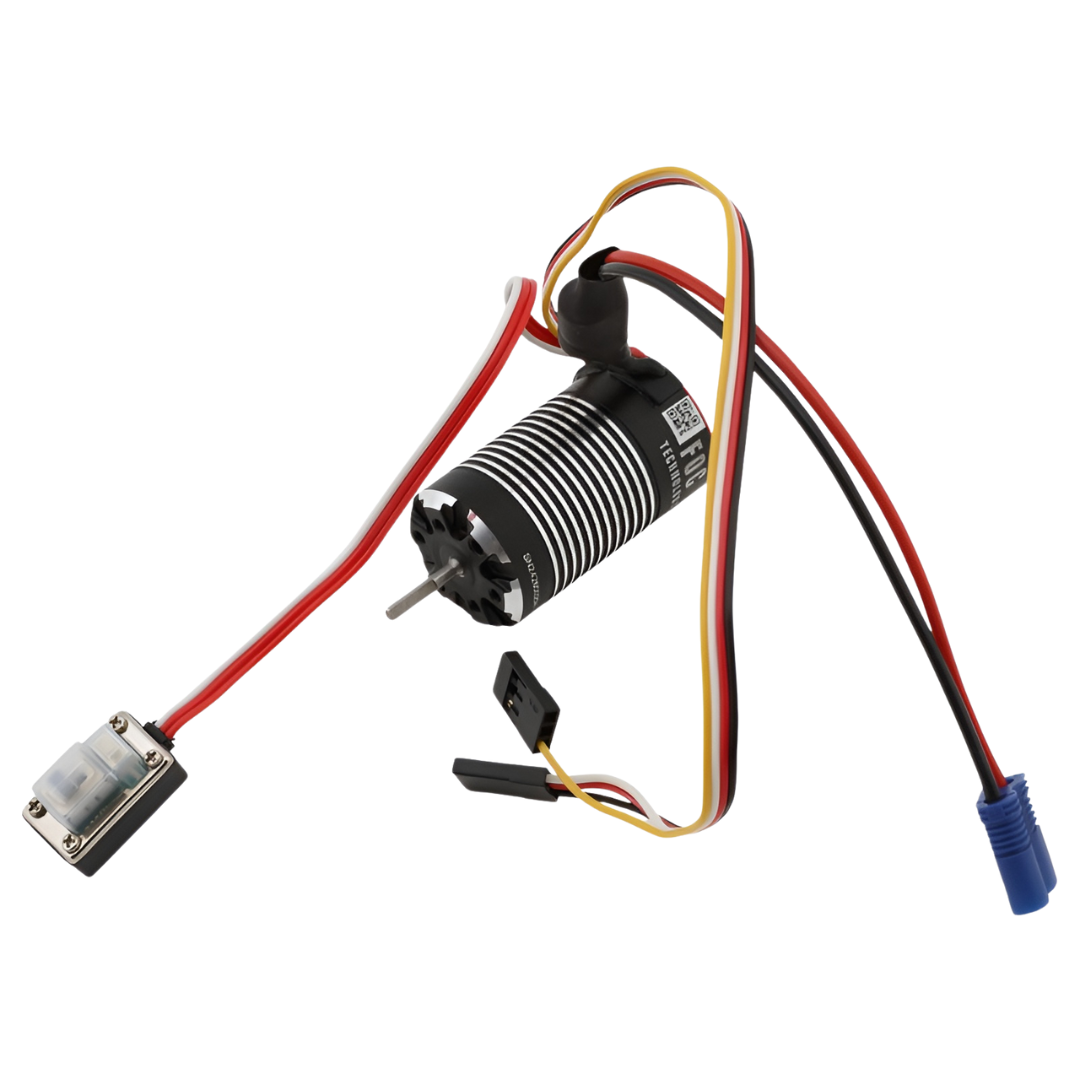

The HOBBYWING QuicRun Mini16 Fusion 370 is a 2-in-1 brushless ESC and motor system designed for 1/16 and 1/18 scale RC crawlers. Combining the ESC and motor into a single compact unit reduces wiring, simplifies installation and delivers smooth low-speed control using FOC technology.

Features

• Integrated 2-in-1 brushless ESC and motor design reduces wiring and saves space
• FOC (Field Oriented Control) technology provides exceptionally smooth low-speed control and strong torque
• Designed for 1/16 and 1/18 scale RC crawler applications
• IP65-rated waterproof and dustproof construction for reliable all-weather operation
• Switch-mode BEC with selectable 6V or 7.4V output
• Adjustable active drag brake for improved hill holding and crawling control
• High operating efficiency helps reduce heat and extend run time
• Quieter operation than conventional sensorless systems
• Supports programming using the onboard button or compatible Hobbywing Program Box

Specifications

• Brand: HOBBYWING
• Manufacturer Part Number: 30120403
• Product Type: 2-in-1 Brushless ESC and Motor System
• Suggested Application: 1/16 and 1/18 RC Crawlers
• Motor Type: Brushless
• Input Voltage: 2-3S LiPo
• Continuous Current: 30A
• Peak Current: 80A
• BEC Output Voltage: 6V / 7.4V selectable
• BEC Output Current: 4A
• Battery Connector: EC2
• Throttle Lead: Standard servo connector
• Programming Method: Onboard button or Hobbywing Program Box
• Dimensions: 24 × 42 mm
• Weight: 72 g

Includes

• 1 × HOBBYWING QuicRun Mini16 Fusion 370 2-in-1 Brushless ESC and Motor System
• 1 × Mounting plate

FAQ

What vehicles is this system designed for? The QuicRun Mini16 Fusion 370 is designed for 1/16 and 1/18 scale RC crawler applications where compact size, smooth low-speed control and simplified installation are important.

What battery can I use? This system supports 2S and 3S LiPo batteries fitted with an EC2 connector or a compatible adapter.

Can the BEC output be adjusted? Yes. The integrated switch-mode BEC can be configured to supply either 6V or 7.4V for compatible steering servos.

Is this ESC and motor waterproof? The unit is IP65 rated to provide protection against water and dust during normal RC use. It should not be submerged in water.

Important Notes

• Designed specifically for compatible 1/16 and 1/18 scale RC crawler vehicles.
• Ensure your vehicle has sufficient mounting space before installation.
• Battery, transmitter, receiver and steering servo are required and sold separately.
• Always confirm your servo is compatible with the selected 6V or 7.4V BEC output before use.
