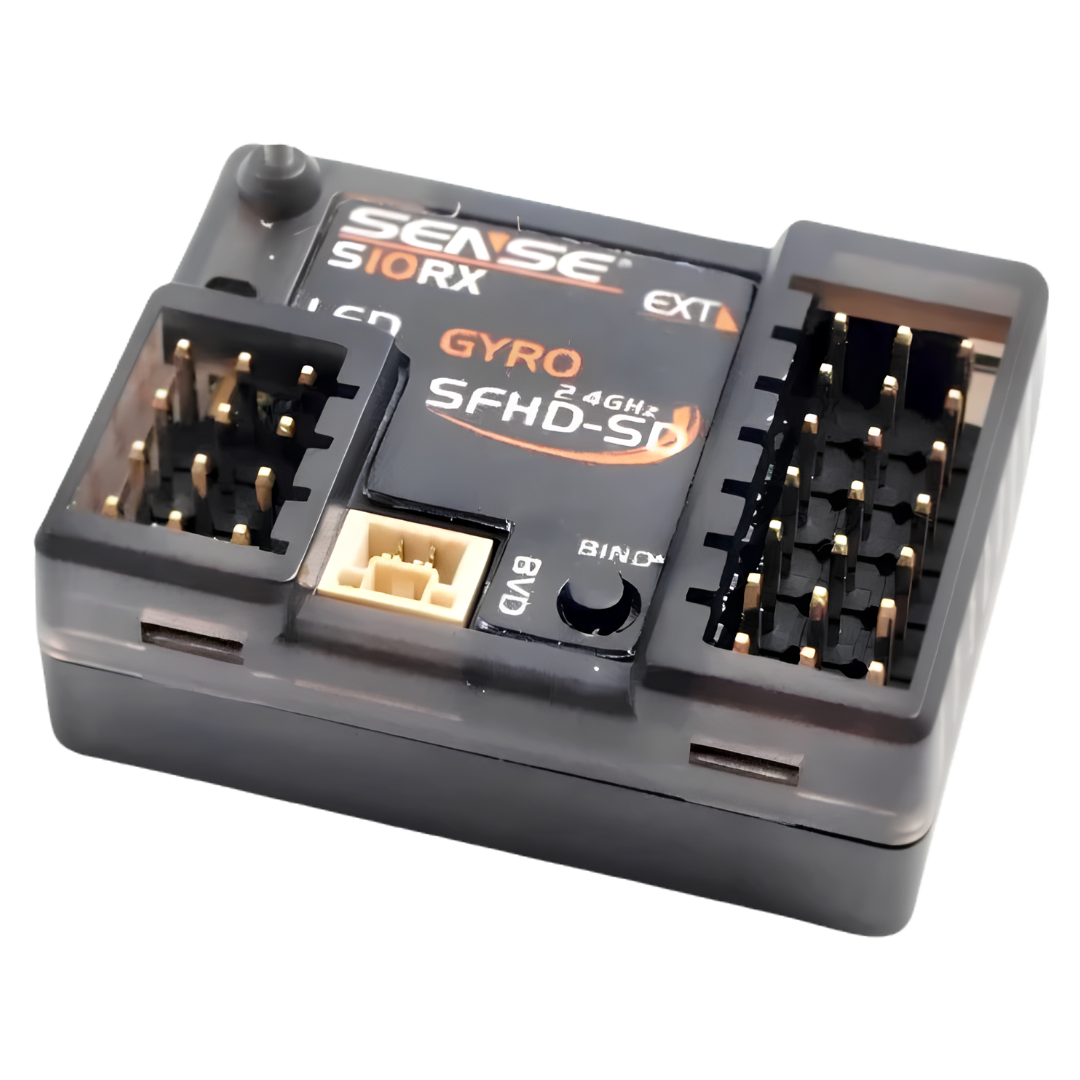

Sense Innovations S10RX 10CH Receiver Built-In Gyro SENSES10RX

The Sense Innovations S10RX is a 10-channel 2.4GHz surface receiver with built-in gyro for the Sense S10 transmitter, suited to RC car and boat users needing extra channels, receiver telemetry support and steering stabilisation control.

This standalone S10RX receiver is ideal for adding another model to a Sense S10 radio system or replacing a damaged receiver. It provides 10 PWM channels, an external single antenna, PWM/PPM data output and OTA update support through the compatible S10 transmitter system.

Features

• Sense S10 Compatibility: Designed for use with the Sense Innovations S10 transmitter
• 10 PWM Channels: Provides expanded channel control for crawlers, boats, custom builds and multi-function RC vehicles
• Built-In Gyro: Supports receiver-based stabilisation control when configured through the S10 transmitter
• External Single Antenna: Helps support reliable signal reception when installed correctly
• SFHD-SD Protocol: Uses Sense Innovations 2.4GHz wireless protocol for the S10 radio system
• PWM / PPM Output: Supports standard PWM output and PPM output for compatible external devices
• OTA Update Supported: Receiver firmware updates can be performed through the S10 system
• GPS Accessory Support: EXT port supports the compatible Sense S10 GPS module, sold separately
• Compact Receiver Case: Small 34.5 x 26 x 13.6mm size suits many RC car and boat installations

Specifications

• Brand: Sense Innovations
• Model: S10RX
• SKU: SENSES10RX
• Product Type: RC surface receiver
• Compatible Transmitter: Sense S10
• Compatible Use: RC cars and boats using the Sense S10 system
• PWM Channels: 10
• Built-In Gyro: Yes
• RF Frequency: 2403MHz to 2480MHz
• Wireless Protocol: SFHD-SD
• Antenna Type: External single antenna
• Operating Voltage: 5 to 9V DC
• Data Output: PWM / PPM
• OTA Update: Supported
• Operating Temperature: -10°C to +60°C
• Operating Humidity: 20% to 95% RH
• Dimensions: 34.5 x 26 x 13.6mm
• Weight: 10g
• Certifications: CE-RED, FCC ID, RoHS

Includes

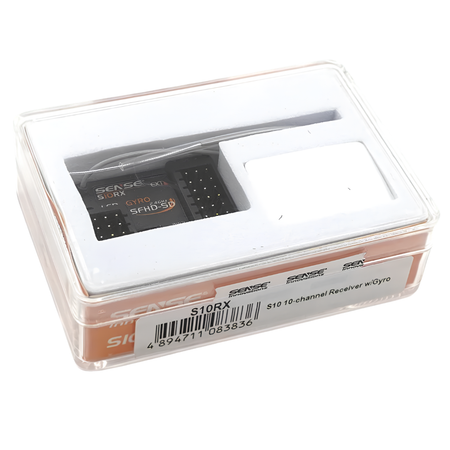

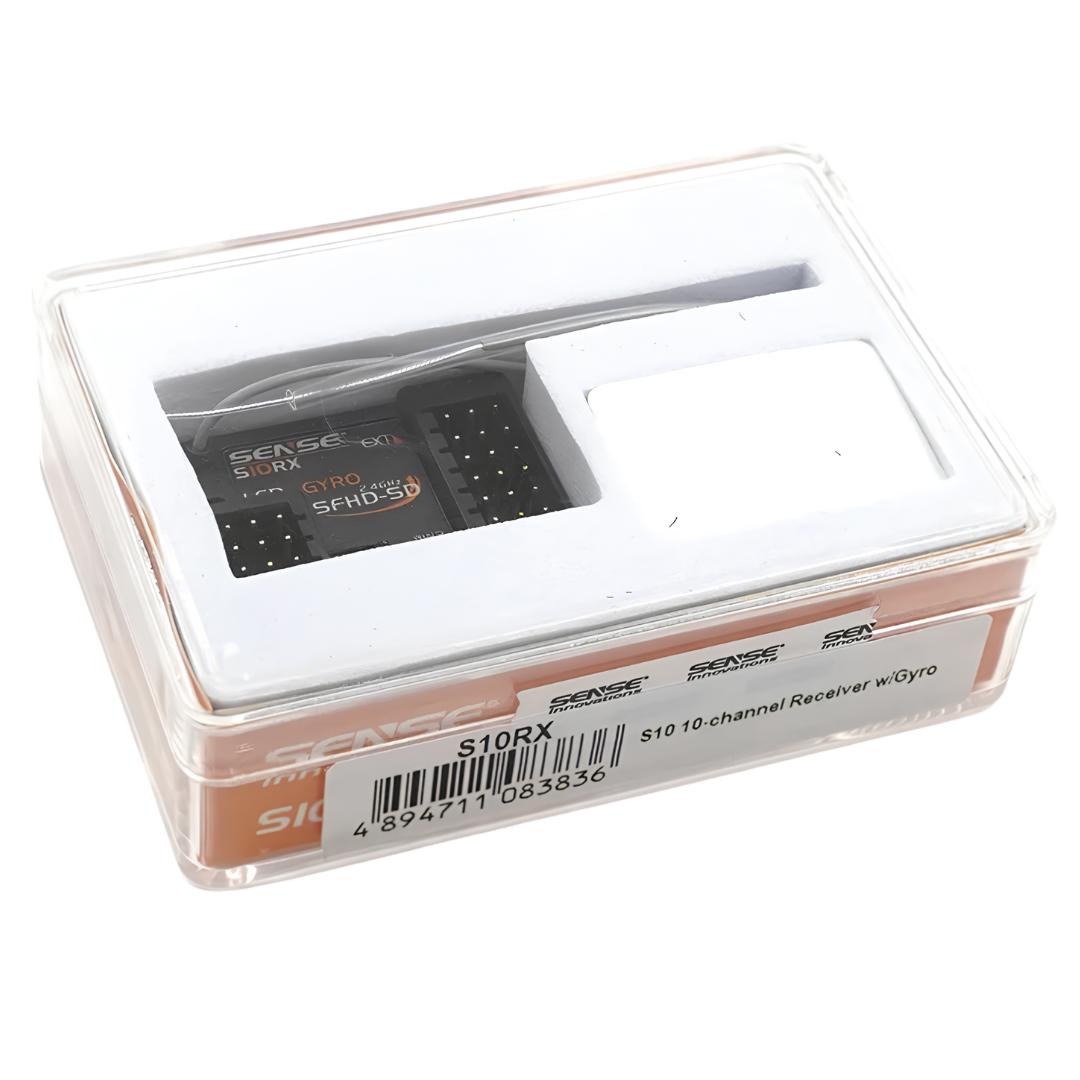

• 1 x Sense Innovations S10RX 10-channel receiver with built-in gyro

FAQ

What transmitter does the S10RX receiver work with? The Sense Innovations S10RX receiver is designed for the Sense S10 transmitter system.

Does the S10RX have a built-in gyro? Yes. The S10RX includes a built-in gyro and supports gyro stabilisation setup through the compatible S10 transmitter.

Is the Sense S10 transmitter included? No. This listing includes the S10RX receiver only. OZRC recommends pairing it with a compatible Sense S10 transmitter.

Can this receiver use the Sense GPS module? Yes. The S10RX receiver supports the compatible Sense S10 GPS module through the EXT port, but the GPS module is sold separately.

Important Notes

• Requires a compatible Sense Innovations S10 transmitter.
• Not intended for use with unrelated RC radio systems.
• Receiver must be bound and configured before use.
• Receiver power is supplied by the vehicle or boat receiver power source, ESC BEC or compatible external power source.
• Install the receiver away from motors, fans and high-vibration areas where possible for better gyro performance.
• Gyro calibration and end point setup should be completed after installation.
• Keep the antenna clear of carbon fibre, metal parts and high-current wiring where possible.
• Protect the receiver from water, dust and impact unless installed in a suitable sealed radio box or protected location.
• Sense S10 transmitter, GPS module, servos, ESC, battery, charger, RC vehicle and installation accessories are not included unless shown separately.
