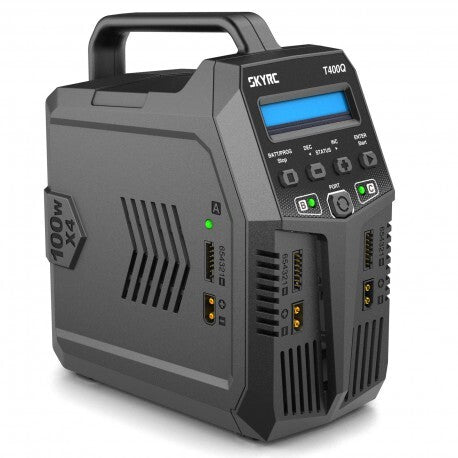

T400Q Quattro Balance Charger/Discharger SK-100189

The T400Q Quattro Balance Charger/Discharger is a powerful and versatile charging solution for RC enthusiasts. With support for multiple battery types and four independent 100W charging circuits, this charger is ideal for managing a wide range of charging and discharging needs. Its user-friendly design and robust safety features ensure reliable performance.

Features

• Four Independent Channels: Each channel provides 100W of charging power
• Versatile Battery Support: Compatible with LiPo, LiHV, LiFe, LiIon (1-6S), NiMH/NiCd (1-15S), and Pb (2-20V) batteries
• Wide Charge Current Range: Adjustable from 0.1A to 12.0A for various battery capacities
• Efficient Discharging: Discharge current up to 2.0A with a maximum discharge wattage of 10W
• Integrated Balancing: Balancing current of up to 500mA ensures even cell charging
• Dual Power Input: Operates on 11-18V DC or 100-240V AC for maximum flexibility
• User-Friendly Display: Features a blue backlit 2x16 LCD for clear status updates
• Durable Construction: Compact plastic case for portability and durability

Specifications

• Case Material: Plastic
• Case Dimensions: 186 x 103 x 209mm
• Weight: 1610g
• Charge Wattage: 100W x 4
• Discharge Wattage: 10W
• Charge Voltage Range: 0.1-26.1V/cell
• Charge Current: 0.1A-12.0A
• Discharge Current: 0.1A-2.0A
• Balance Current: 500mA Max
• Supported Battery Types and Capacity:
• LiPo/LiIon/LiFe/LiHV: 1-6S, 100-50000mAh
• NiMH/NiCd: 1-15S, 100-50000mAh
• Pb: 2-20V, 100-50000mAh

Safety Features

• Adjustable Safety Timer: 1-720 minutes with default setting of 120 minutes
• Precise Voltage Detection: Adjustable charge and discharge cut-off voltages for all supported battery types

Environmental Specifications

• Operating Temperature: 0℃ to 40℃
• Operating Humidity: 0%-75%
• Storage Temperature: -10℃ to 70℃
• Storage Humidity: 0%-75%
