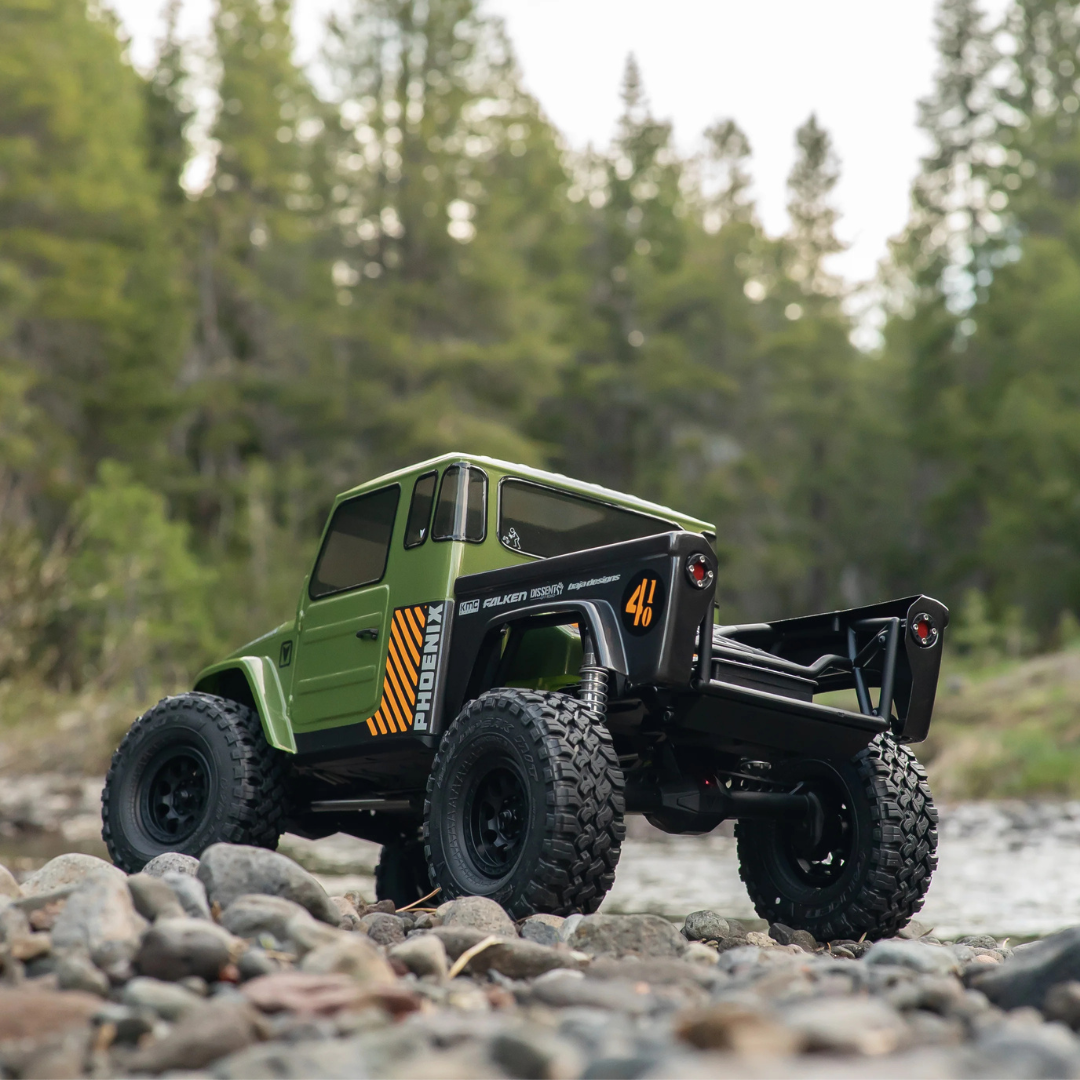

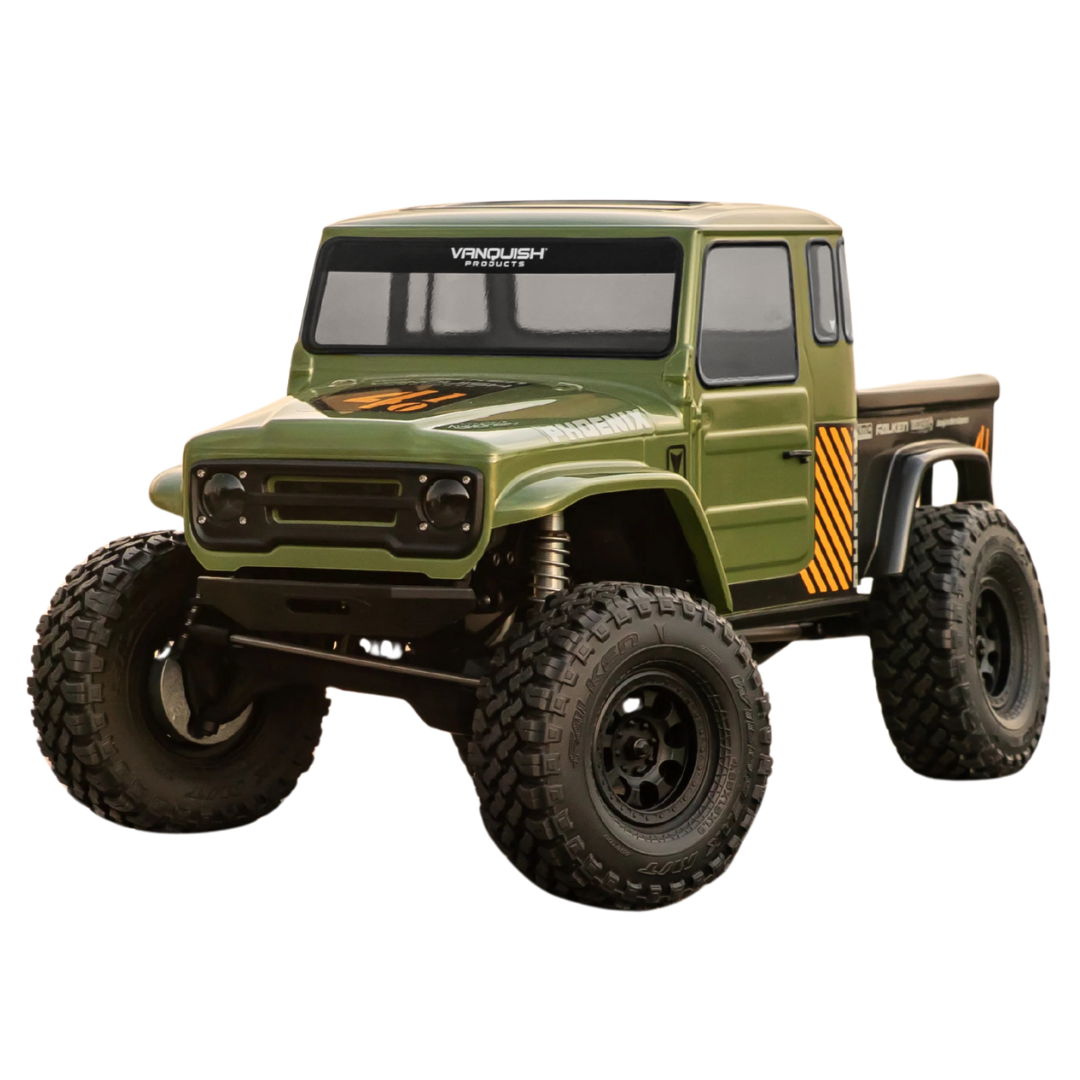

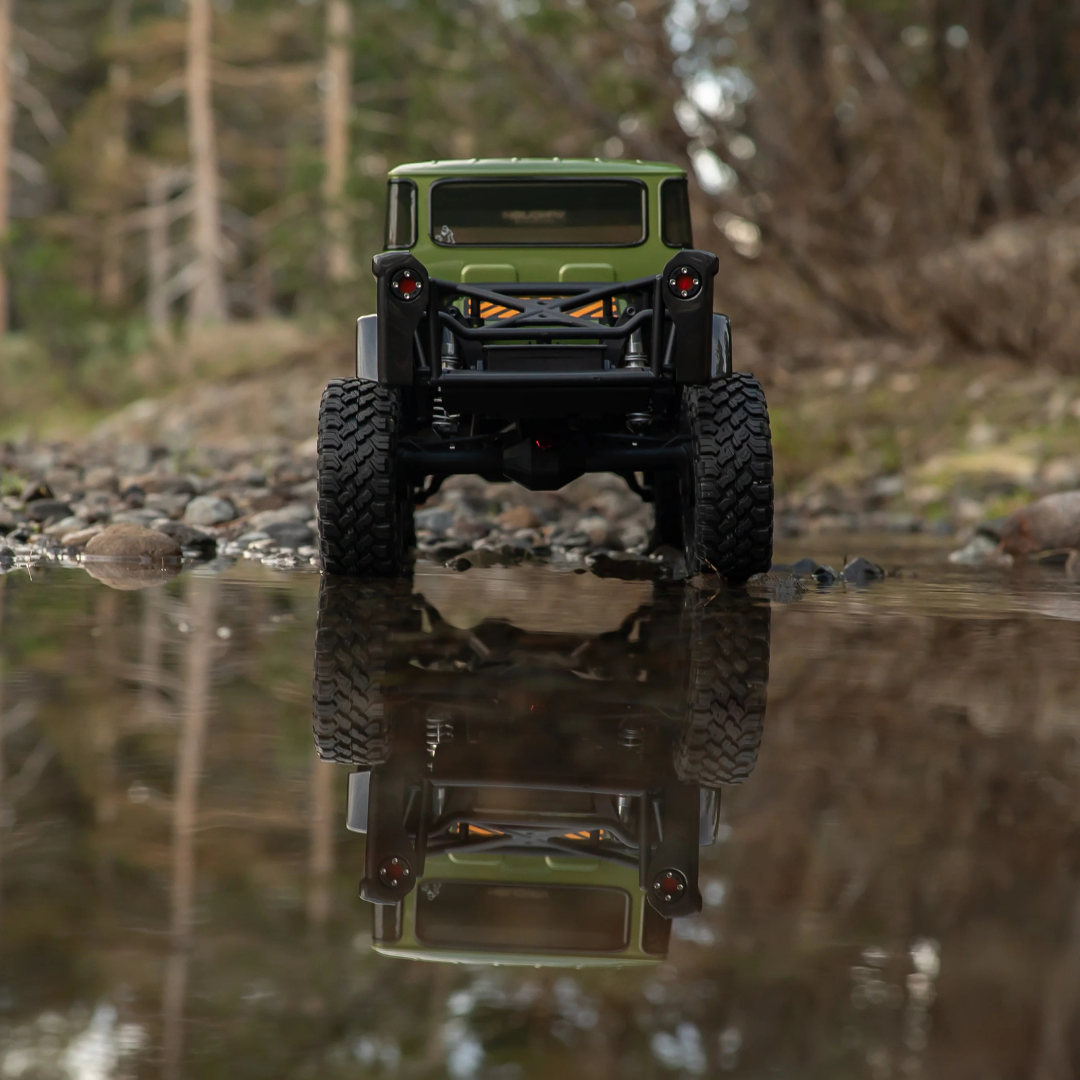

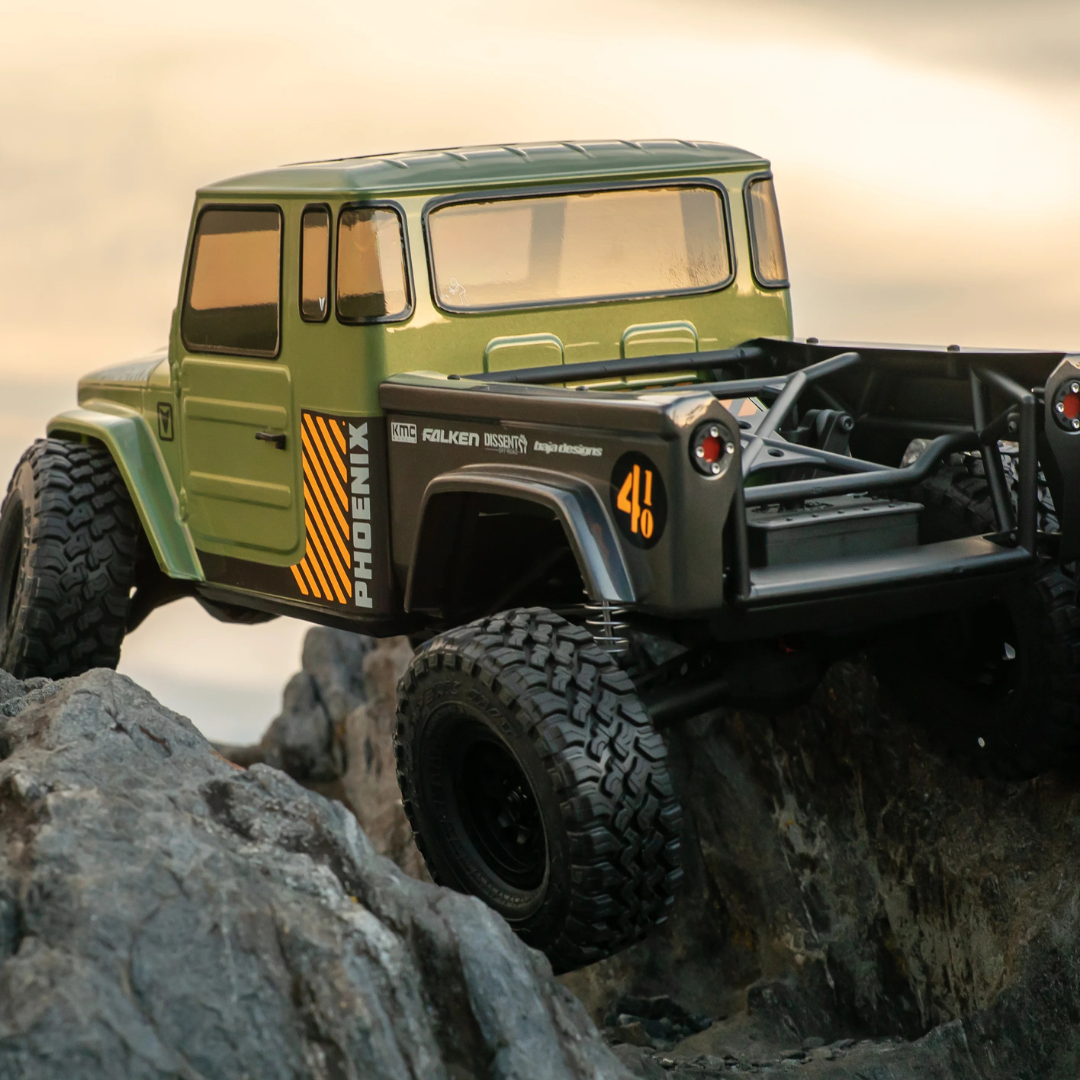

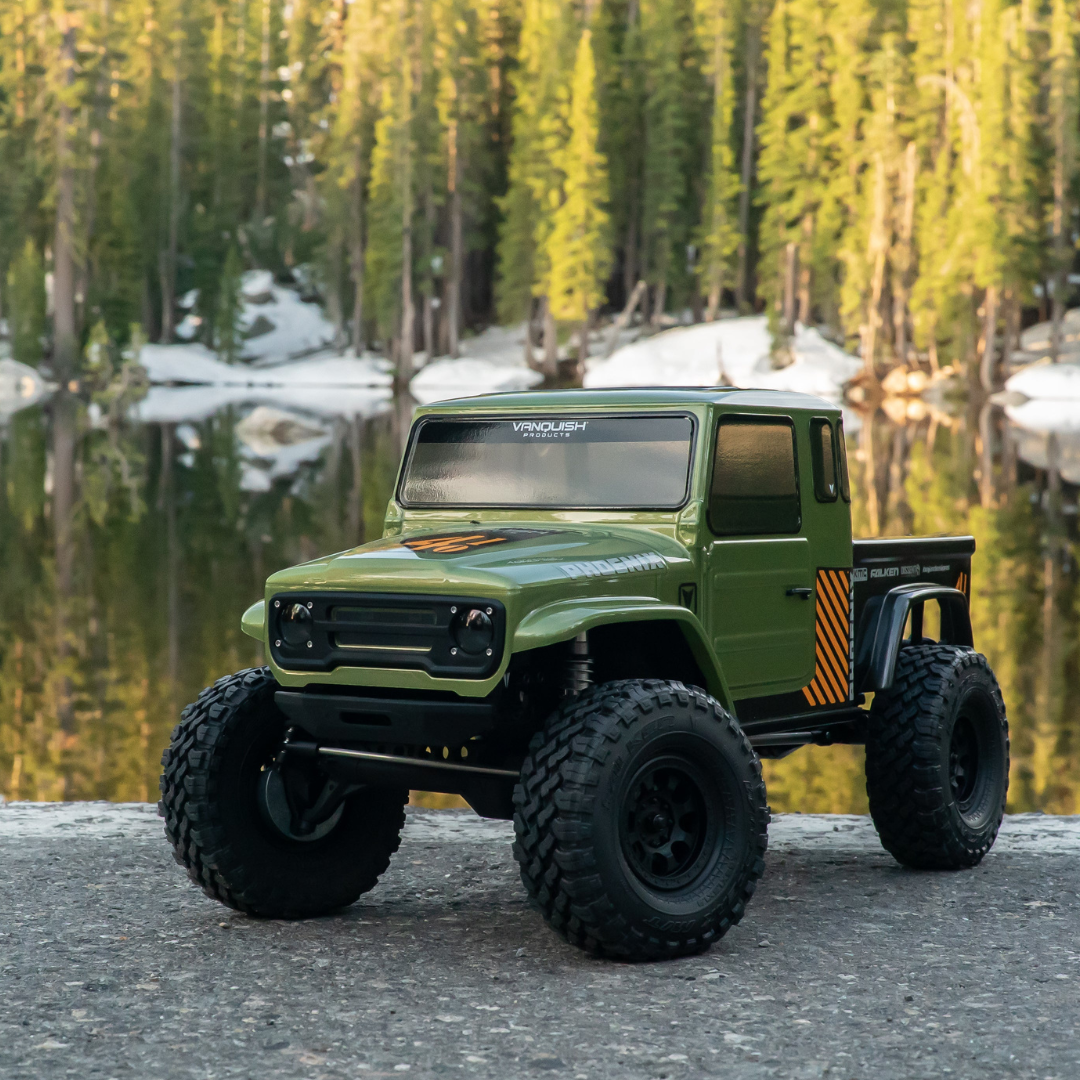

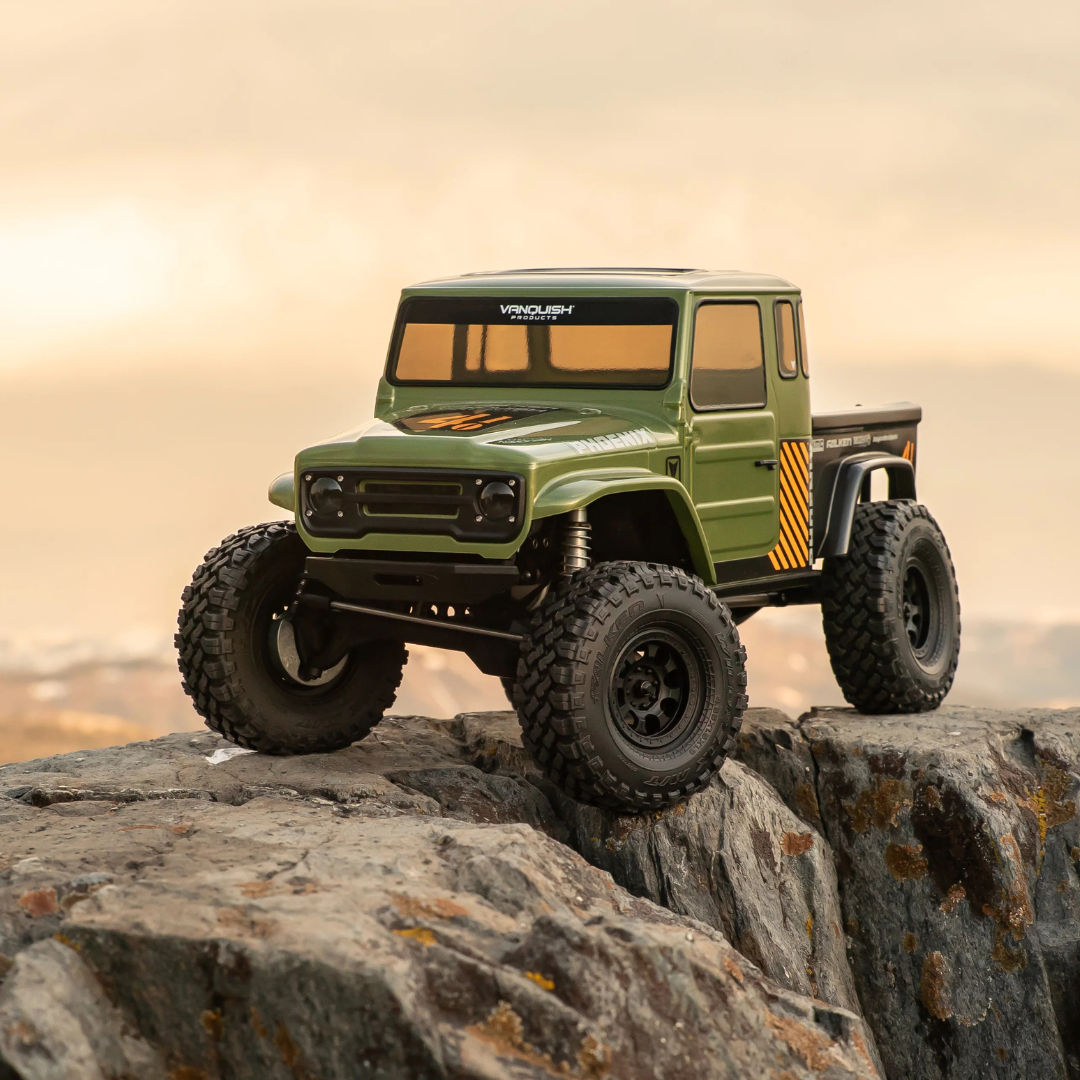

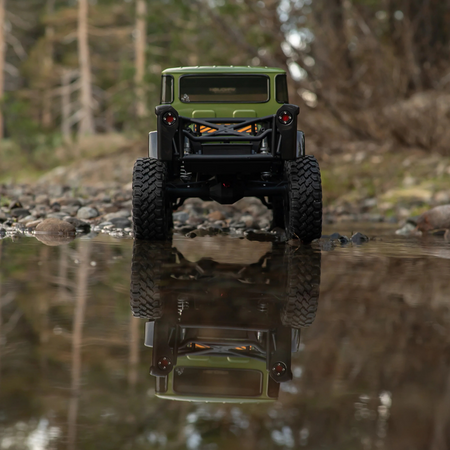

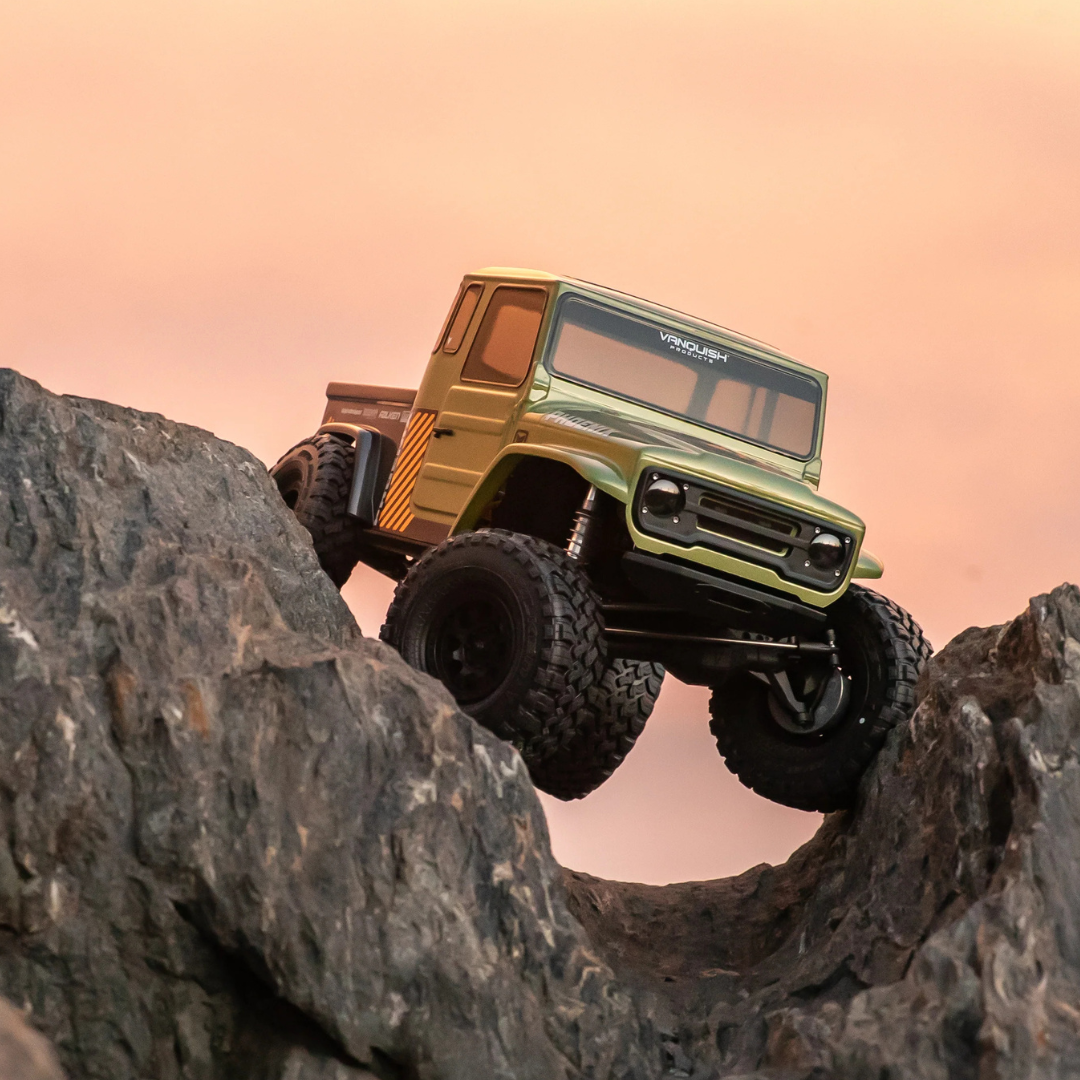

Vanquish VS4-10 Phoenix Portal RTR RC Rock Crawler 1/10 Metallic Green VPS09019

The Vanquish VS4-10 Phoenix Portal RTR is a high-performance 1/10 scale trail truck built for durability, scale realism, and serious off-road capability. Featuring F10 Portal Axles, a VFD Spec transmission with overdrive, and a factory-assembled chassis, this ready-to-run model is equipped for technical terrain right out of the box. Requires battery and charger.

Features

• VFD Spec transmission with 6.5% overdrive for improved climbing and turning

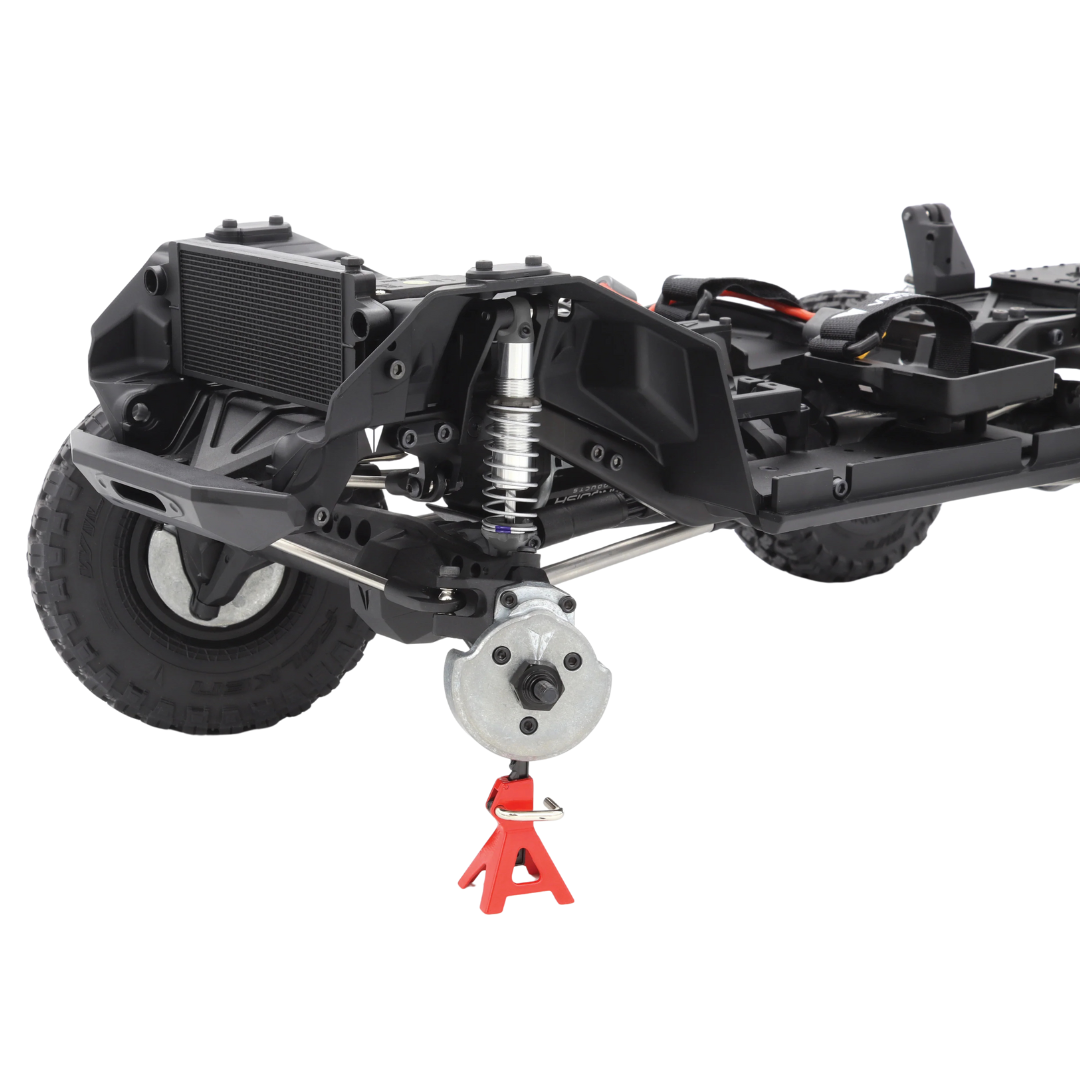

• F10 Portal Axles with knuckle weights and machined gears
• Full function 4-channel VT-1 transmitter with model memory and end point adjustment
• 35T VM-1 brushed motor and VE-1 3S-capable ESC

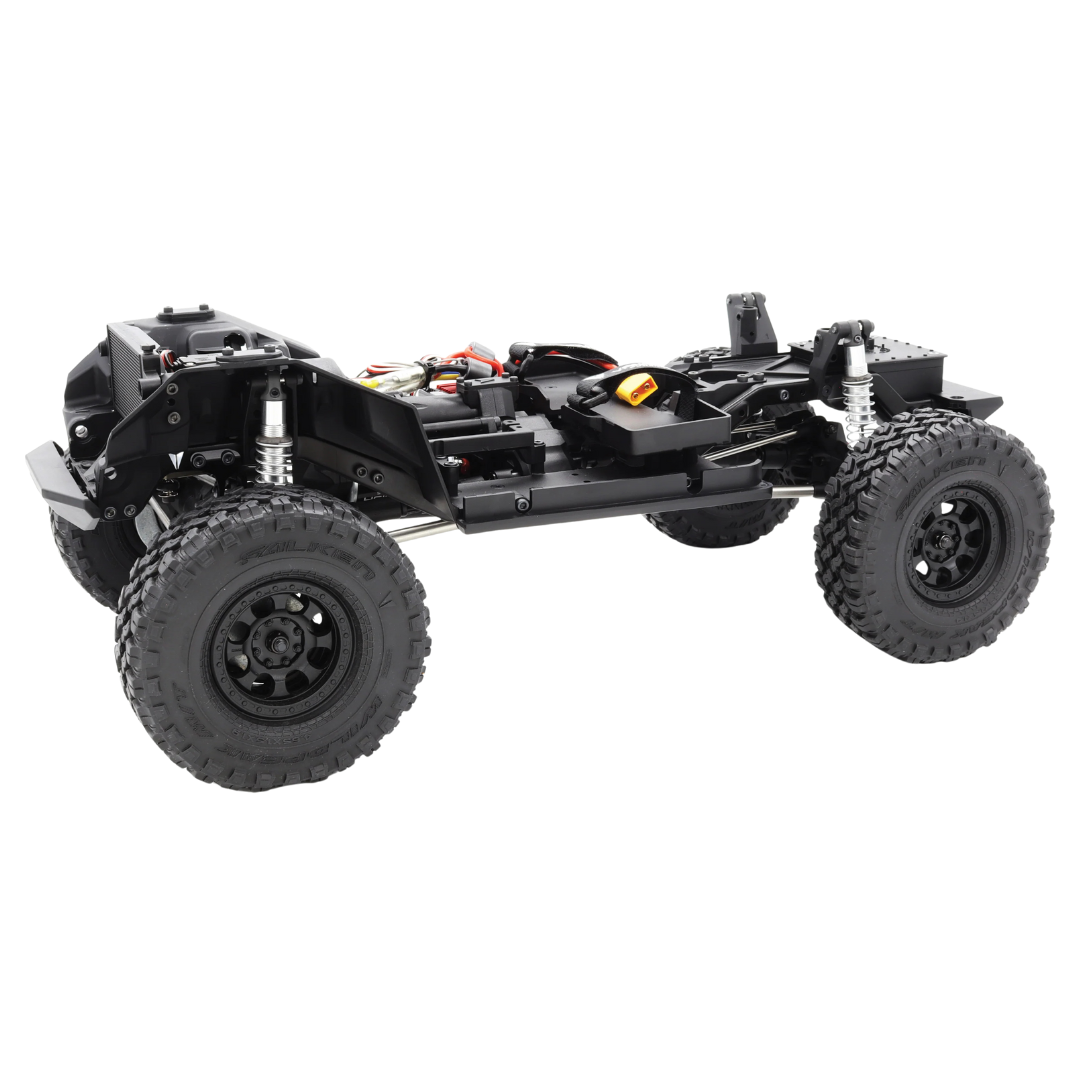

• Heavy duty stainless steel links with high clearance geometry
• 49 degrees of steering via chromoly universal axle shafts
• S8E shocks with dual O-ring cartridges and threaded bodies
• Hidden body clip system with hinged front for quick access
• 1.9 Falken Wildpeak M/T tyres with white compound for superior grip

Specifications

• Scale: 1/10
• Wheelbase: 313mm
• Overall width: 250mm
• Overall height: 250mm
• Axle gear ratio: 5.25:1
• Pinion/Spur: 15T/52T
• Portal gear ratio: 1.4:1
• Overall front ratio (6.5% OD): 53.7:1
• Overall rear ratio: 57.3:1
• RTR weight (without battery): 2.85kg

Includes

• Fully assembled VS4-10 Phoenix Portal RTR
• Metallic green painted cab and bedsides with VRD1 rear cage
• 1.9 Incision KMC KM237 Hex Beadlock wheels
• 1.9 Falken Wildpeak M/T tyres (white compound)
• VT-1 4-channel digital transmitter
• VE-1 3S capable ESC
• VM-1 35T brushed motor
• VS-1 metal gear servo

Important Notes

• Requires 2–3S LiPo or 6-cell NiMH battery with XT60 plug (not included)
• Requires compatible charger for chosen battery (not included)
• Requires 4x AA batteries for transmitter (not included)
