Vanquish VS4-10 Portal Axle Builders Kit 1/10 Rock Crawler VPS09023

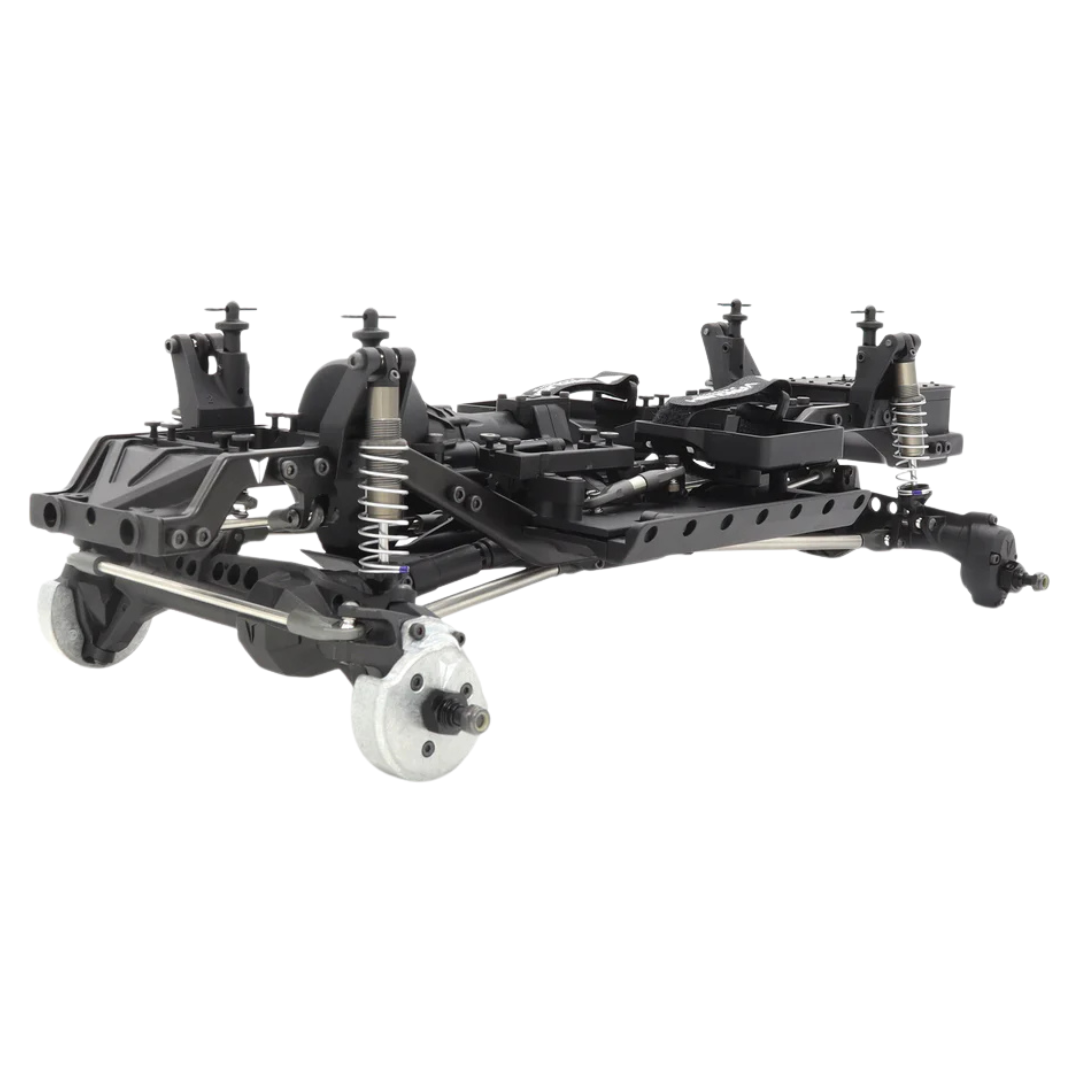

The Vanquish VS4-10 Portal Axle Builders Kit is an unassembled 1/10 scale RC rock crawler chassis kit for experienced builders wanting a premium portal axle platform with VFD Twin transmission control and high-clearance crawler performance.

This VS4-10 kit combines the Vanquish VFD Twin transmission, F10 portal axles, ISD10 driveshafts and SC8E Incision 80mm shocks into a high-spec crawler foundation. The kit is designed for custom builds where the owner chooses their own electronics, body, wheels, tyres and scale finishing parts.

Features

• Unassembled Builders Kit: Supplied as a high-quality chassis kit for custom 1/10 crawler builds

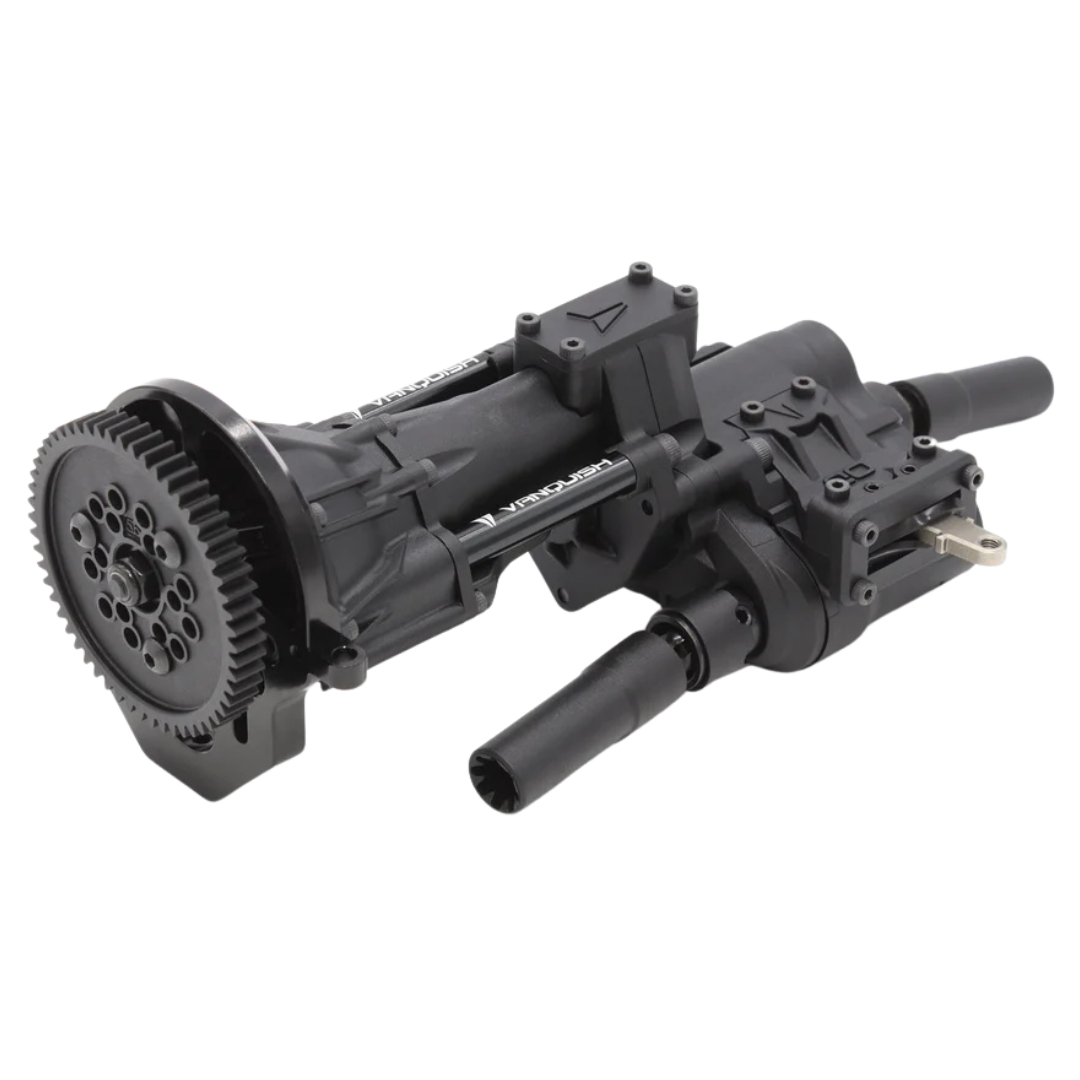

• VFD Twin Transmission: Provides selectable overdrive with 6.5 percent standard overdrive, 46 percent high overdrive and 3-position dig functionality

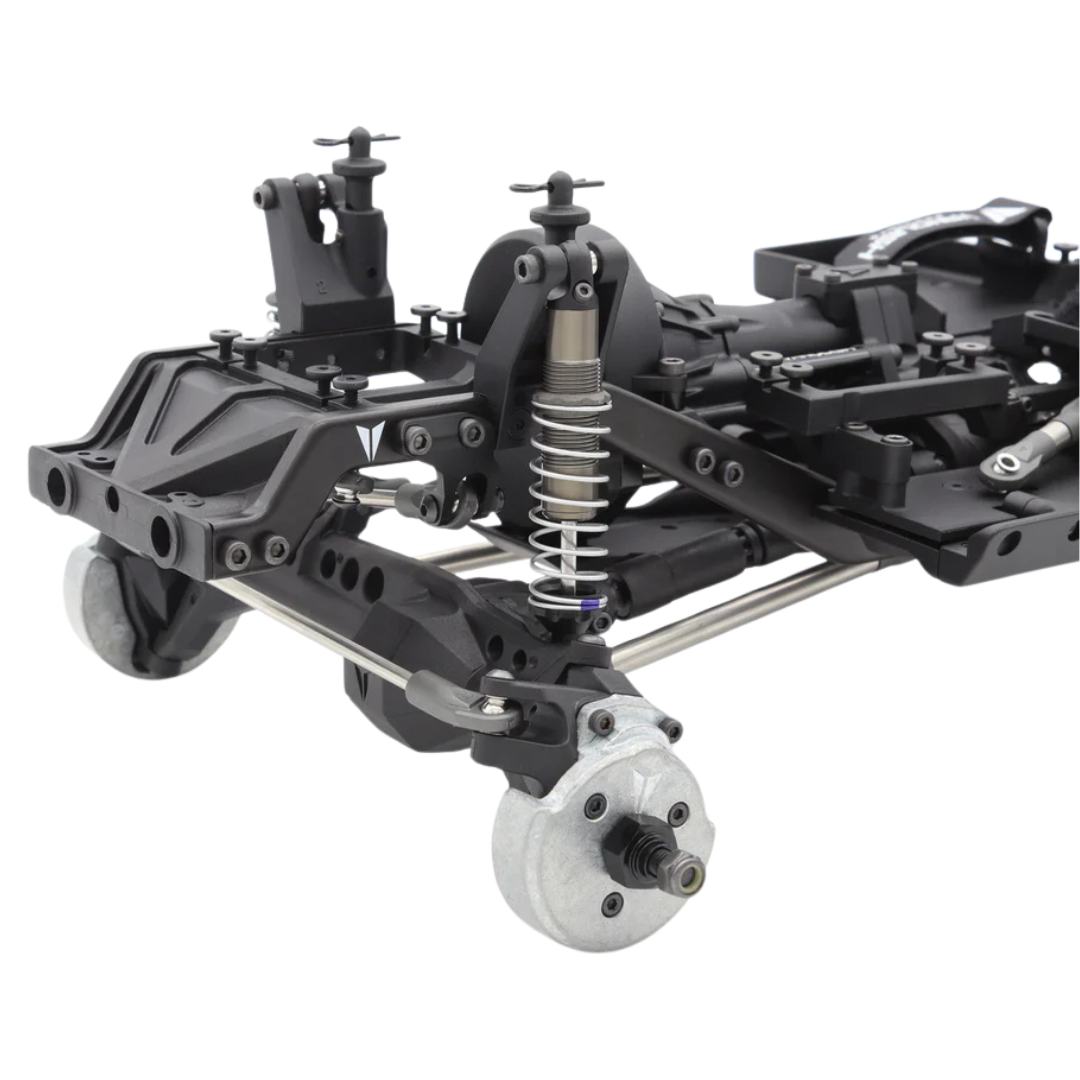

• F10 Portal Axles: Portal axle design improves ground clearance for technical crawling and trail use
• Brass And Alloy Axle Weight: F10 portal axles include brass axle tube inserts and heavy alloy portal knuckle weights for improved low-mounted weight distribution
• ISD10 Driveshafts: Machined CV-style joints support smooth torque delivery through the drivetrain

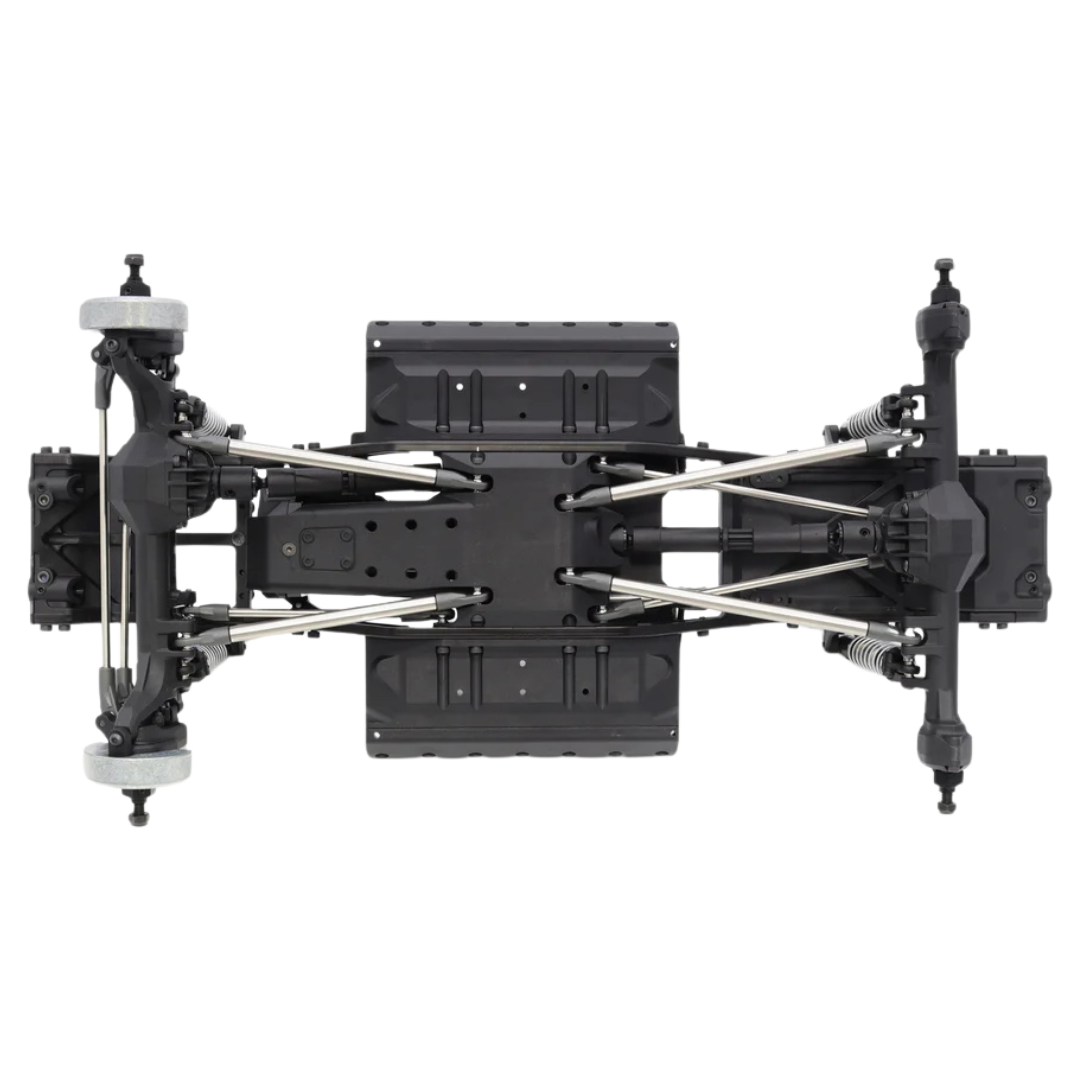

• Steel C-Channel Chassis: Heavy-duty chassis rails with moulded crossmembers provide a strong crawler foundation
• SC8E Incision Shocks: 80mm hard-anodised aluminium shocks with bleeder screw caps support crawler suspension tuning
• Stainless Steel Links: Stainless links and pivot balls provide durable suspension and steering geometry
• 540 Motor Compatibility: Designed to suit most 540 brushed and brushless motors when paired with suitable electronics
• Custom Build Platform: Allows builders to choose their preferred motor, ESC, servos, radio gear, battery, wheels, tyres, body and bumpers

Specifications

• Brand: Vanquish Products
• Model: VS4-10 Builders Kit Portal Axle
• SKU: VPS09023
• Product Type: RC rock crawler builders kit
• Build Level: Unassembled kit
• Scale: 1/10
• Vehicle Type: Electric RC rock crawler
• Drive System: 4WD
• Wheelbase: 313 mm, 12.3 inches
• Width Hex-To-Hex: 200 mm, 7.87 inches
• Transmission: VFD Twin transmission
• Axles: F10 portal axles
• Driveshafts: ISD10 driveshafts with CV-style joints
• Shocks: SC8E Incision 80mm aluminium shocks
• Axle Gear Ratio: 5.25:1
• Pinion Gear: 15T
• Spur Gear: 52T 32P
• Overall Front Ratio Standard Overdrive: 53.7:1 at 6.5 percent overdrive
• Overall Front Ratio High Overdrive: 35.8:1 at 46 percent overdrive
• Overall Rear Ratio: 57.2:1
• Motor Compatibility: Most 540 brushed and brushless motors, manufacturer listed
• Recommended Wheels: 1.9 inch wheels, required separately
• Recommended Tyres: 1.9 inch tyres, required separately
• Barcode: 5051294200541, retailer listed

Includes

• 1 x Vanquish VS4-10 portal axle builders kit
• 1 x VFD Twin transmission assembly
• 1 x F10 portal axle set with brass and alloy components
• 1 x ISD10 driveshaft set
• 1 x SC8E Incision 80mm shock set
• 1 x Threadlock
• 1 x Grease
• 1 x 30wt shock oil
• 1 x 7mm to 8mm thin-wall wheel nut adapter tool
• 1 x 20mm servo horn

FAQ

Is the Vanquish VPS09023 ready to run? No. The Vanquish VPS09023 is an unassembled builders kit and requires electronics, battery, charger, wheels, tyres, body, bumpers, tools and paint to complete.

What electronics are required? The VS4-10 Portal Axle Builders Kit requires an ESC, 540 motor, steering servo, battery, transmitter and receiver. Full VFD Twin dig and overdrive functionality also requires two additional standard-size or low-profile servos, two 24mm servo horns and a 4-channel radio system.

What wheelbase is the VS4-10 Portal Axle Builders Kit? The Vanquish VPS09023 kit has a 313 mm wheelbase, which is approximately 12.3 inches.

Does the kit include wheels and tyres? No. Wheels and tyres are not included. OZRC recommends choosing suitable 1.9 crawler wheels and tyres for the body and terrain you plan to use.

Important Notes

• Unassembled kit. Building, setup and tuning are required.
• Requires ESC, motor, steering servo, battery, charger, transmitter and receiver.
• Requires wheels, tyres, body, bumpers, paint and tools to complete.
• Full VFD Twin functionality requires extra servos and a suitable 4-channel radio system.
• Compatible with most 540 brushed and brushless motors, but motor, ESC and gearing must be matched carefully.
• The transmission dust shield is not fully element-proof. Regularly inspect the transmission for debris and re-grease as needed.
• Check all fasteners, driveshafts, links, shocks and drivetrain parts during assembly and after initial running.
• Use threadlock where appropriate for metal-to-metal screws, avoiding contact with plastic parts.
