Vanquish Products VS4-10 Phoenix Portal 1/10 RTR Toyo Crawler VPS09025

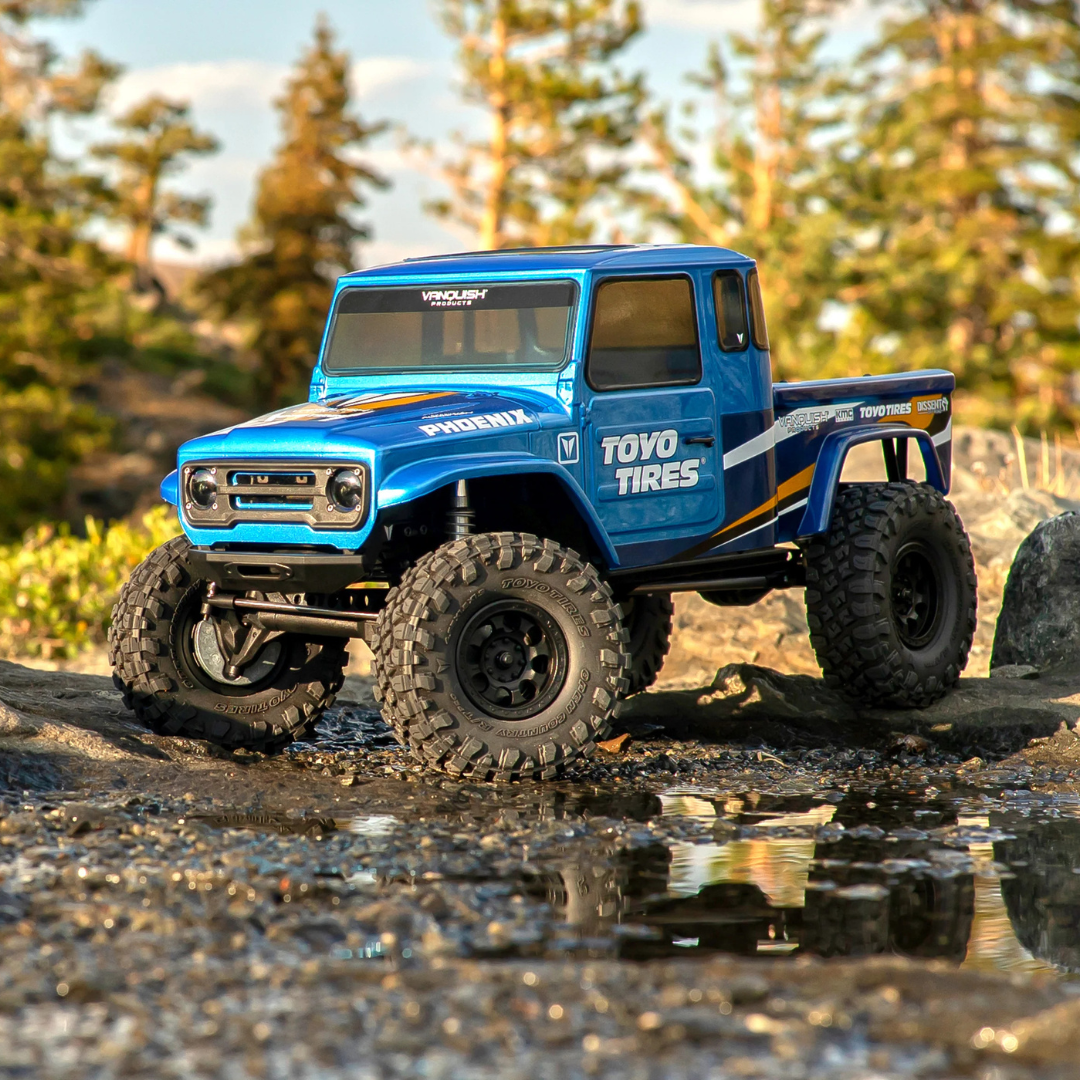

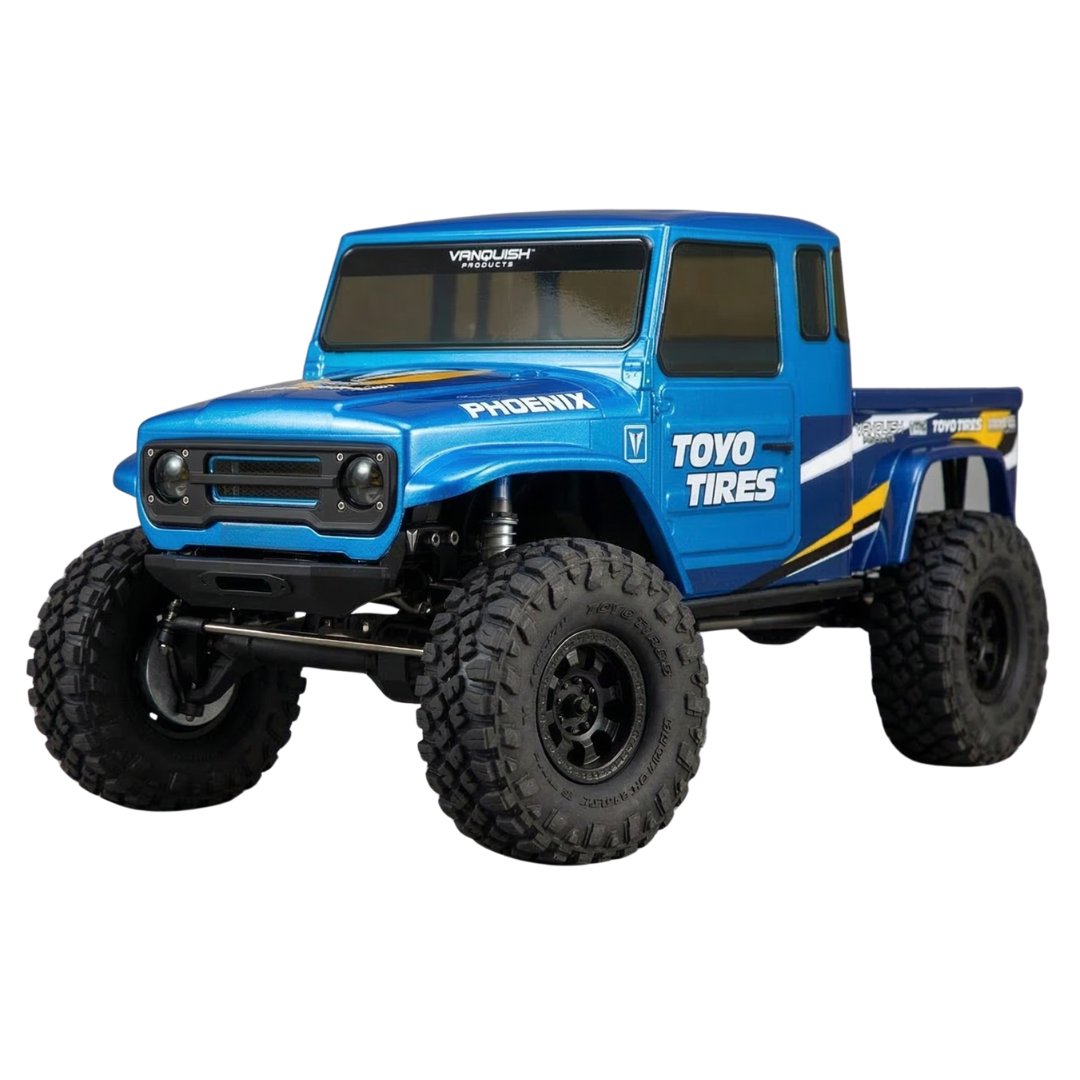

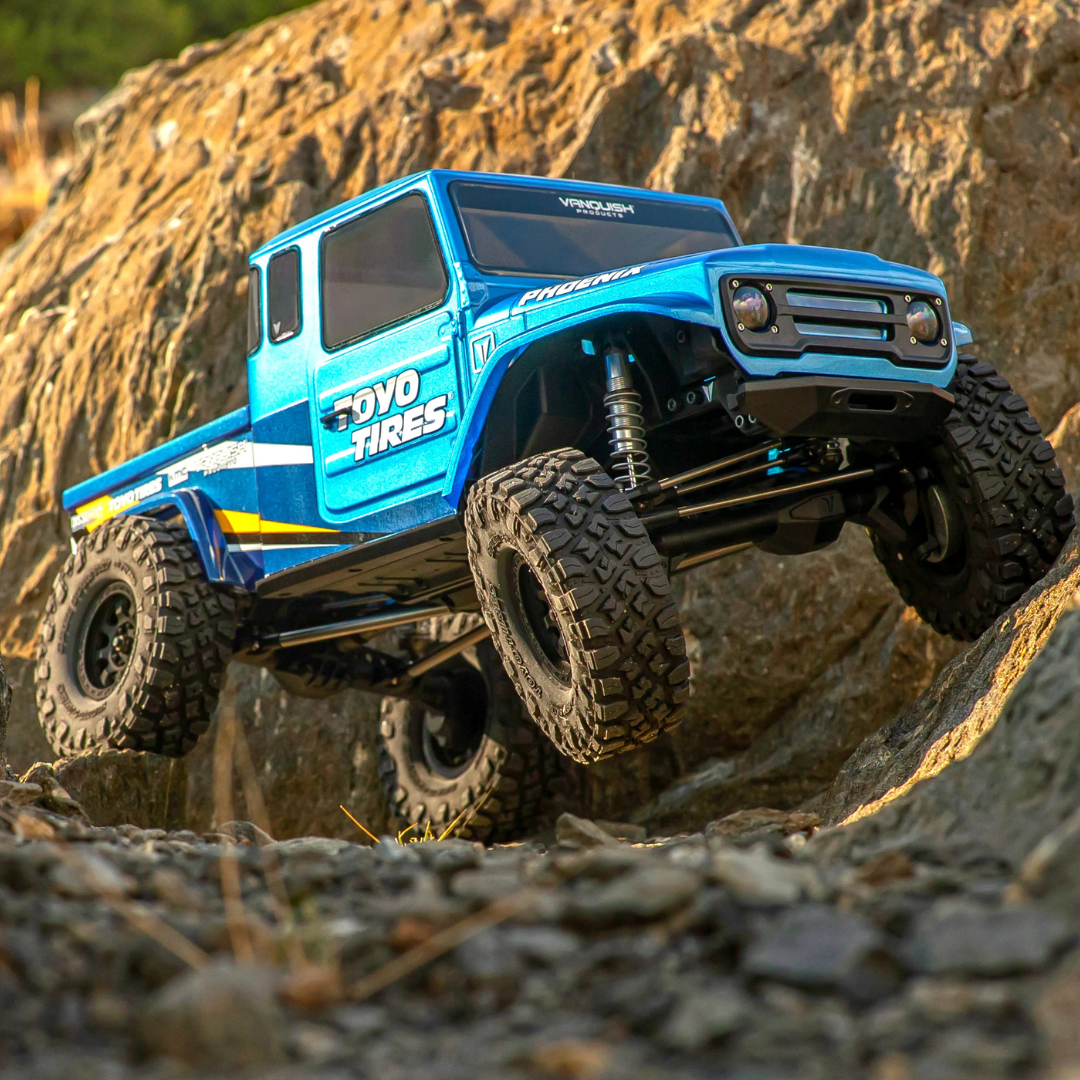

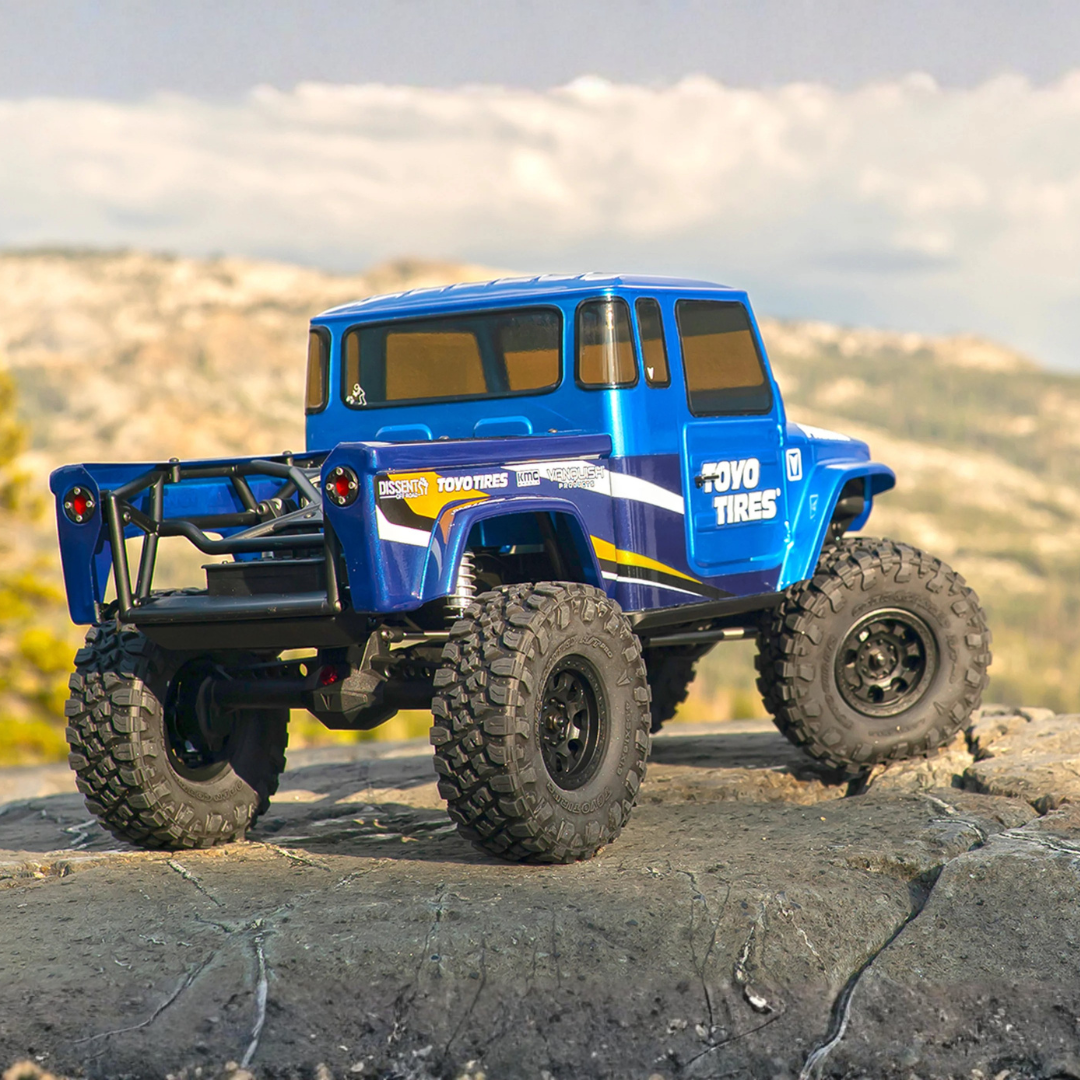

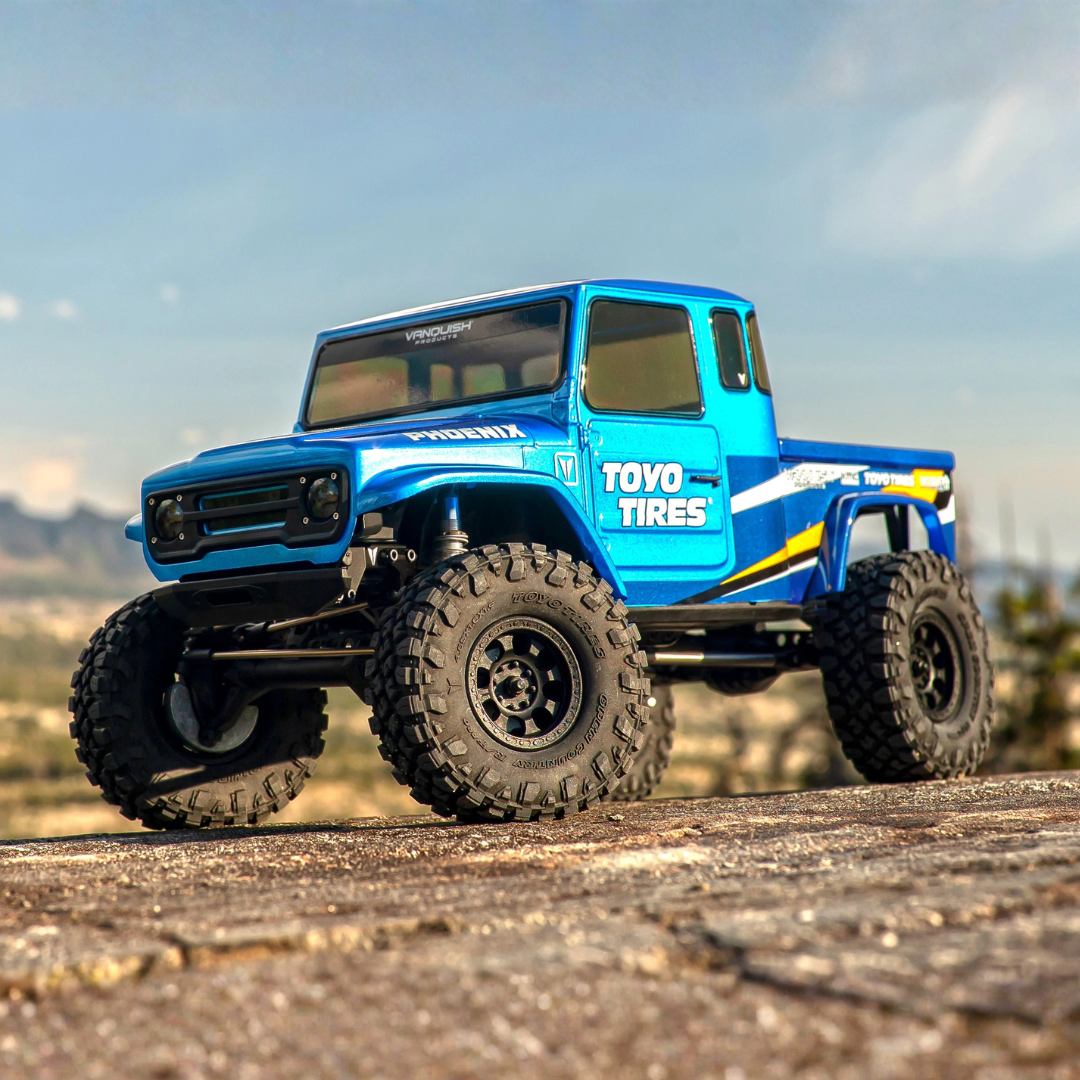

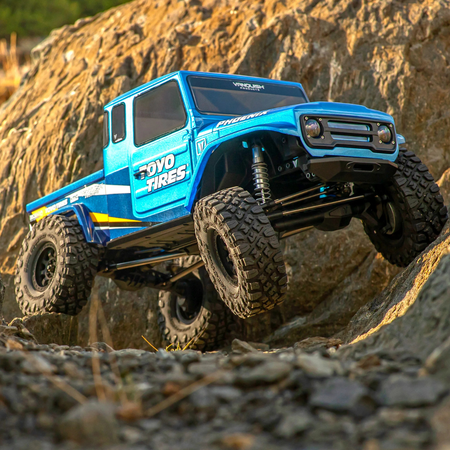

The Vanquish Products VS4-10 Phoenix Portal RTR Toyo Edition is a 1/10 scale ready-to-run RC crawler for trail driving and rock crawling, giving drivers a detailed Toyo-themed Phoenix platform with portal axles, beadlock wheels and proven Vanquish drivetrain hardware.

This Toyo Edition combines officially licensed Toyo Tires Open Country R/T Pro tyres, Toyo graphics and 1.9 Incision KMC KM237 Hex beadlock wheels with the VS4-10 Phoenix Portal chassis. The RTR package includes the installed brushed electronics and VT-1 4-channel transmitter, making it suitable for crawler drivers who want a capable trail truck without building a kit from scratch.

Features

• Official Toyo Edition: Features licensed Toyo Tires Open Country R/T Pro white compound tyres and Toyo graphics
• VFD Spec Transmission: Uses a forward and low motor layout with 6.5% overdrive for improved climbing and tighter turning

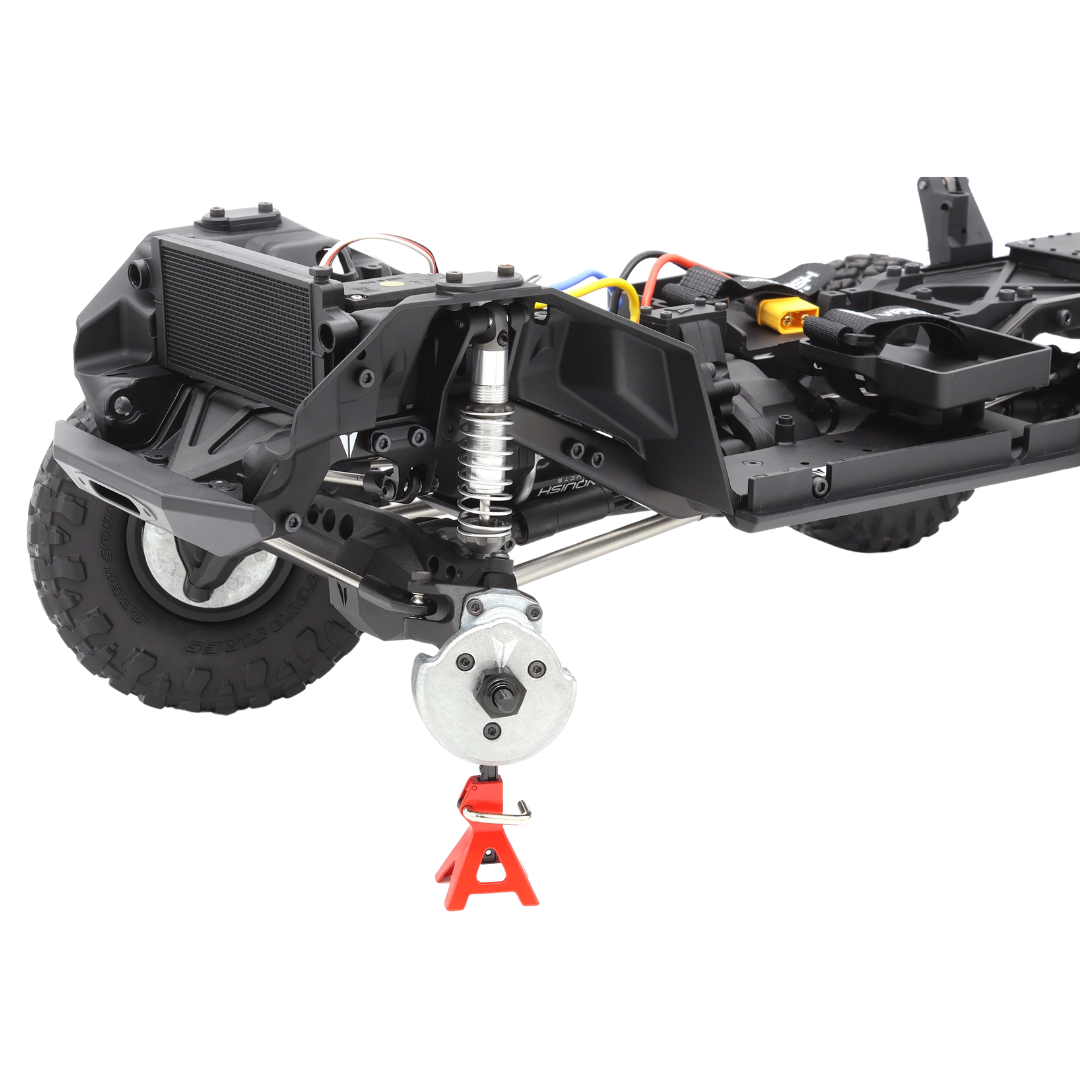

• F10 Portal Axles: High-clearance portal axle design with machined gears, knuckle weights and brass tube inserts for weight placed low on the vehicle
• VT-1 Digital 4-Channel Transmitter: Includes 15 model memory, multi-channel end point adjustment and additional channels for optional accessories
• VE-1 ESC: 3S LiPo capable brushed ESC with adjustable drag brake and LiPo cut-off settings
• VM-1 35T Brushed Motor: Closed endbell brushed motor tuned for the VS4-10 RTR platform
• VS-1 Metal Gear Servo: Water resistant steering servo with 200oz-in torque and metal gears

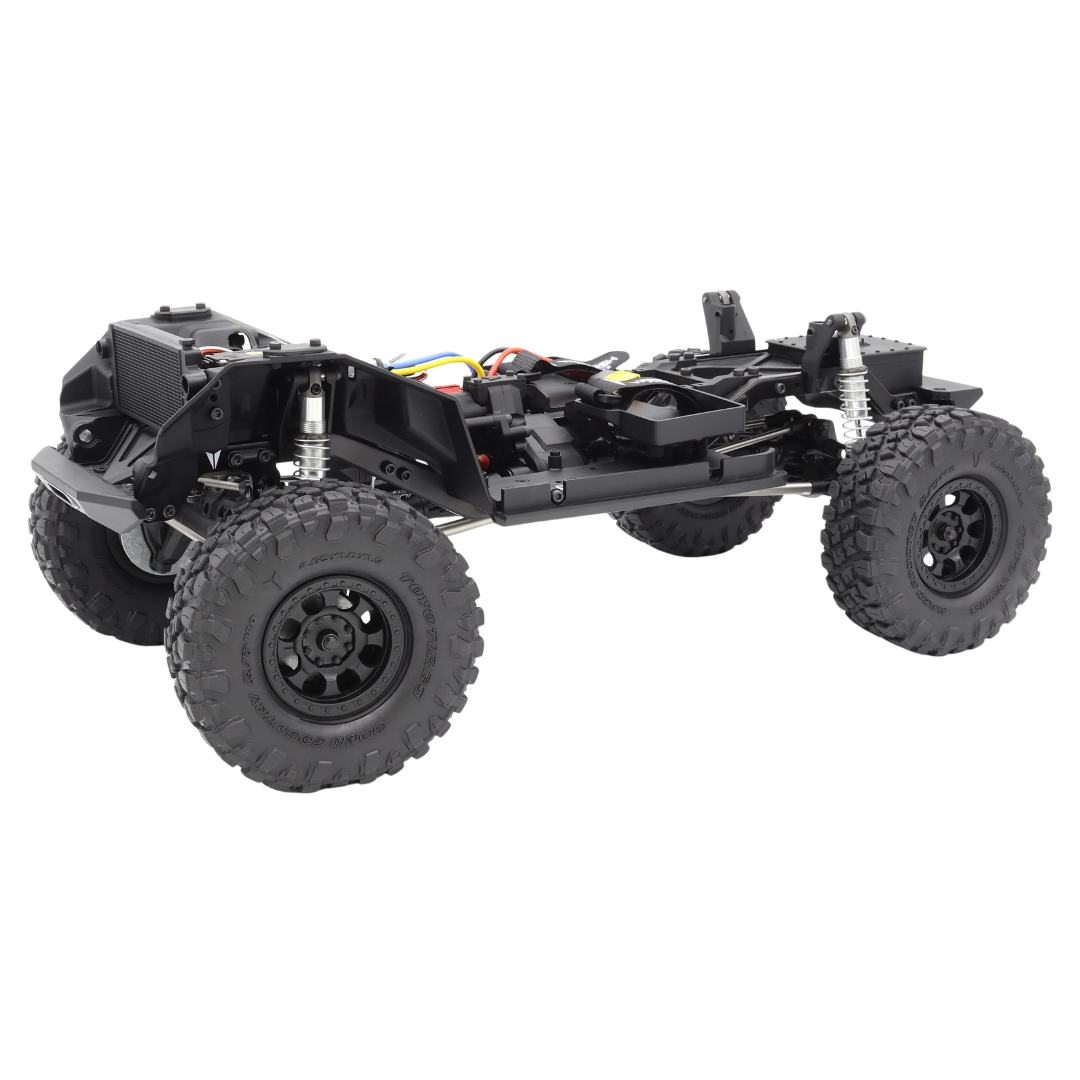

• Heavy Duty Steel C-Channel Chassis: Provides a strong scale chassis base with moulded cross members and integrated battery and electronics mounting positions
• S8E Oil-Filled Shocks: 80mm shocks with 8mm bore aluminium threaded bodies, dual O-ring cartridges and adjustable preload collars
• Chromoly Universal Axle Shafts: Allow up to 49 degrees of steering angle for technical crawling and trail manoeuvrability
• Hidden Body Clip System: Hinged body design with quick release front pivot pin for clean scale appearance and easier access
• 1.9 Beadlock Wheel Package: Includes Incision KMC KM237 Hex beadlock wheels for secure tyre mounting and scale detail

Specifications

• Brand: Vanquish Products
• Model: VS4-10 Phoenix Portal RTR Toyo Edition
• Part Number: VPS09025
• Product Type: Ready-to-run RC crawler
• Scale: 1/10
• Drive System: 4WD portal axle trail crawler
• Transmission: VFD Spec transmission with 6.5% overdrive
• Axles: F10 portal axles
• Axle Gear Ratio: 5.25:1
• Portal Gear: 20T / 28T
• Pinion / Spur: 15T / 52T

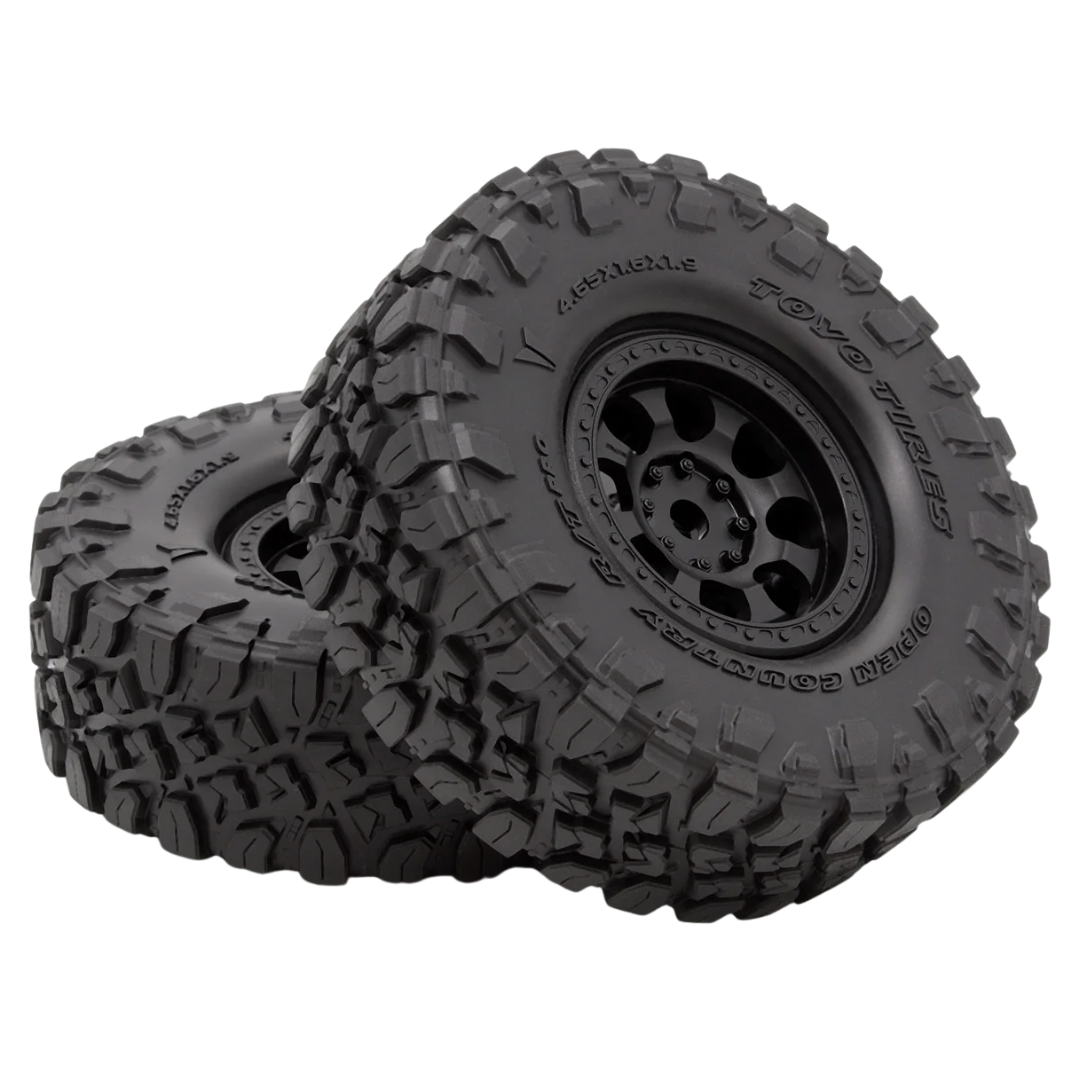

• Tyres: Toyo Tires Open Country R/T Pro white compound 4.65 x 1.9 inch
• Wheels: 1.9 Incision KMC KM237 Hex beadlock wheels
• Overall Width: 250mm
• Overall Height: 250mm
• Wheelbase: 313mm
• Front Overall Ratio: 53.7:1 with 6.5% overdrive
• Rear Overall Ratio: 57.3:1
• Front Axle Width Pin To Pin: 190mm
• Rear Axle Width Pin To Pin: 188mm
• RTR Weight Without Battery: Approximately 2.7kg to 2.85kg
• ESC: VE-1 3S capable brushed ESC with XT60 connector
• Motor: VM-1 35T brushed motor
• Servo: VS-1 metal gear steering servo
• Radio System: VT-1 digital 4-channel transmitter
• Battery Compatibility: 2S to 3S LiPo or 6-cell NiMH battery with XT60 connector
• Maximum Battery Size: 35 x 35 x 100mm with XT60 plug
• Intended Use: Trail driving, rock crawling and scale RC crawler use

Includes

• 1 x Vanquish Products VS4-10 Phoenix Portal RTR Toyo Edition vehicle
• 1 x VT-1 digital 4-channel transmitter
• 1 x Pre-installed VE-1 3S capable brushed ESC with XT60 connector
• 1 x Pre-installed VM-1 35T brushed motor
• 1 x Pre-installed VS-1 metal gear steering servo
• 1 x Set of 1.9 Incision KMC KM237 Hex beadlock wheels
• 1 x Set of Toyo Tires Open Country R/T Pro white compound tyres
• 1 x Set of S8E oil-filled shocks
• 1 x Set of ISD10 driveshafts
• 1 x Product manual

FAQ

Is the Vanquish VS4-10 Phoenix Portal Toyo Edition ready to run? Yes. The vehicle is supplied assembled with the motor, ESC, servo and transmitter included, but a suitable battery, charger and transmitter AA batteries are required separately.

What battery does this crawler need? The VS4-10 Phoenix Portal RTR requires a 2S to 3S LiPo battery or 6-cell NiMH battery with an XT60 connector, with a recommended maximum battery size of 35 x 35 x 100mm.

Are the Toyo tyres officially licensed? Yes. The Toyo Edition uses officially licensed Toyo Tires Open Country R/T Pro white compound tyres and Toyo-themed graphics.

Does the transmitter support extra accessories? Yes. The included VT-1 4-channel transmitter has additional channels that can be used for compatible optional accessories such as a winch, light controller or dig setup.

Important Notes

• Battery is not included.
• Requires a 2S to 3S LiPo battery or 6-cell NiMH battery with XT60 connector.
• Compatible battery charger is required separately.
• Requires 4 x AA batteries for the transmitter, sold separately.
• Recommended maximum battery size is 35 x 35 x 100mm with XT60 plug.
• Check battery dimensions, connector type and charger compatibility before use.
• Follow safe charging, storage and handling practices for LiPo or NiMH batteries.
