Venom 2S 430mAh 7.4V 30C LiPo Battery SCX24 JST-PH 2.0 VEN-15206

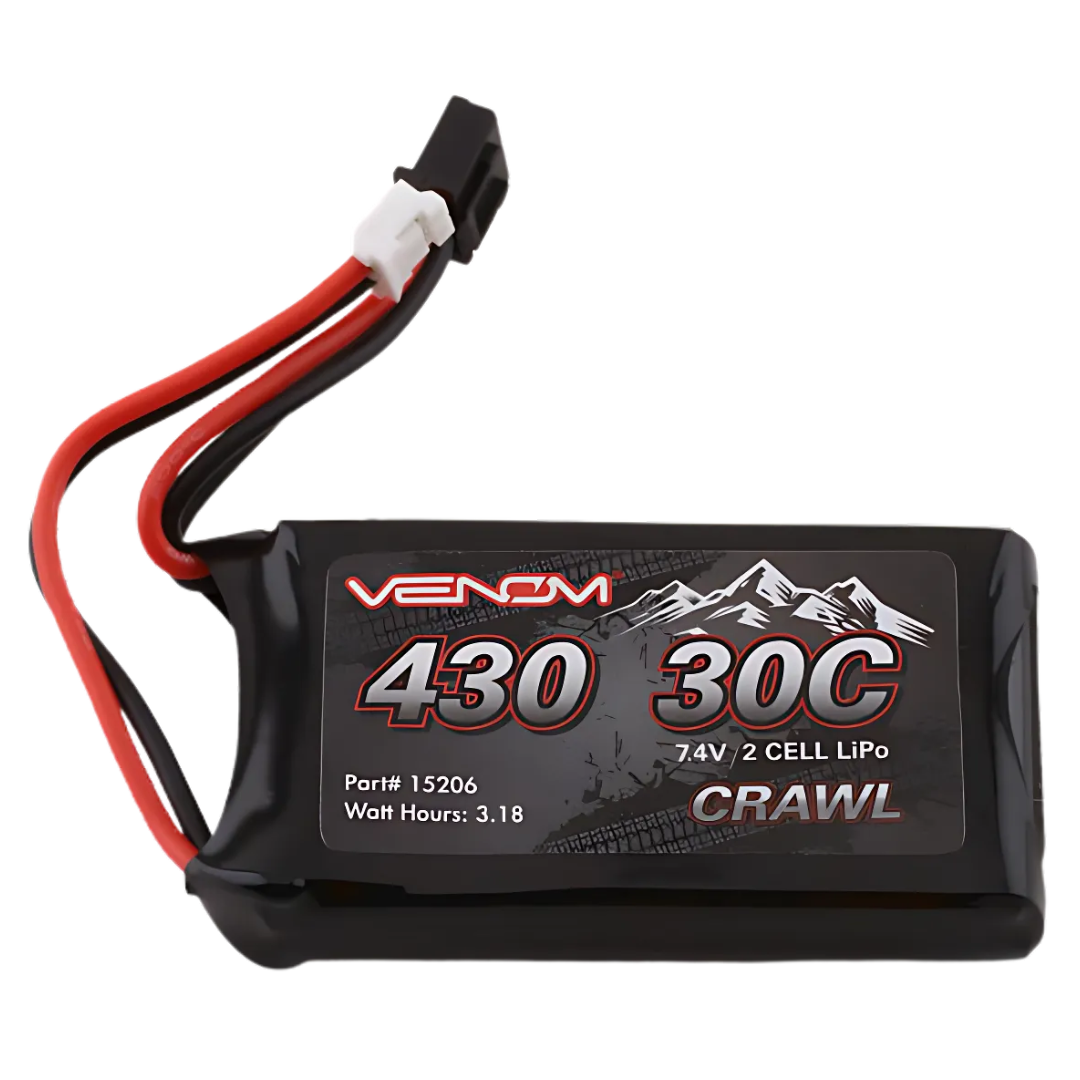

The Venom VEN-15206 is a compact 2S 430mAh 7.4V 30C LiPo battery designed for the Axial SCX24 1/24 RC crawler and other compatible micro RC applications requiring a JST-PH 2.0 connector.

Features

• Axial SCX24 Compatibility: Designed as a compact LiPo battery option for the Axial SCX24 1/24 RC crawler
• 430mAh Capacity: Compact battery capacity suited to micro RC applications
• 2S LiPo Configuration: Provides a nominal 7.4V output for compatible electronics
• 30C Continuous Discharge: Designed to provide consistent current delivery for compatible micro RC applications
• 60C Burst Rating: Provides additional short-duration discharge capability
• JST-PH 2.0 Connector: Compact connector suited to compatible micro RC electronics
• Compact Dimensions: Measures approximately 53 x 31 x 9.5mm for small battery compartments
• 20 AWG Wiring: Uses 20 AWG battery wiring

Specifications

• Brand: Venom
• Product Type: RC LiPo battery
• Compatible Model: Axial SCX24
• Scale Application: 1/24
• Battery Chemistry: Lithium Polymer (LiPo)
• Cell Configuration: 2S1P
• Nominal Voltage: 7.4V
• Capacity: 430mAh
• Energy: 3.18Wh
• Maximum Continuous Discharge Rate: 30C
• Maximum Burst Discharge Rate: 60C
• Standard Charge Rate: 1C
• Maximum Charge Rate: 5C
• Maximum Charge Current: 1.5A
• Connector Type: JST-PH 2.0
• Balance Connector: JST-PH
• Wire Gauge: 20 AWG
• Dimensions: 53 x 31 x 9.5mm
• Manufacturer Part Number: 15206
• SKU: VEN-15206
• Barcode / UPC: 841850125013

Includes

• 1 x Venom 2S 430mAh 7.4V 30C LiPo battery with JST-PH 2.0 connector

FAQ

Does the Venom VEN-15206 fit the Axial SCX24? Yes. The Venom VEN-15206 is specifically listed for the Axial SCX24 1/24 scale RC crawler and uses a JST-PH 2.0 connector.

What size is the Venom VEN-15206 battery? The VEN-15206 measures approximately 53 x 31 x 9.5mm. OZRC recommends checking available battery space when using it in RC models other than the Axial SCX24.

What connector does the Venom VEN-15206 use? The Venom VEN-15206 uses a JST-PH 2.0 main connector and is specified with a JST-PH balance connector.

Can VEN-15206 be used in other micro RC models? The VEN-15206 may be suitable for other RC models that support a 2S 7.4V LiPo battery, JST-PH 2.0 connection and its 53 x 31 x 9.5mm dimensions. Check voltage, connector polarity and available battery space before use.

Important Notes

• Use only a LiPo-compatible balance charger with the correct battery settings
• Confirm the RC model and ESC support a 2S 7.4V LiPo battery before use
• Check connector type and polarity before connecting the battery
• Do not puncture, crush, short circuit, overcharge or over-discharge LiPo batteries
• Never leave a LiPo battery unattended while charging
• Store the battery at an appropriate LiPo storage voltage when not being used for an extended period
