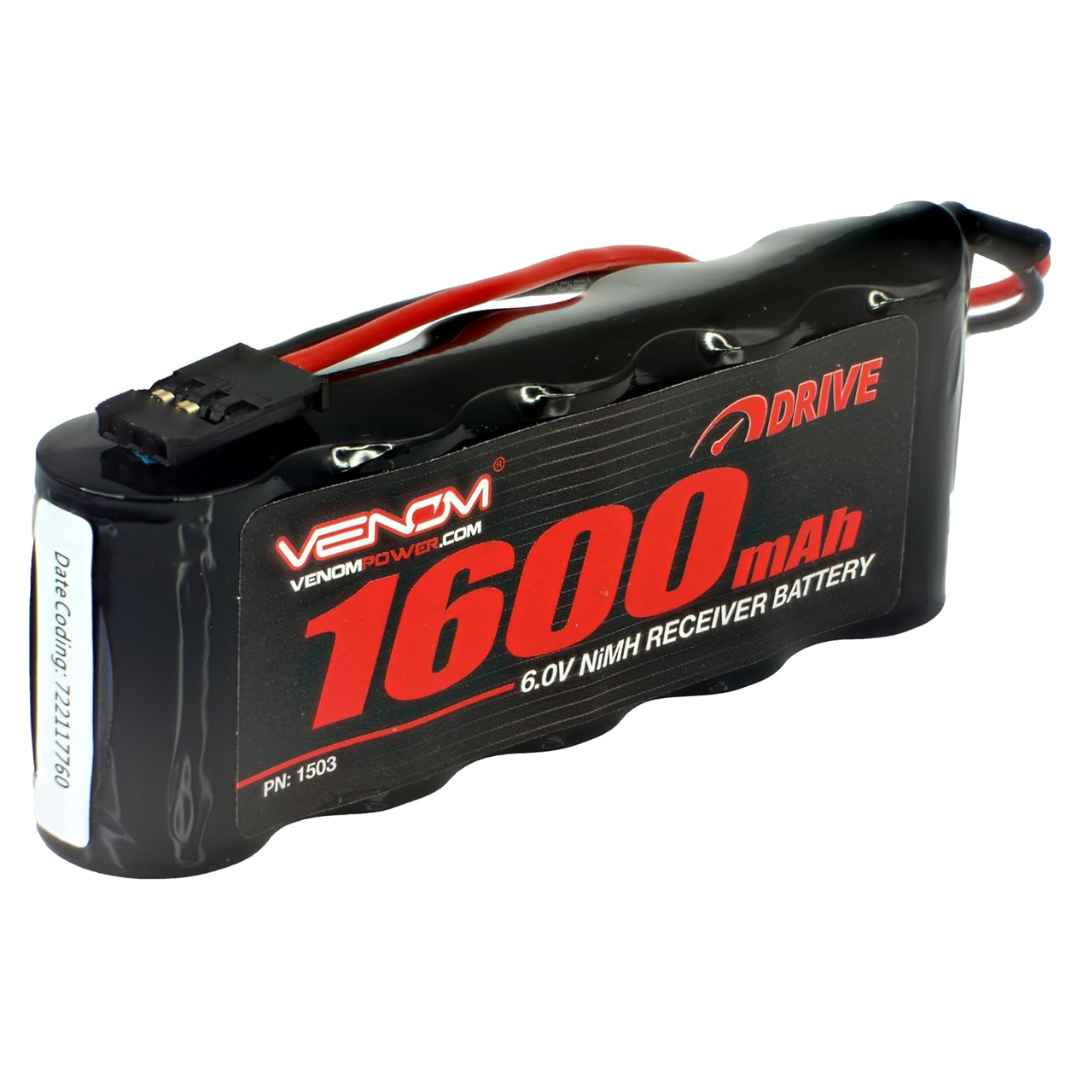

Venom 6V 1600mAh 5-Cell Flat RC Receiver NiMH Battery FUT VEN-1503
Couldn't load pickup availability
The Venom VEN-1503 is a 6V 1600mAh 5-cell flat NiMH receiver battery designed to power compatible RC car, truck and boat receiver systems, with a compact flat-pack configuration and universal receiver connector for straightforward installation.
Features
- Receiver Battery: Designed to provide 6V power to compatible RC receiver systems
- 1600mAh Capacity: Rechargeable NiMH pack for compatible receiver and onboard electronics applications
- 5-Cell Flat Pack: Compact flat configuration measuring approximately 84.8 x 29 x 15mm
- Universal Receiver Plug: Pre-installed receiver connector for compatible RC radio systems
- 22 AWG Wiring: Uses soft and flexible low-resistance silicone wire
- NiMH Chemistry: Rechargeable Nickel Metal Hydride construction
- 1C Charge Rate: Maximum specified charge rate of 1.6A
- RC Surface and Marine Use: Designed for compatible RC car, truck and boat receiver applications
Specifications
- Brand: Venom
- Product Type: RC receiver battery
- Battery Chemistry: Nickel Metal Hydride (NiMH)
- Capacity: 1600mAh
- Voltage: 6.0V
- Cell Count: 5 cells
- Configuration: 5-cell flat pack
- Charge Rate: 1C / 1.6A
- Energy: 9.6Wh
- Connector Type: Universal receiver
- Wire Gauge: 22 AWG
- Wire Type: Soft flexible low-resistance silicone wire
- Dimensions: 84.8 x 29 x 15mm
- Weight: 120g
- Manufacturer Part Number: 1503
- SKU: VEN-1503
- UPC: 873067006779
Includes
- 1 x Venom 6V 1600mAh 5-cell flat receiver NiMH battery with universal receiver plug
FAQ
What is the Venom VEN-1503 designed for? The Venom VEN-1503 is a 6V NiMH receiver battery designed for compatible RC car, truck and boat receiver systems.
What size is the Venom VEN-1503 receiver battery? The VEN-1503 measures approximately 84.8 x 29 x 15mm and weighs 120g. OZRC recommends checking the available receiver battery compartment dimensions before ordering.
What connector does the Venom VEN-1503 use? Venom specifies the VEN-1503 with a universal receiver connector on 22 AWG silicone wire. It is also commonly described by Australian RC retailers as a FUT plug receiver battery.
What charger does the Venom VEN-1503 require? The VEN-1503 requires a charger suitable for 6V NiMH battery packs. Venom specifies a maximum charge rate of 1C or 1.6A.
Important Notes
- Use only a charger and charging mode suitable for NiMH batteries
- Maximum specified charge rate is 1C / 1.6A
- Check the 84.8 x 29 x 15mm dimensions against the available battery compartment before ordering
- Confirm the receiver and connected electronics are suitable for a 6V five-cell NiMH receiver battery
- Allow the battery to cool before recharging
