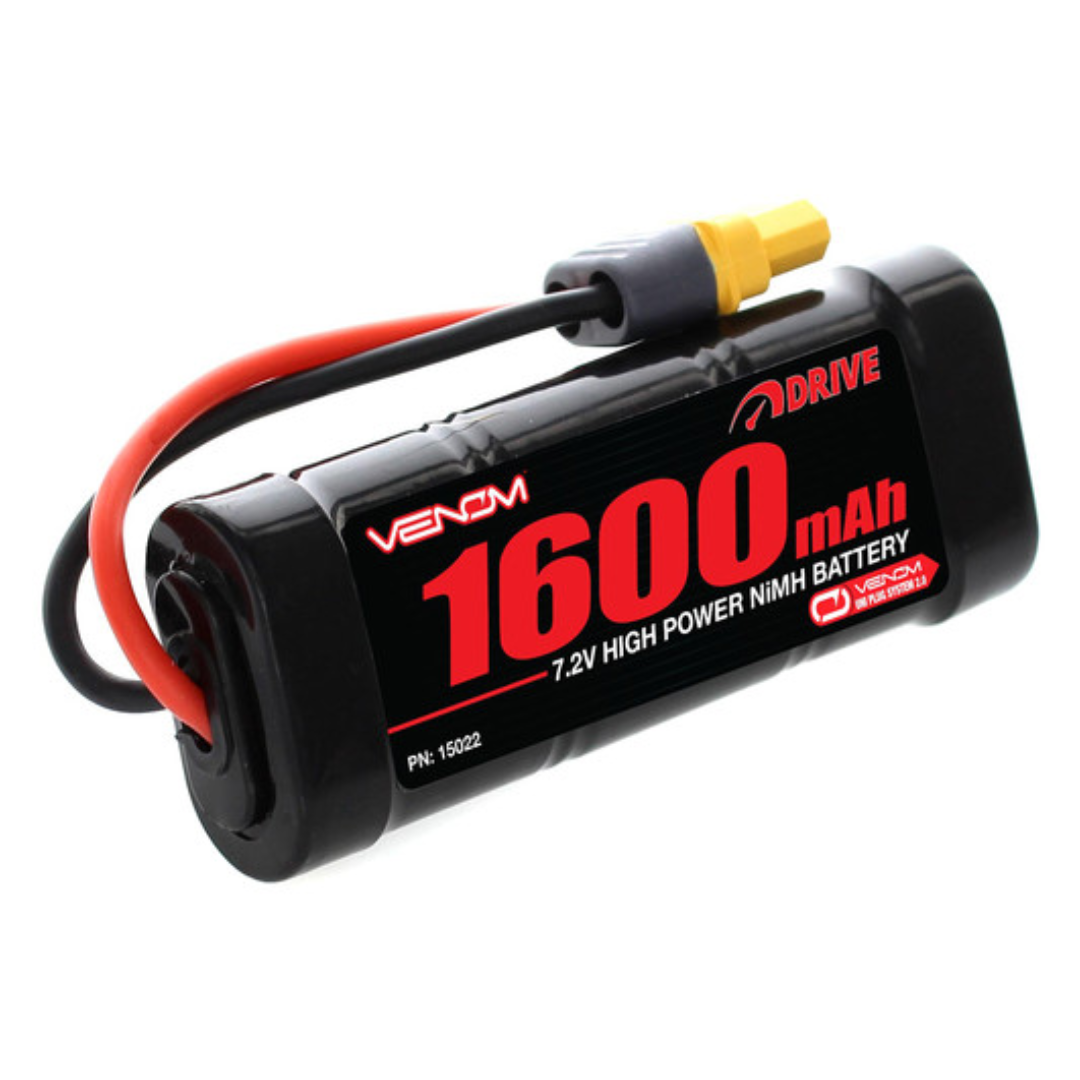

Venom 1600mAh 7.2V 6-Cell RC NiMH Battery UNI 2.0 VEN-15022

The Venom VEN-15022 is a compact 7.2V 1600mAh 6-cell NiMH battery designed for compatible RC vehicles, particularly 1/16 scale models and crawlers, with a UNI 2.0 connector system providing flexible connection options.

Features

• 1600mAh Capacity: Provides rechargeable power for compatible RC cars, trucks and crawlers
• 7.2V 6-Cell Configuration: Six-cell NiMH pack using 2/3A-size cells
• Compact Pack: Measures 93 x 35 x 19mm for compatible compact RC battery compartments

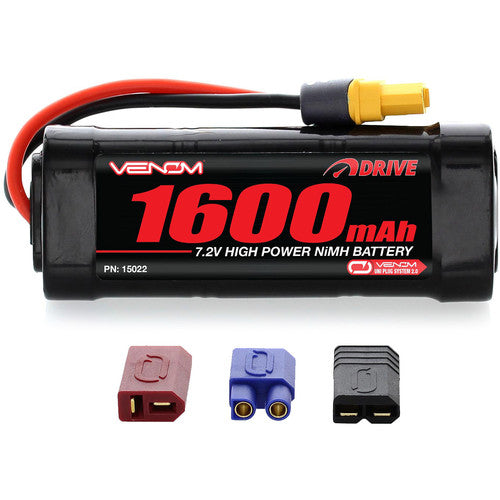

• UNI 2.0 Plug System: Provides compatibility with XT60, Traxxas Legacy, Deans/T-Style and EC3 connections using the appropriate UNI 2.0 configuration
• 16 AWG Wiring: Uses soft and flexible low-resistance silicone wire
• NiMH Chemistry: Rechargeable Nickel Metal Hydride battery for compatible RC applications
• 1C Charge Rate: Maximum specified charge rate of 1.6A

Specifications

• Brand: Venom
• Product Type: RC NiMH battery
• Battery Chemistry: Nickel Metal Hydride (NiMH)
• Cell Size: 2/3A
• Voltage: 7.2V
• Capacity: 1600mAh
• Cell Count: 6 cells
• Charge Rate: 1C / 1.6A
• Energy: 11.52Wh
• Wire Gauge: 16 AWG
• Wire Type: Soft flexible low-resistance silicone wire
• Connector System: Venom UNI 2.0 Land Plug System
• Connector Compatibility: XT60, Traxxas Legacy, Deans/T-Style and EC3
• Dimensions: 93 x 35 x 19mm
• Weight: 139g
• Manufacturer Part Number: 15022
• SKU: VEN-15022
• Barcode / UPC: 845623010650

Includes

• 1 x Venom 1600mAh 7.2V 6-cell NiMH battery with UNI 2.0 plug system

FAQ

What RC vehicles can use the Venom VEN-15022 battery? The Venom VEN-15022 is particularly suited to compatible 1/16 scale RC vehicles and RC crawlers. Fitment depends on the available 93 x 35 x 19mm battery space, voltage requirements and connector compatibility, so OZRC recommends checking these specifications against the vehicle before ordering.

What connectors are compatible with the Venom UNI 2.0 system? The UNI 2.0 Land Plug System uses an XT60 base connection and supports XT60, Traxxas Legacy, Deans/T-Style and EC3 connections using the appropriate UNI 2.0 configuration.

What charger does the Venom VEN-15022 require? The VEN-15022 requires a charger suitable for 7.2V NiMH batteries. Its specified maximum charge rate is 1C or 1.6A.

Is VEN-15022 a LiPo battery? No. The Venom VEN-15022 is a six-cell 7.2V Nickel Metal Hydride battery and must be charged using settings suitable for NiMH chemistry.

Important Notes

• Use only a charger and charging mode suitable for NiMH batteries
• Maximum specified charge rate is 1C / 1.6A
• Allow the battery to cool before recharging
• Check the 93 x 35 x 19mm dimensions against the vehicle's battery compartment before ordering
• Confirm the vehicle supports a 7.2V six-cell NiMH battery
• UNI 2.0 adaptors are not compatible with Traxxas NiMH-only chargers
