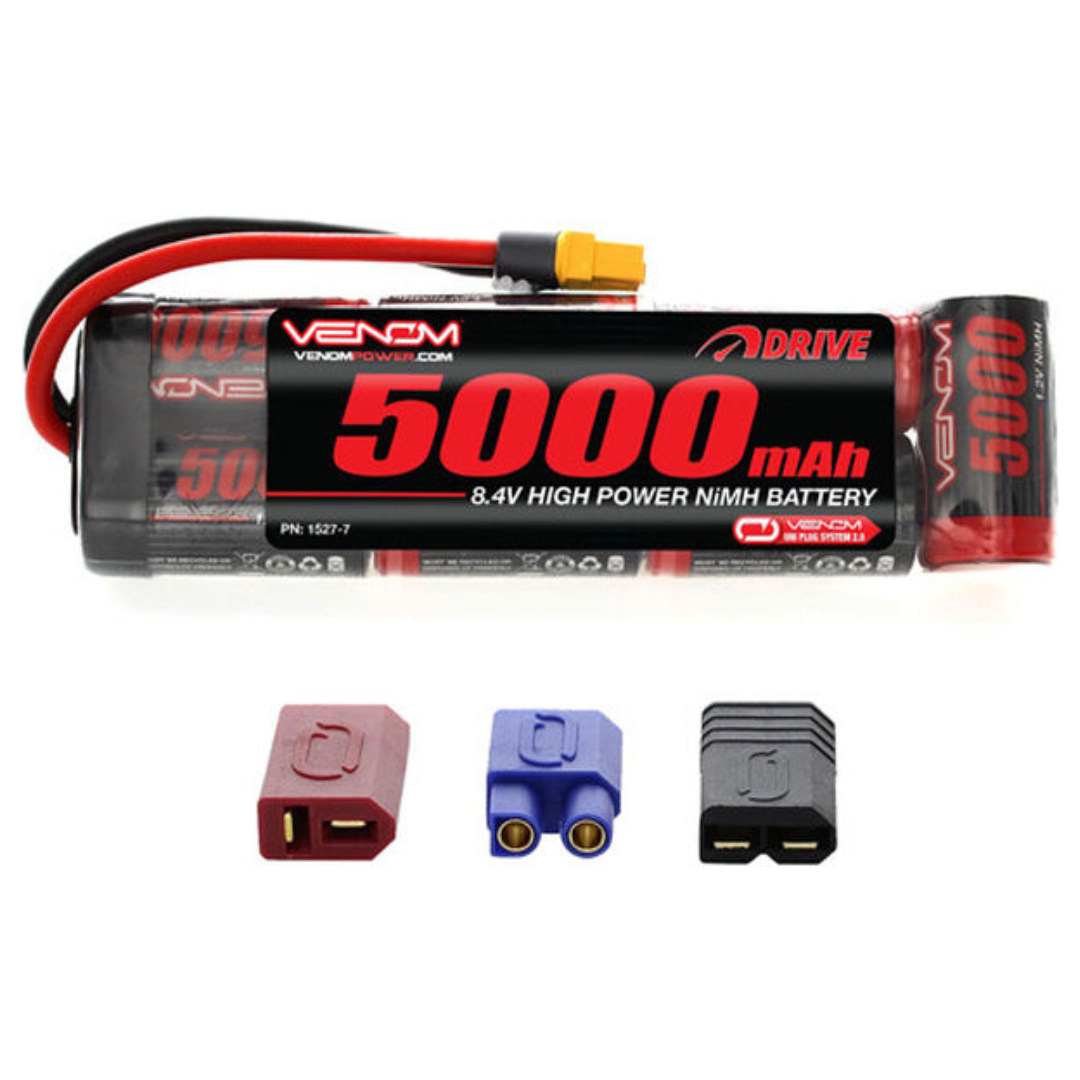

Venom 8.4V 5000mAh 7-Cell RC NiMH Flat Battery UNI 2.0 VEN-1527-7

The Venom VEN-1527-7 is an 8.4V 5000mAh 7-cell NiMH flat battery designed for compatible RC cars, trucks, buggies and boats, combining high capacity with the versatile UNI 2.0 connector system.

Features

• 5000mAh Capacity: High-capacity rechargeable battery for compatible RC surface and marine applications
• 8.4V 7-Cell Configuration: Seven-cell NiMH pack for RC vehicles designed to operate with an 8.4V battery
• Flat Pack Design: 7-cell flat configuration measuring approximately 155 x 45 x 23.8mm
• UNI 2.0 Connector System: Uses an XT60 base connector with plug adaptors for several popular RC connector types
• Multiple Connector Options: Supports XT60, Traxxas, Deans/T-Style and EC3 connections using the appropriate UNI 2.0 configuration
• 12 AWG Wiring: Uses soft and flexible low-resistance silicone wire
• 1C Charge Rate: Maximum specified charge rate of 5A
• 42Wh Energy Capacity: Combines 8.4V nominal voltage with 5000mAh capacity

Specifications

• Brand: Venom
• Product Type: RC NiMH battery
• Battery Chemistry: Nickel Metal Hydride (NiMH)
• Capacity: 5000mAh
• Voltage: 8.4V
• Cell Count: 7 cells
• Cell Configuration: 7-cell flat pack
• Charge Rate: 1C / 5A
• Energy: 42Wh
• Connector System: Venom UNI 2.0 Land Plug System
• Base Connector: XT60
• Connector Compatibility: XT60, Traxxas, Deans/T-Style and EC3
• Wire Gauge: 12 AWG
• Wire Type: Soft flexible low-resistance silicone wire
• Dimensions: 155 x 45 x 23.8mm
• Weight: 501g
• Manufacturer Part Number: 1527-7
• SKU: VEN-1527-7

Includes

• 1 x Venom 8.4V 5000mAh 7-cell NiMH flat battery with XT60 base connector
• 1 x Traxxas plug adaptor
• 1 x Deans/T-Style plug adaptor
• 1 x EC3 plug adaptor

FAQ

What RC vehicles can use the Venom VEN-1527-7 battery? The Venom VEN-1527-7 is designed for compatible RC cars, trucks, buggies and boats that support an 8.4V 7-cell NiMH battery. It is commonly suited to 1/10 scale brushed RC applications, but battery compartment size, voltage and connector compatibility should always be checked before use.

What connectors does the Venom VEN-1527-7 support? The UNI 2.0 system uses an XT60 base connector and provides adaptor compatibility with Traxxas, Deans/T-Style and EC3 connections.

What size is the Venom VEN-1527-7? The VEN-1527-7 measures approximately 155 x 45 x 23.8mm and weighs 501g. OZRC recommends checking the vehicle's battery compartment dimensions before ordering.

What charger does the VEN-1527-7 require? The VEN-1527-7 requires a charger suitable for 8.4V NiMH battery packs. Venom specifies a charge rate of 1C or 5A.

Important Notes

• Use only a charger and charging mode suitable for NiMH batteries
• Specified charge rate is 1C / 5A
• Confirm the RC vehicle supports an 8.4V 7-cell NiMH battery before use
• Check the 155 x 45 x 23.8mm dimensions against the available battery compartment before ordering
• Confirm connector compatibility before connecting the battery
• Allow the battery to cool before recharging
