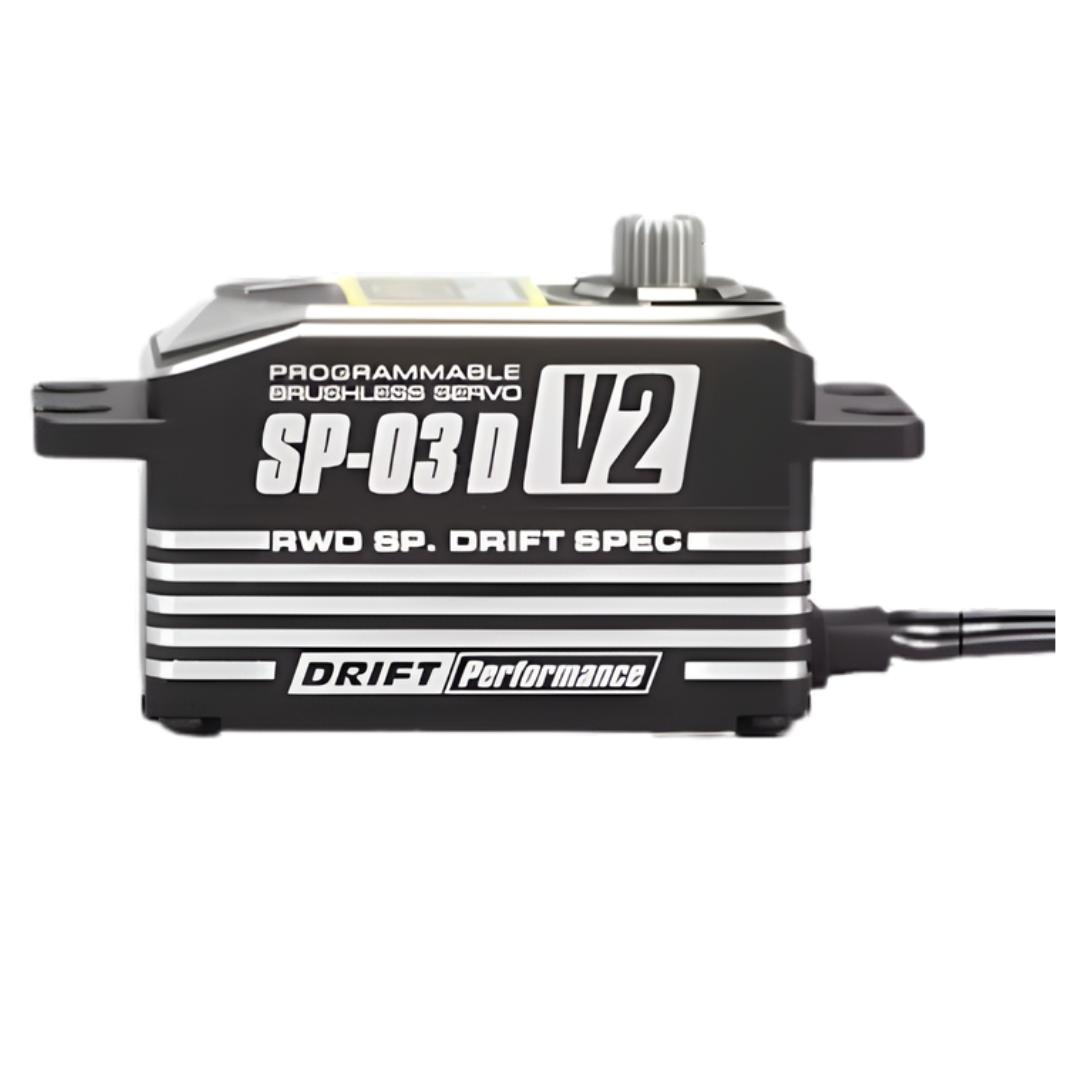

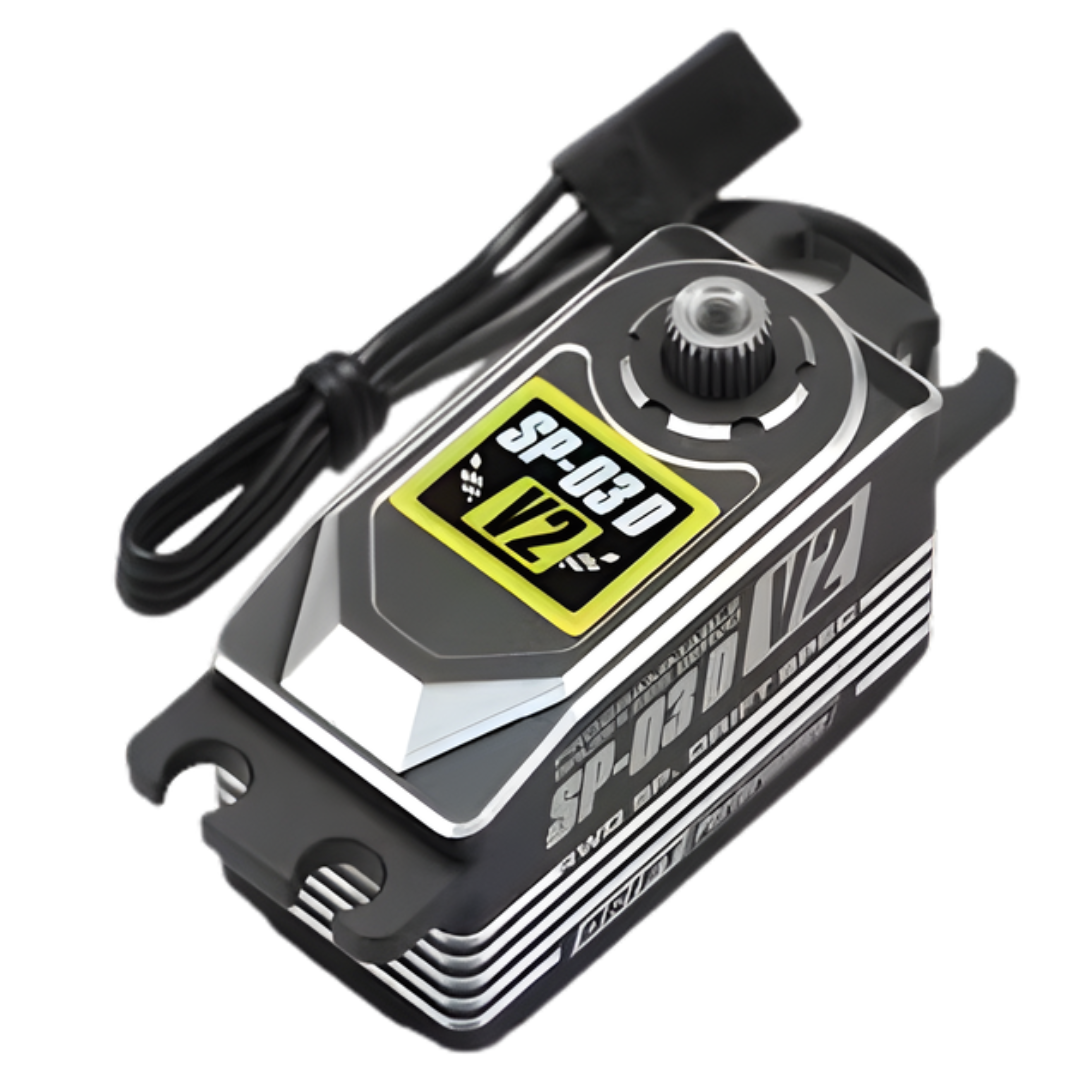

Yokomo SP-03DV2 Drift Brushless Steering Servo Black Y-SP-03DV2A

The Yokomo SP-03DV2 is a programmable brushless steering servo for 1/10 RC drift cars, designed to provide strong holding power, smooth steering response and gyro-friendly control in high-angle drift driving.

This black SP-03DV2 servo supports up to 7.4V input and includes drift-specific hunting suppression to help reduce unwanted steering shake when running higher gyro gain settings.

Features

• Designed specifically for 1/10 scale RC drift car steering applications
• Brushless motor design supports efficient operation and strong steering response
• High-voltage 7.4V support allows higher output when used with compatible electronics
• Strong holding power helps maintain steering stability during high-angle cornering
• Drift-specific hunting suppression helps reduce unwanted servo movement and steering shake
• Gyro-friendly programming allows higher gain settings in suitable drift setups
• Programmable performance allows steering feel and hunting suppression to be adjusted with a dedicated Yokomo programmer
• 25T spline suits compatible servo horns and drift steering hardware
• Full aluminium case helps with protection and heat dissipation
• Black anodised finish suits clean drift chassis builds

Specifications

• Brand: Yokomo
• Model: SP-03DV2
• SKU / Part Number: Y-SP-03DV2A
• Product Type: Brushless drift steering servo
• Application: 1/10 RC drift cars
• Motor Type: Brushless
• Voltage Range: 4.8V to 7.4V
• Torque at 4.8V: 13.0kg-cm / 180 oz-in
• Torque at 6.0V: 16.0kg-cm / 222 oz-in
• Torque at 7.4V: 18.0kg-cm / 249 oz-in
• Spline: 25T
• Case: Full aluminium
• Dimensions: 40.8 x 20.2 x 26.1mm
• Weight: 49g
• Colour: Black

Includes

• 1 x Yokomo SP-03DV2 programmable brushless drift steering servo black
• 1 x Instruction manual

FAQ

Is the Yokomo SP-03DV2 designed for RC drifting? Yes. The Yokomo SP-03DV2 is a drift-specific steering servo designed for 1/10 RC drift cars.

What voltage can the SP-03DV2 use? The Yokomo SP-03DV2 supports 4.8V to 7.4V input when used with compatible receiver and BEC setups.

What servo horn spline does this servo use? The Yokomo SP-03DV2 uses a 25T spline, so it requires a compatible 25T servo horn.

Is a programmer required? A dedicated Yokomo programmer is required if you want to adjust servo performance settings and hunting suppression levels.

Important Notes

• Confirm your receiver, gyro and BEC support the selected servo voltage before installation.
• Use a compatible 25T servo horn.
• Dedicated Yokomo programmer is required for advanced servo tuning and is not listed as included.
• Servo horn, mounting hardware, gyro, receiver and extension leads are not listed as included.
• Check steering endpoints before driving to avoid servo binding or overheating.
