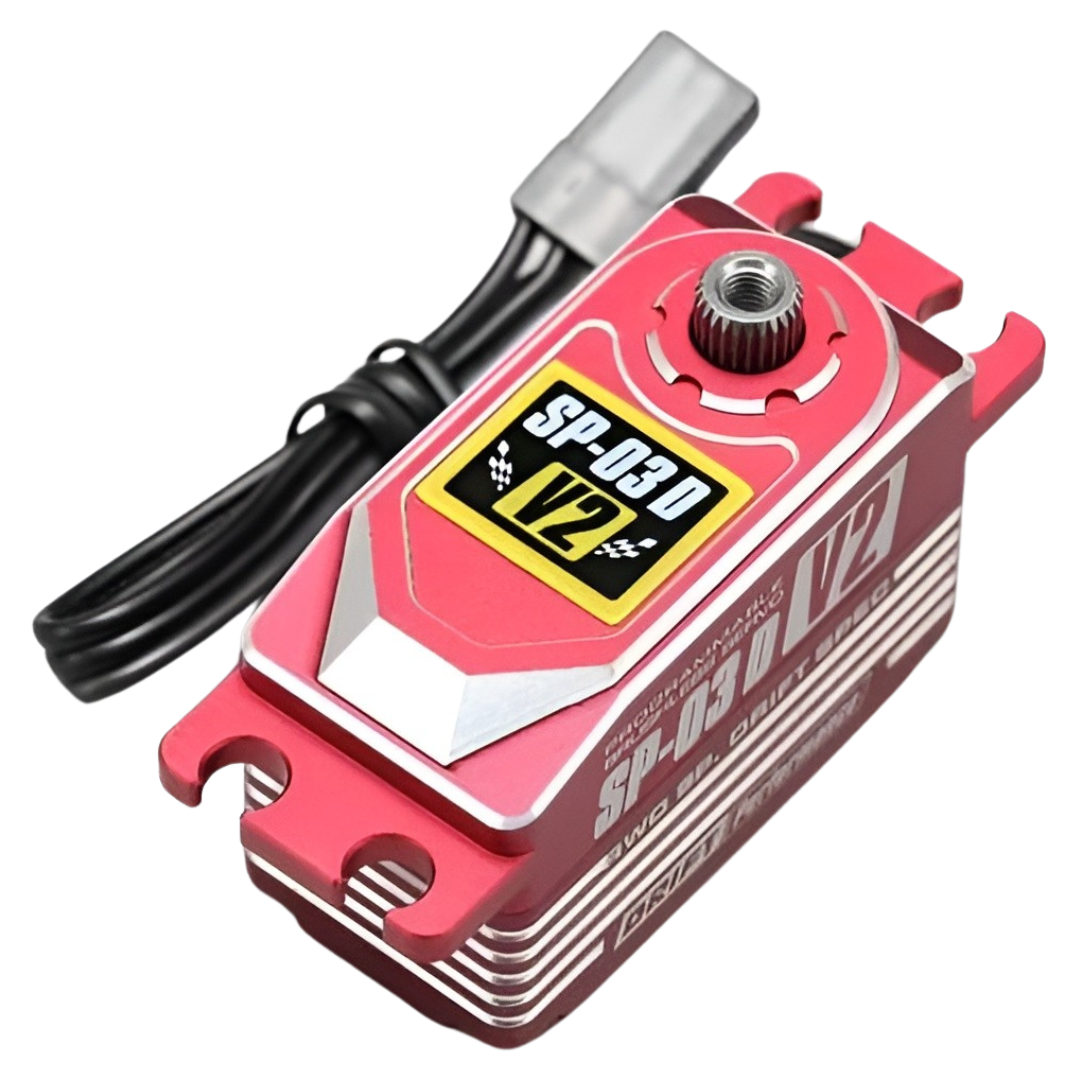

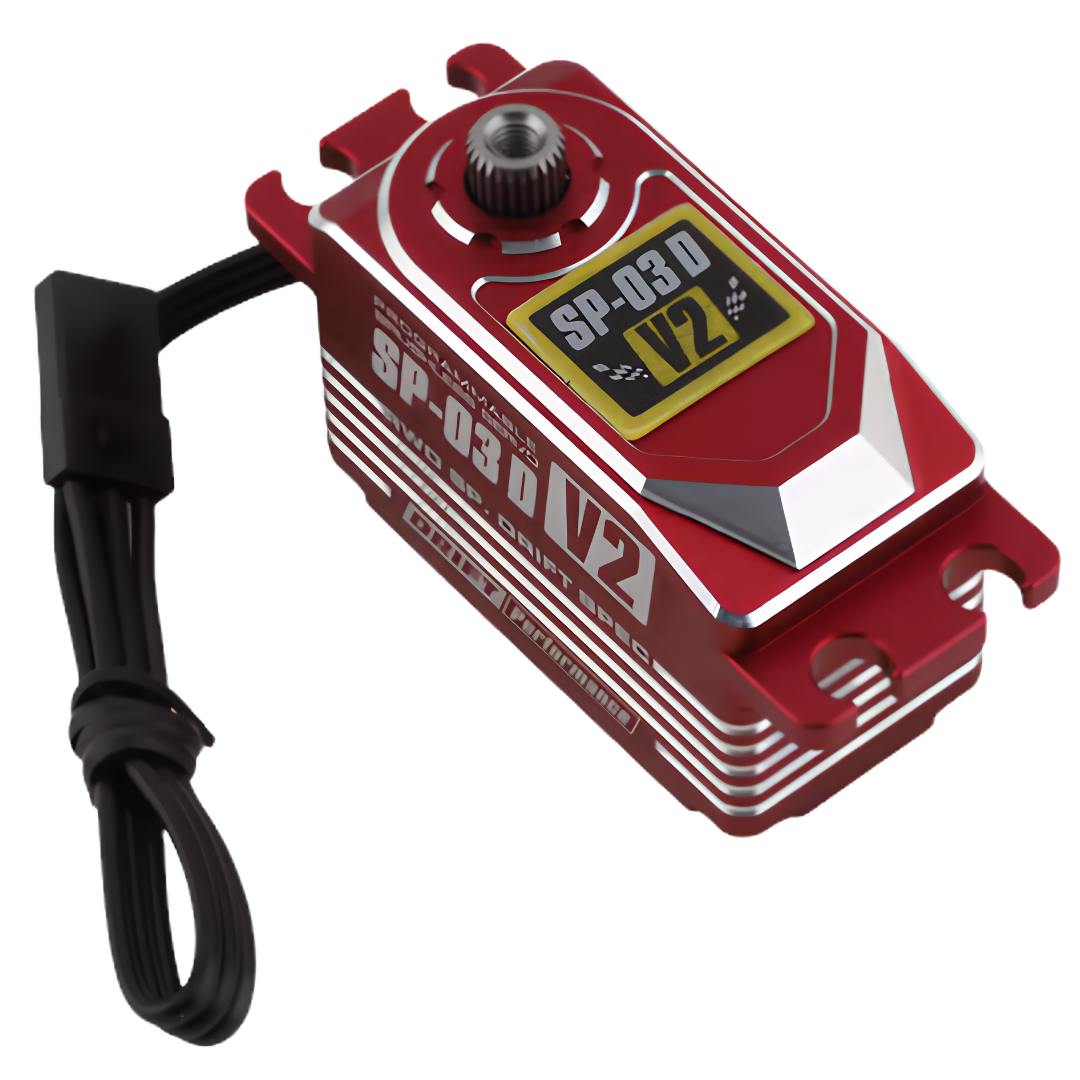

Yokomo SP-03D V2 Drift Brushless Steering Servo Red SP-03DV2RA

The Yokomo SP-03DV2 is a red programmable brushless steering servo for 1/10 RC drift cars, designed to provide strong holding power, smooth steering response and gyro-friendly control in RWD drift setups.

This Version 2 drift servo supports up to 7.4V input and includes drift-specific hunting suppression to help reduce unwanted steering vibration when using higher gyro gain settings.

Features

• Designed specifically for 1/10 scale RC drift car steering applications
• Brushless motor design supports efficient operation and strong steering response
• Version 2 design improves steering retention, holding power and cornering stability
• High-voltage 7.4V support allows maximum servo output with compatible electronics
• Up to 18kg-cm torque at 7.4V for strong steering control in high-angle drifting
• Drift-specific hunting suppression helps reduce unwanted steering shake
• Gyro-friendly performance allows higher gain settings in suitable drift setups
• Programmable settings allow servo feel and response to be tuned with a compatible Yokomo programmer
• Full aluminium case helps improve durability and heat dissipation
• 25T spline suits compatible drift servo horns
• Red anodised finish suits custom drift chassis builds

Specifications

• Brand: Yokomo
• Model: SP-03DV2 / SP-03D Version 2
• SKU / Part Number: SP-03DV2RA
• Product Type: Brushless drift steering servo
• Application: 1/10 scale RC drift cars
• Motor Type: Brushless
• Operating Voltage: 4.8V to 7.4V
• Torque at 4.8V: 13.0kg-cm / 180 oz-in
• Torque at 6.0V: 16.0kg-cm / 222 oz-in
• Torque at 7.4V: 18.0kg-cm / 249 oz-in
• Spline: 25T
• Case Material: Aluminium
• Length: 40.8mm
• Width: 20.2mm
• Height: 26.1mm
• Weight: 49g
• Colour: Red

Includes

• 1 x Yokomo SP-03DV2 programmable brushless drift steering servo red
• 1 x Instruction manual

FAQ

Is the Yokomo SP-03DV2 designed for drifting? Yes. The Yokomo SP-03DV2 is a drift-specific steering servo designed for 1/10 RC drift cars.

Can the SP-03DV2 run on 7.4V? Yes. The Yokomo SP-03DV2 supports 4.8V to 7.4V input when used with compatible receiver and BEC electronics.

What servo horn does this servo need? The Yokomo SP-03DV2 uses a 25T spline, so it requires a compatible 25T servo horn.

Is a programmer required? A compatible Yokomo servo programmer is required if you want to adjust servo response, hunting suppression and other advanced settings.

Important Notes

• Confirm your receiver, gyro and BEC support the selected servo voltage before installation.
• Use a compatible 25T servo horn.
• Compatible Yokomo servo programmer is required for advanced tuning and is not listed as included.
• Servo horn, mounting hardware, gyro, receiver and extension leads are not listed as included.
• Set steering endpoints correctly before driving to avoid servo binding, overheating or premature wear.
