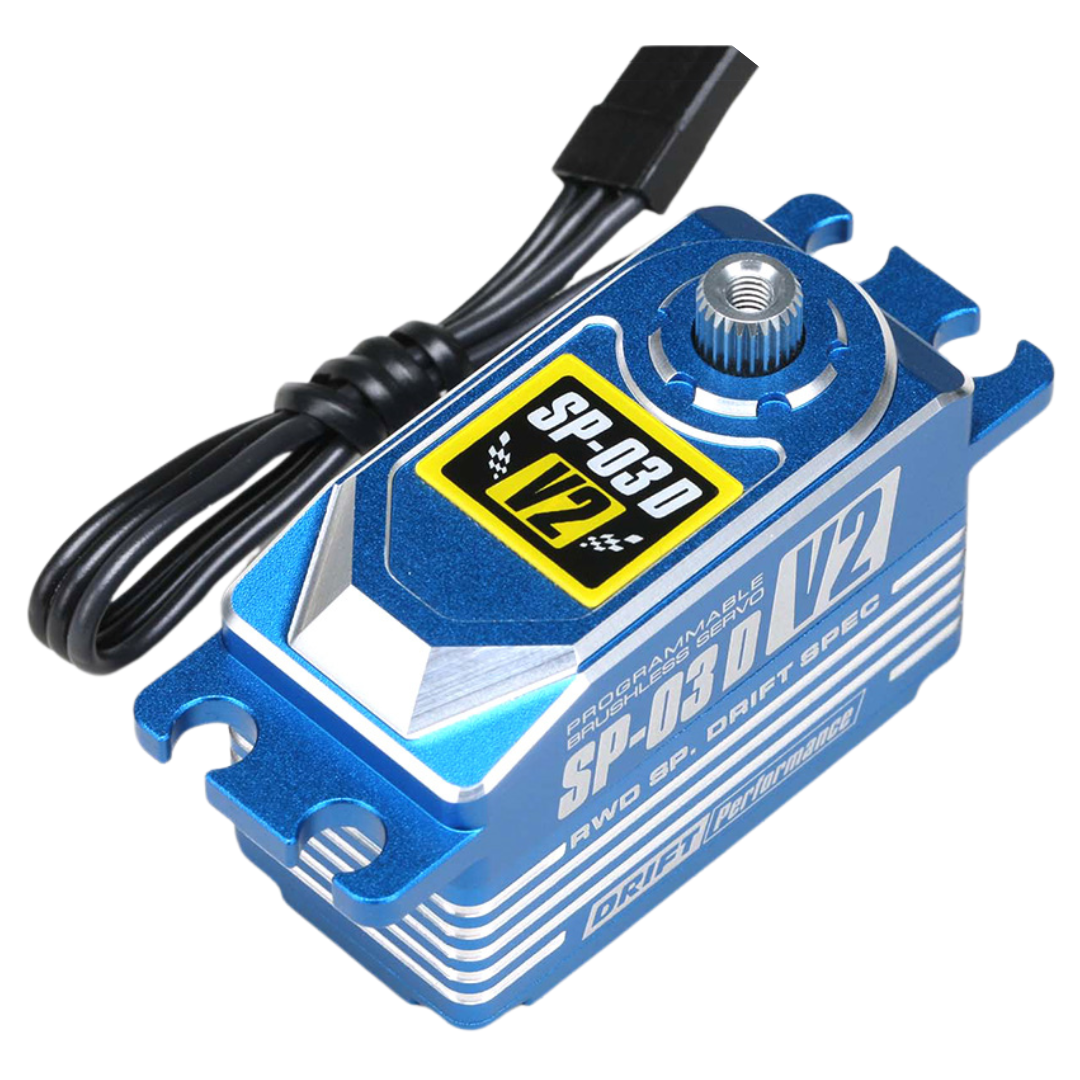

Yokomo SP-03D V2 Blue 18kg Brushless Drift Servo SP-03DV2BL

Upgrade your RC drift car's steering performance with the Yokomo SP-03D Version 2 Low Profile Programmable Brushless Steering Servo in Blue. Developed for precision 1/10 scale RC drifting, this high-performance digital servo combines a responsive brushless motor, improved steering holding power and programmable hunting suppression for smooth, predictable control through corners and drift transitions.

The SP-03DV2BL operates on a regulated 4.8V to 7.4V power supply and delivers up to 18kg-cm of rated torque at 7.4V. Its updated control program improves steering linearity and stability while allowing greater flexibility when tuning compatible drift gyros. The durable aluminium housing, compact low-profile design and distinctive blue finish make it an excellent steering upgrade for serious RC drift enthusiasts.

Features

• Yokomo SP-03D Version 2: Updated high-performance steering servo developed specifically for RC drift applications.
• Brushless Motor Technology: Provides responsive steering operation, strong torque and consistent holding performance.
• High-Voltage Compatible: Supports regulated operating voltages from 4.8V to 7.4V.
• Up to 18kg-cm Torque: Rated at 13kg-cm at 4.8V, 16kg-cm at 6.0V and 18kg-cm at 7.4V.
• Improved Steering Holding Power: Helps maintain steering position during sustained cornering and drift transitions.
• Advanced Hunting Suppression: Reduces unwanted steering oscillation caused by interaction between the servo and drift gyro.
• Higher Gyro Gain Potential: Updated control programming supports greater flexibility when adjusting compatible steering gyros.
• Programmable Servo Performance: Fine-tune steering response and hunting suppression using compatible Yokomo programming equipment.
• Four Adjustable Control Parameters: Supports tuning of hunting suppression, motor advance, holding force and neutral width with compatible programming equipment.
• Smooth Steering Linearity: Designed to provide predictable steering behaviour throughout the operating range.
• Low-Profile Design: Compact 26.1mm height suits many compatible 1/10 scale RC drift chassis.
• Aluminium Housing: Metal case provides rigidity and assists heat dissipation.
• Blue Anodised Finish: Premium metallic appearance complements custom drift chassis and matching electronics.
• 25T Futaba-Type Output Spline: Compatible with appropriately sized 25-tooth servo horns.
• Lightweight Construction: Approximately 49g for a compact steering installation.
• Dedicated Drift Application: Suitable for compatible Yokomo and other 1/10 scale rear-wheel-drive RC drift cars.

Specifications

• Brand: Yokomo
• Product Series: SP-03D Drift Spec Version 2
• Manufacturer Part Number: SP-03DV2BL
• SKU: SP-03DV2BL
• Barcode / JAN: 639342227549
• Product Type: Programmable Digital Brushless Steering Servo
• Application: 1/10 Scale RC Drift Cars
• Colour: Blue
• Servo Profile: Low Profile
• Motor Technology: Brushless
• Case Material: Aluminium
• Case Finish: Blue Anodised
• Operating Voltage: 4.8V to 7.4V DC
• Rated Torque at 4.8V: 13kg-cm
• Rated Torque at 6.0V: 16kg-cm
• Rated Torque at 7.4V: 18kg-cm
• Length: 40.8mm
• Width: 20.2mm
• Height: 26.1mm
• Weight: Approximately 49g
• Output Spline: 25T Futaba-Type
• Steering Hunting Suppression: Programmable
• Servo Performance: Programmable
• Compatible USB Programmer: Yokomo SP-USBP, Sold Separately
• Compatible Program Card: Yokomo SP-03DPC-1, Sold Separately
• Package Quantity: 1 Servo

Includes

• 1 x Yokomo SP-03D Version 2 Low Profile Programmable Brushless Steering Servo in Blue (SP-03DV2BL)
• 1 x Instruction Manual

FAQ

Is the Yokomo SP-03DV2BL suitable for RC drifting? Yes. The SP-03D Version 2 is specifically developed for RC drift steering, combining brushless motor performance, strong holding torque and programmable hunting suppression for use with compatible steering gyros.

How much torque does the Yokomo SP-03D V2 produce? The published torque ratings are 13kg-cm at 4.8V, 16kg-cm at 6.0V and 18kg-cm at 7.4V. Actual performance depends on the regulated supply voltage and steering load.

Can this servo operate at 7.4V? Yes. It supports a regulated supply from 4.8V to 7.4V. Ensure the ESC's BEC or receiver power supply provides the appropriate voltage and sufficient current. Do not connect the servo directly to an unregulated, fully charged 2S LiPo battery supplying 8.4V.

What is hunting suppression on a drift servo? Hunting suppression reduces unwanted rapid steering oscillation that can occur when a drift gyro repeatedly corrects the steering position. This helps improve stability and allows greater flexibility when adjusting gyro gain.

Can I program the SP-03DV2BL servo? Yes. Yokomo supports programming with the separately available SP-USBP USB programmer or SP-03DPC-1 program card. Supported adjustments include hunting suppression, motor advance, holding force and neutral width.

Will the SP-03D V2 fit an MST or Yokomo drift chassis? It is suitable for many compatible 1/10 scale RC drift platforms. Check the 40.8 x 20.2 x 26.1mm dimensions, mounting arrangement, 25T output spline and receiver power supply before installation. Universal fitment is not guaranteed.

Which servo horn fits the SP-03DV2BL? The servo uses a 25T Futaba-type output spline. Choose a compatible servo horn with suitable dimensions and linkage clearance.

Does the servo include a steering gyro? No. This product includes the steering servo and documentation. A compatible drift gyro is a separate component.

What is the difference between the SP-03D V2 and SP-02D V2? The SP-03D V2 uses a brushless motor, operates up to 7.4V and produces 18kg-cm of torque at its maximum rated voltage. The SP-02D V2 uses a coreless motor and is rated at 12kg-cm at 6.0V. Both are designed for programmable drift steering.

Is Blue a separate version from Purple? Yes. SP-03DV2BL is the Blue version, while SP-03DV2PA is Purple. Both belong to the SP-03D V2 brushless drift servo family.

Important Notes

• This listing is for the Blue SP-03DV2BL variant.
• Maximum rated operating voltage is 7.4V DC. Do not exceed the manufacturer's specified voltage range.
• Use a suitably regulated ESC BEC or receiver power supply.
• Check servo mounting dimensions, output spline compatibility and linkage clearance before purchasing.
• Compatible Yokomo programming equipment is required to change programmable settings and is sold separately.
• Adjust servo hunting suppression and drift gyro gain carefully to avoid steering oscillation.
• Check steering endpoints and ensure there is no mechanical binding at full steering lock.
• Servo horn, drift gyro, programming equipment and RC vehicle are not included.
• Do not assume the servo is waterproof; protect it from excessive moisture.
• This is the SP-03D V2 brushless model, not the lower-voltage SP-02D V2 coreless servo.
