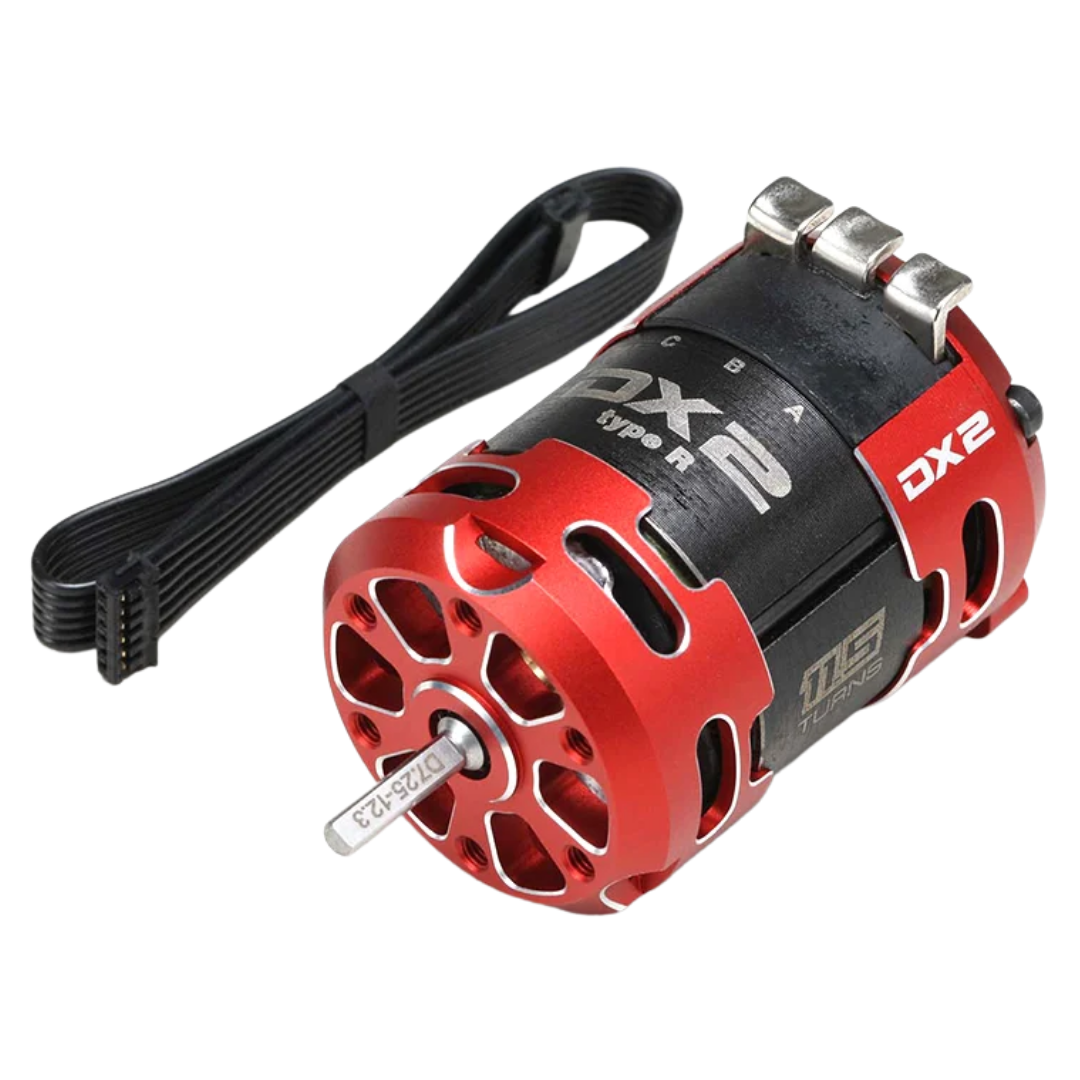

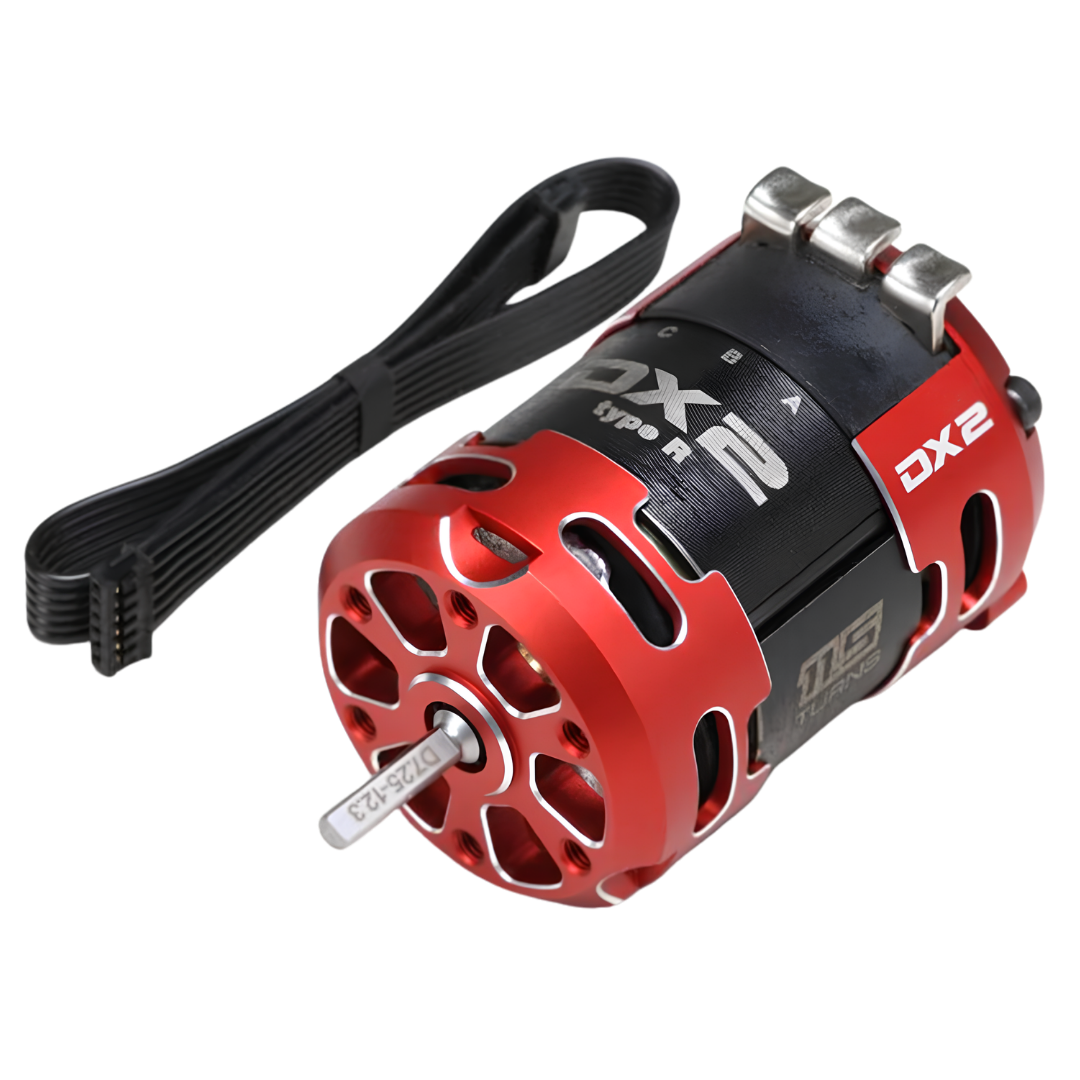

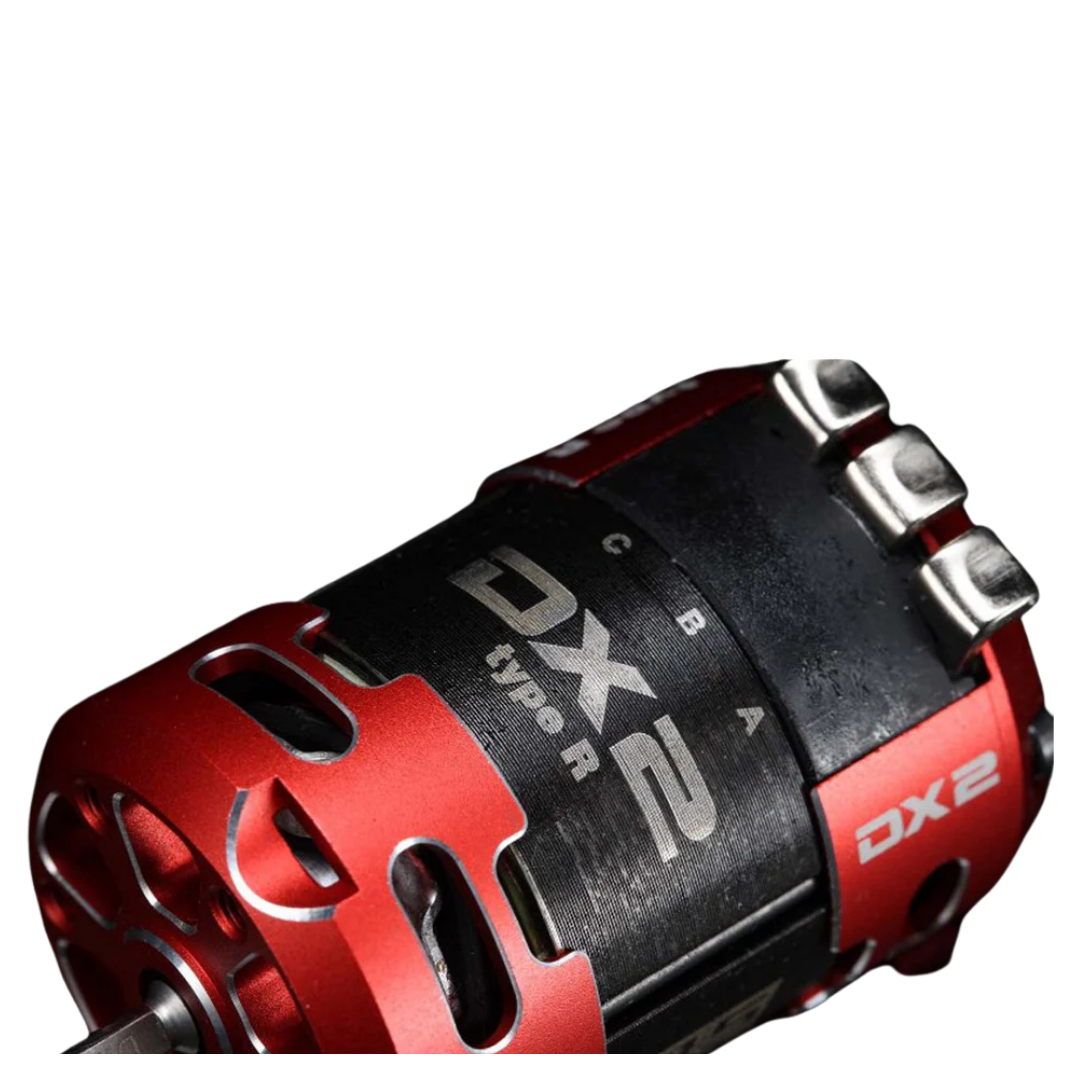

Yokomo RP DX2 Type-R 11.5T Sensored Brushless Drift Motor Red RPM-D2115RR

The Yokomo RPM-D2115RR Racing Performer DX2 Type-R is an 11.5T sensored brushless motor developed for high-revving 1/10 RC drift performance. Its Type-R power characteristics provide strong acceleration and high-RPM performance, while adjustable timing and sensored operation allow the power delivery to be tuned for precise drift driving.

Features

• Type-R Specification: High-revving motor characteristics developed specifically for RC drifting
• 11.5T Winding: Performance-focused turn count suited to drivers seeking strong acceleration and high-RPM power
• Sensored Brushless Design: Provides precise motor position feedback when paired with a compatible sensored ESC
• Adjustable Timing: Allows motor timing to be tuned to suit the desired power delivery and track conditions
• Reinforced Rotor: Rotor incorporates a reinforcing ring designed to help protect the magnet from damage
• Drift-Specific Development: Part of Yokomo's Racing Performer DX2 range developed for competitive drift applications
• Competition Proven: A prototype DX2 11.5T was used by Team Yokomo to win the WTDC drift event in Malaysia

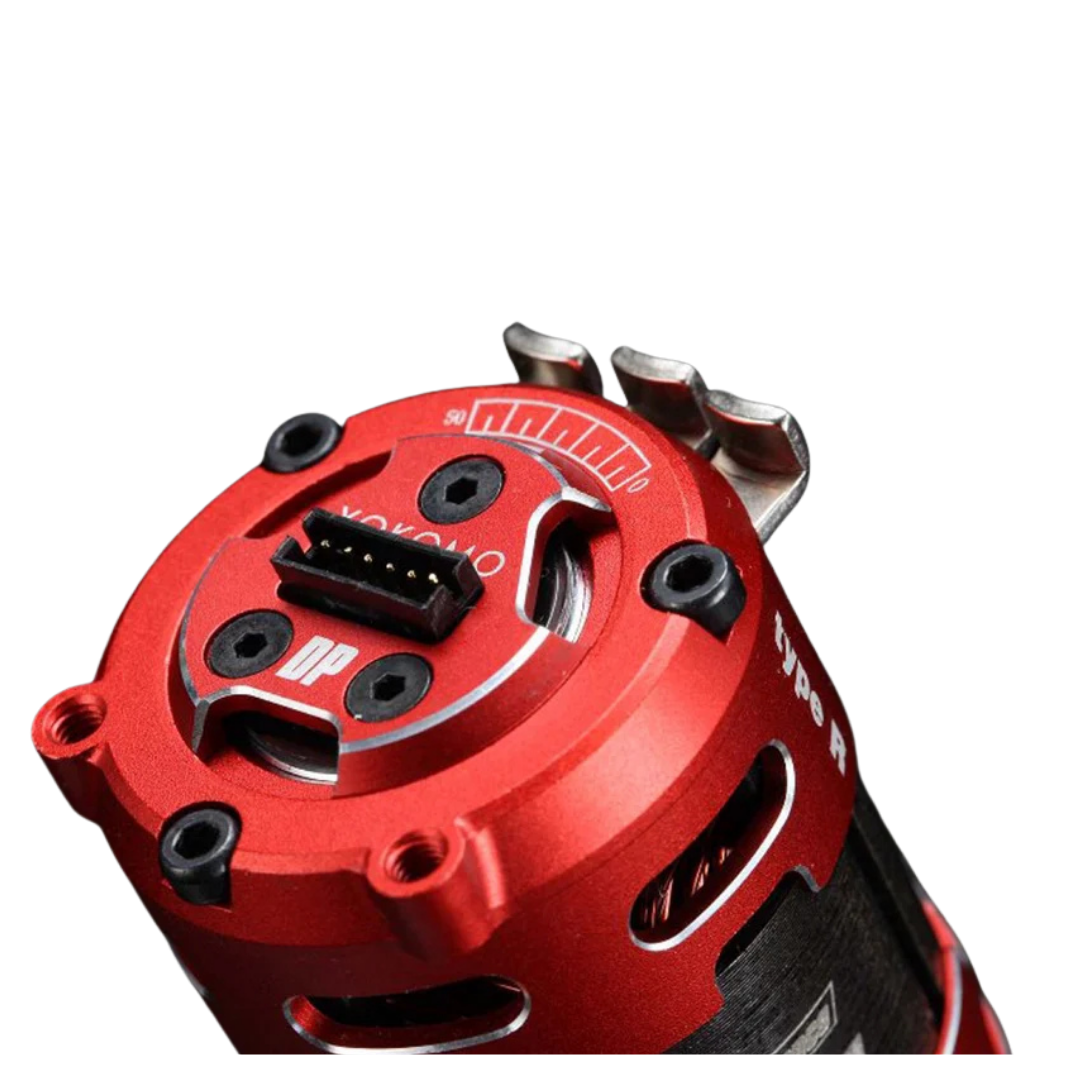

• 200mm Sensor Cable Included: Supplied with a sensor lead for connection to a compatible sensored ESC
• Red Anodised Finish: Distinctive red finish for custom drift chassis builds

Specifications

• Brand: Yokomo
• Series: Racing Performer DX2
• Model: Type-R
• Product Type: Brushless Drift Motor
• Motor Type: Sensored Brushless
• Motor Turn: 11.5T
• Application: 1/10 RC Drift / On-Road
• Input Voltage: 7.4V / 2S
• Motor Connections: Solder Tabs
• Shaft Diameter: 3.17mm / 1/8in
• Timing: Adjustable
• Sensor Cable Length: 200mm
• Colour: Red
• Manufacturer Part Number: RPM-D2115RR
• JAN / GTIN: 0639342228522

Includes

• 1 x Yokomo Racing Performer DX2 Type-R 11.5T Sensored Brushless Motor Red
• 1 x 200mm Sensor Cable

FAQ

What is the Yokomo DX2 Type-R 11.5T designed for? Yokomo developed the Racing Performer DX2 Type-R specifically for RC drifting. The Type-R specification emphasises high-RPM performance, with the 11.5T version providing a performance-focused option for competitive and advanced drift setups.

Is the Yokomo RPM-D2115RR a sensored motor? Yes. RPM-D2115RR is a sensored brushless motor and includes a 200mm sensor cable for use with a compatible sensored electronic speed controller.

What voltage does the DX2 Type-R 11.5T use? Specialist specifications list the DX2 Type-R 11.5T for 7.4V / 2S operation. The ESC and battery should be selected to suit the motor and the requirements of the complete drift setup.

Can motor timing be adjusted? Yes. The DX2 Type-R features adjustable timing, allowing experienced users to alter motor characteristics to suit gearing, ESC settings and track conditions.

What is special about the DX2 Type-R rotor? Yokomo fits the rotor with a reinforcing ring designed to reduce the risk of magnet damage, improving durability under demanding drift power settings.

What is the difference between the DX2 Type-R 11.5T and the other turn options? Yokomo offers Type-R motors in multiple turn counts. The 11.5T is the high-performance option, while Yokomo describes the 13.5T as slightly milder and easier to use on P-tile surfaces and the 15.5T as having a more torque-focused power feel.

Is the red RPM-D2115RR different internally from the other 11.5T colours? Yokomo offers the DX2 Type-R 11.5T in several anodised colours. RPM-D2115RR identifies the red version; colour selection allows the motor to be matched to the appearance of the chassis build.

Does the motor include a sensor cable? Yes. Yokomo supplies a 200mm sensor cable with the DX2 Type-R motor.

Important Notes

• Electronic speed controller, battery, pinion gear and other vehicle electronics are not included
• Use a suitable sensored brushless ESC and power system configuration
• Motor timing, ESC boost or turbo settings and gearing can significantly affect motor temperature and performance
• Monitor motor temperature when changing gearing, timing or ESC settings
