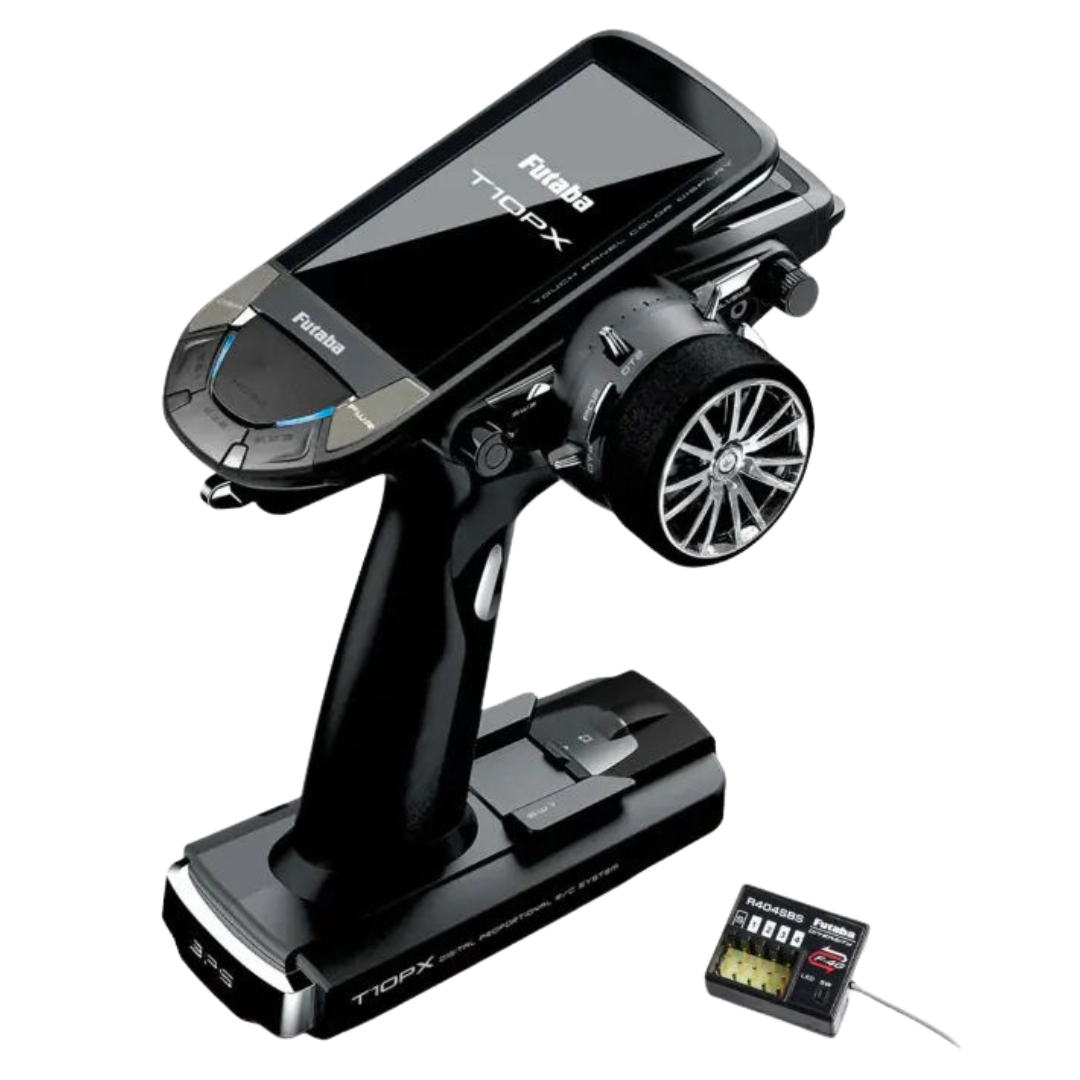

Futaba 10PX 2.4GHz 10CH F-4G RC Transmitter Radio with 2 R404SBS Receivers FUT07007207-3

The Futaba 10PX is a 10-channel 2.4GHz digital proportional RC transmitter package supplied with two R404SBS receivers for compatible RC cars and surface racing applications, offering high-speed F-4G control, telemetry, a 4.3-inch colour touchscreen and advanced programming for precise vehicle setup.

Features

• Two R404SBS Receivers Included: Supplied with two Futaba F-4G telemetry receivers for installation in two compatible RC cars, with separate model settings stored in the transmitter.
• F-4G High-Speed Radio System: Futaba's F-4G protocol combines responsive control with bidirectional telemetry communication for compatible receivers and sensors.
• Up to 10-Channel Operation: Supports up to 10 channels using F-4G and S.BUS2, allowing additional functions on compatible surface models.
• Multiple Transmission Protocols: Supports F-4G, T-FHSS SR, T-FHSS and S-FHSS for use with appropriately matched Futaba receivers.
• 4.3-Inch Colour Touchscreen: Backlit HVGA touchscreen provides access to vehicle settings, telemetry information and programming menus. Transflective screen technology supports indoor and outdoor visibility.
• 40-Model Memory: Stores individual settings for up to 40 vehicles, with model names of up to 15 characters and model copy functionality.
• Telemetry Monitoring: Displays compatible vehicle telemetry data using the included F-4G receivers and separately available S.BUS2 telemetry sensors.
• Super Response Servo Control: Supports compatible Futaba SR servos for high-speed steering response and precise control.
• Advanced Steering and Throttle Programming: Includes steering speed, throttle speed, brake mixing, throttle acceleration and other adjustable driving functions.
• Four-Wheel Steering Mixing: Allows independent front and rear steering control for compatible 4WS RC crawlers.
• Dual ESC Mixing: Provides independent front and rear ESC control for suitable crawler and custom vehicle configurations.
• Gyro Mixing: Enables transmitter-based sensitivity adjustment for compatible Futaba steering gyros.
• Brake and Steering Mixing: Supports independent steering servo control and adjustable front and rear braking for suitable large-scale RC vehicles.
• Tank Mixing: Offers programming functions for compatible RC tanks and tracked vehicles.
• Programmable S.BUS Servos: Supports adjustment of compatible Futaba S.BUS servo parameters.
• Futaba MC-Link Compatibility: Provides programming access for selected compatible Futaba electronic speed controllers.
• Customisable Switches and Dials: Includes paddle switches, programmable controls and digital trim functions for auxiliary channels and driver preferences.
• Adjustable Wheel and Trigger: Supports left-handed steering wheel conversion, throttle trigger positioning and optional wheel offset configurations.
• Customisable Grip: Includes grip, trigger guard and steering wheel accessories for adjusting transmitter ergonomics.
• Vibration Alerts: Integrated grip vibration provides feedback for timers, low battery conditions and compatible telemetry alarms.
• microSD Support: Allows compatible software updates, model data storage and telemetry log recording using a separately available microSD card.
• USB Connectivity: Supports use as a computer game controller through a compatible USB connection, depending on game support.
• Mini-Z Compatibility: Supports selected Kyosho Mini-Z configurations with separately available compatible receiver or module hardware.

Specifications

• Brand: Futaba
• Transmitter Model: T10PX / 10PX
• Manufacturer Bundle Reference: FUT10PXR404SBS
• SKU: FUT07007207-3
• Product Type: Digital Proportional Surface Radio Transmitter and Receiver Set
• Radio Frequency: 2.4GHz
• Transmitter Type: Wheel-Style
• Maximum Channels: 10 with F-4G and S.BUS2
• S-FHSS Channels: Up to 7
• T-FHSS / T-FHSS SR Channels: 4
• Supported Radio Protocols: F-4G, T-FHSS SR, T-FHSS and S-FHSS
• Model Memory: 40 Models
• Model Name Length: Up to 15 Characters
• Display: 4.3-Inch Backlit Colour TFT Touchscreen
• Display Resolution: HVGA
• Transmitter RF Output: 100mW EIRP
• Transmitter Current Consumption: 350mA or Less Under Specified Operating Conditions
• Transmitter Aerial: Half-Wavelength Dipole
• Transmitter Power Options: Compatible Futaba Rechargeable Battery Pack or Supplied Dry Battery Holder for Performance Checks
• Dry Battery Holder Requirement: 4 x AA Batteries
• Compatible Optional LiPo Battery: Futaba 7.4V Transmitter LiPo Battery
• Compatible Optional LiFe Battery: Futaba 6.6V Transmitter LiFe Battery
• Software Updates: microSD Card
• Telemetry: Supported with Compatible F-4G Receivers and Sensors
• Receiver Model: Futaba R404SBS
• Receiver Quantity: 2
• Receiver Protocol: F-4G
• Receiver Frequency: 2.4GHz
• Receiver PWM Channels: 4 Each
• Receiver Channel Expansion: Up to 10 Channels Through S.BUS2
• Receiver Operating Voltage: 3.7–7.4V DC
• Receiver Dimensions: 25.5 x 20.7 x 10.6mm Each
• Receiver Weight: Approximately 5.7g Each
• Receiver Aerial: Diversity Aerial System
• Receiver Telemetry: S.BUS2 Compatible
• Receiver Failsafe: Transmitter-Configurable
• Application: Compatible RC Cars and Surface Racing Vehicles

Includes

• 1 x Futaba T10PX 10-Channel 2.4GHz Wheel Transmitter
• 2 x Futaba R404SBS F-4G Telemetry Receivers
• 1 x Dry Battery Holder
• 2 x Wheel Offset Adapters (APA)
• APA Mounting Screws and Spare Screws
• 1 x 32-Degree Wheel Adapter
• 1 x 5-Degree Wheel Angle Spacer
• 1 x Large Diameter Steering Wheel
• 1 x Left Trigger Guard
• 1 x Right Trigger Guard
• 1 x Replacement Grip Rubber
• 2 x Blind Paddles
• 1 x Hex Wrench
• 1 x Short Instruction Manual

FAQ

Can the Futaba 10PX control two RC cars using the included receivers? Yes. This package includes two R404SBS receivers that can be installed in separate compatible RC cars. The 10PX supports 40 model memories, allowing different vehicle settings to be saved. Only one vehicle can be controlled at a time.

What is the difference between F-4G and T-FHSS SR? Futaba F-4G supports high-speed control and compatible telemetry functions, while T-FHSS SR provides Super Response operation without telemetry. The supplied R404SBS receivers use F-4G only and must be linked with the transmitter configured to F-4G mode.

Does the Futaba 10PX provide 10 channels through the included receivers? Yes. The R404SBS receivers provide four conventional PWM channel connections, with up to 10-channel operation available through compatible S.BUS2 equipment. Additional S.BUS2 accessories may be required for expanded channel functions.

Are batteries included with the Futaba 10PX? The package includes a dry battery holder, but batteries are not listed as included. Futaba specifies four AA batteries for the holder and recommends a suitable genuine rechargeable transmitter battery for driving because the dry battery holder is intended for performance checks.

Important Notes

• This specific package includes two R404SBS receivers. Other Futaba 10PX packages may contain one receiver, R404SBS-E receivers or different accessories.
• The included R404SBS receivers are F-4G only. They do not link using T-FHSS, T-FHSS SR or S-FHSS transmission modes.
• The R404SBS receivers provide four conventional PWM channel outputs. Additional channel functions require compatible S.BUS2 equipment.
• Futaba specifies a 3.7–7.4V receiver operating range. Ensure the connected servos and electronics support the selected power supply.
• Do not use dry-cell batteries as a direct power source for the R404SBS receivers.
• Futaba recommends a genuine rechargeable transmitter battery for driving. The supplied dry battery holder is intended for performance checks rather than normal driving operation.
• SR mode requires compatible Futaba SR servos on channels configured for SR operation. Incorrect servo mode settings may damage connected equipment.
• R404SBS receivers are not waterproof. Protect them from water, excessive vibration and impact.
• Optional transmitter batteries, charger, microSD card, telemetry sensors, servos, ESCs and RC vehicles are not included.
• Confirm the physical package contents before installation, as Futaba radio bundles can vary by distributor and region.
