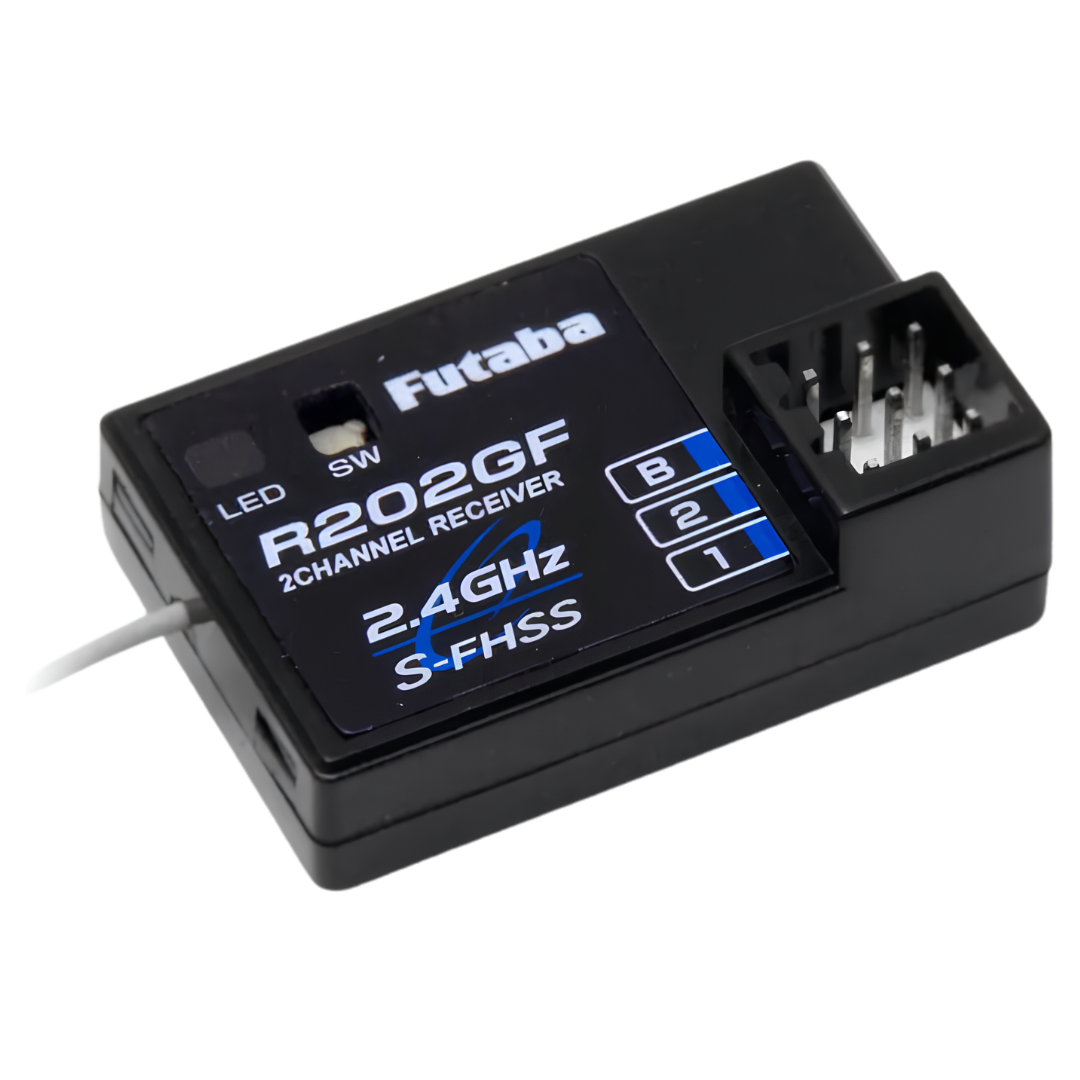

Futaba R202GF 2-Channel 2.4GHz S-FHSS FHSS Receiver FUT07102004-3

The Futaba R202GF is a compact 2-channel 2.4GHz receiver designed for compatible Futaba S-FHSS and FHSS radio systems in RC cars, boats and other surface vehicles, providing reliable steering and throttle control with automatic transmission mode detection.

Features

• Futaba S-FHSS and FHSS Compatibility: Supports compatible Futaba 2.4GHz S-FHSS and FHSS transmitters, automatically detecting the selected transmission system.
• 2-Channel Operation: Provides two standard PWM channel outputs for steering and throttle control in compatible RC surface vehicles.
• Compact Receiver Design: Measures approximately 23 x 35 x 9mm for installation in vehicles with limited electronics space.
• Lightweight Construction: Weighs approximately 6g, making it suitable for a range of electric and nitro RC applications.
• Single External Aerial: Simplifies aerial positioning and installation within a compatible radio box or chassis.
• Integrated Link Button: Allows the receiver to be paired with a compatible Futaba transmitter without additional programming equipment.
• LED Status Indicator: Displays receiver signal and linking status to assist with initial setup and troubleshooting.
• Automatic Operating Mode Detection: Supports S-FHSS Normal and High Speed modes, depending on transmitter configuration.
• Normal Mode Compatibility: Supports analogue and digital servos with a 13.6ms output frame rate.
• High Speed Mode: Provides a 6.8ms output frame rate for compatible digital servos and supported electronic speed controllers.
• Dedicated Battery Port: Includes a separate battery connection for supplying receiver power in suitable installations.
• Failsafe Support: Supports transmitter-dependent failsafe functionality, with battery failsafe operation subject to the selected radio mode and power supply.

Specifications

• Brand: Futaba
• Model: R202GF
• SKU: FUT07102004-3
• Product Type: 2-Channel Surface Radio Receiver
• Radio Frequency: 2.4GHz
• Compatible Protocols: Futaba S-FHSS and FHSS
• Radio Channels: 2
• Channel Outputs: Standard PWM
• Operating Voltage: 4.8–7.4V DC
• Current Consumption: Approximately 30mA Without Signal
• Dimensions: 23 x 35 x 9mm
• Weight: Approximately 6g
• Aerial Configuration: Single External Aerial
• Binding Method: Integrated Link Button
• Status Display: LED Indicator
• S-FHSS Normal Mode Frame Rate: 13.6ms
• S-FHSS High Speed Mode Frame Rate: 6.8ms
• Failsafe: Transmitter and Radio Mode Dependent
• Battery Failsafe Threshold: 3.8V When Applicable
• Receiver Connections: Channel 1, Channel 2 and Battery Port
• Intended Application: RC Cars, Boats and Other Compatible Surface Vehicles

Includes

• 1 x Futaba R202GF 2-Channel 2.4GHz S-FHSS / FHSS Receiver

FAQ

Which Futaba transmitters are compatible with the R202GF? The Futaba R202GF works with compatible Futaba transmitters operating in S-FHSS or FHSS mode. It is not compatible with FASST, FASSTest or T-FHSS transmission modes. OZRC recommends checking the transmitter's supported radio protocols before purchasing.

Can I use an analogue servo with the Futaba R202GF? Yes. Analogue servos can be used when the receiver operates in S-FHSS Normal mode or a compatible FHSS configuration. S-FHSS High Speed mode requires suitable digital servos and must not be used with analogue servos.

How do I bind the Futaba R202GF to my transmitter? Turn on the compatible Futaba transmitter and receiver, position them close together and press the receiver's link button according to Futaba's instructions. The LED illuminates solid green when linking is complete. Cycle receiver power and verify correct transmitter control before operating the vehicle.

Can the Futaba R202GF receiver use a 7.4V power supply? Yes. The Futaba R202GF has a specified operating voltage range of 4.8–7.4V DC. Any connected servos or other components must also be rated for the selected voltage. Do not connect an unregulated drive battery directly unless its voltage remains within the receiver and connected equipment ratings.

Important Notes

• Compatible with Futaba S-FHSS and FHSS transmission systems only. Not compatible with FASST, FASSTest or T-FHSS modes.
• S-FHSS High Speed mode requires suitable digital servos. Analogue servos must not be used in this mode.
• Check the voltage rating of all connected servos and electronics before selecting the receiver power supply.
• Futaba advises against using dry-cell batteries as a direct receiver power supply. Use a suitable regulated supply or compatible rechargeable receiver battery.
• The battery failsafe function is intended for a four-cell NiCd/NiMH receiver battery and may not operate correctly with other battery types. Its availability also depends on the radio transmission mode.
• After binding, verify correct steering, throttle direction and failsafe operation before driving.
• A compatible transmitter, servos, ESC, receiver battery and other vehicle electronics are not included.
