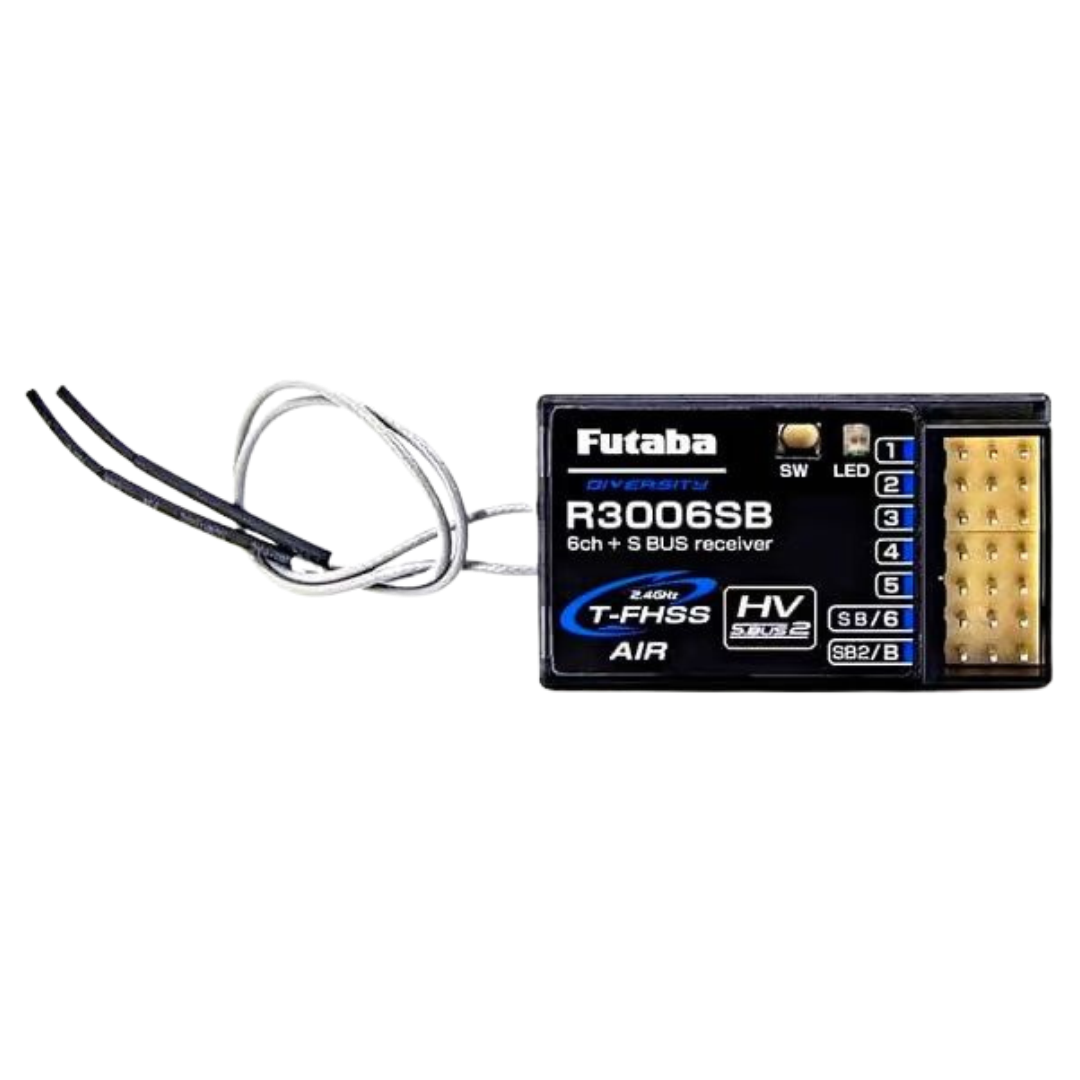

Futaba R3006SB 6-Channel 2.4GHz T-FHSS Air S.BUS Receiver FUT07102001-3

The Futaba R3006SB is a 6-channel 2.4GHz T-FHSS Air telemetry receiver designed for compatible Futaba RC aircraft transmitters, providing conventional servo outputs, S.BUS control and S.BUS2 telemetry connectivity for aeroplanes, helicopters and other suitable aircraft models.

Features

• Futaba T-FHSS Air Compatibility: Designed for Futaba transmitters operating in the T-FHSS Air 2.4GHz transmission system.
• 6-Channel Conventional Receiver: Provides six standard PWM servo channel outputs for compatible aircraft control systems.
• S.BUS Digital Control: Supports compatible Futaba S.BUS servos, gyros and flight control equipment through its configurable S.BUS output.
• S.BUS2 Telemetry: Supports bidirectional communication with compatible Futaba transmitters, allowing optional telemetry sensors to report aircraft operating information.
• Dual Aerial Diversity: Uses two external aerials to improve signal reception when correctly positioned within the aircraft.
• Compact Receiver Design: Measures 25 x 43.1 x 8.8mm for installation in aircraft with limited receiver space.
• Lightweight Construction: Weighs approximately 8.5g, making it suitable for a range of RC aircraft applications.
• High-Voltage Receiver Support: Rated for 4.8–7.4V DC supplies, with a published operating voltage range of 4.0–8.4V DC.
• Configurable Output Modes: Supports conventional channel assignments and S.BUS operation using the receiver's channel mode settings.
• Telemetry Monitoring: Compatible optional sensors can provide information such as altitude, temperature, RPM and voltage through a suitable Futaba transmitter.
• Receiver Voltage Monitoring: Supports receiver voltage telemetry through a compatible T-FHSS Air transmitter.
• Failsafe Functions: Supports transmitter-configurable failsafe and battery failsafe settings for compatible aircraft installations.
• Futaba 6K Compatibility: Suitable for the Futaba T6K transmitter when configured for T-FHSS Air operation.

Specifications

• Brand: Futaba
• Model: R3006SB
• Australian Product Reference: FUTR3006SB
• SKU: FUT07102001-3
• Product Type: Aircraft Radio Telemetry Receiver
• Radio Frequency: 2.4GHz
• Radio Protocol: Futaba T-FHSS Air
• Conventional PWM Channels: 6
• Digital Control Interface: S.BUS
• Telemetry Interface: S.BUS2
• Telemetry System: Futaba T-FHSS Air Bidirectional Communication
• Receiver Aerial Configuration: Dual External Aerial Diversity
• Rated Voltage: 4.8–7.4V DC
• Published Operating Voltage Range: 4.0–8.4V DC
• Dimensions: 25 x 43.1 x 8.8mm
• Weight: Approximately 8.5g
• Channel Mode: Configurable Conventional PWM / S.BUS Output
• Failsafe: Supported, Configured Through Compatible Transmitter
• Battery Failsafe: Supported, Transmitter-Configurable
• Compatible Radio System: Futaba T-FHSS Air
• Compatible Transmitter: Futaba T6K and Other Suitable T-FHSS Air Transmitters
• Application: RC Aeroplanes, Helicopters and Compatible Aircraft Models

Includes

• 1 x Futaba R3006SB 6-Channel 2.4GHz T-FHSS Air Receiver
• 1 x Receiver Instruction Sheet

FAQ

Which Futaba transmitters are compatible with the R3006SB? The Futaba R3006SB requires a transmitter supporting Futaba T-FHSS Air, such as the compatible Futaba 6K. It does not support S-FHSS, T-FHSS Surface, FHSS, FASST or FASSTest. OZRC recommends confirming the exact transmitter protocol before purchasing.

Does the Futaba R3006SB have six channels or eight channels? The R3006SB provides six conventional PWM channel outputs and supports S.BUS digital control. Compatible eight-channel transmitters, such as the Futaba 6K, can use additional channels through suitable S.BUS equipment.

Can the Futaba R3006SB provide telemetry information? Yes. The R3006SB supports bidirectional T-FHSS Air telemetry through S.BUS2. Receiver voltage can be monitored, while additional information such as altitude, temperature, RPM and external voltage requires compatible optional sensors and a suitable transmitter.

Can standard S.BUS servos be connected to the S.BUS2 port? No. Standard S.BUS servos and gyros must use the appropriate S.BUS output. The S.BUS2 port is intended for compatible S.BUS2 devices and telemetry sensors. Connecting incompatible equipment may cause incorrect operation.

Important Notes

• The R3006SB operates with Futaba T-FHSS Air transmitters only. T-FHSS Air and T-FHSS Surface are different transmission systems and are not interchangeable.
• A transmitter supporting both T-FHSS Air and S-FHSS must be configured to T-FHSS Air when using this receiver.
• The SB/6 connection is configurable for conventional Channel 6 or S.BUS operation. Check the required channel mode before connecting equipment.
• Do not connect standard S.BUS servos or gyros directly to the S.BUS2 port.
• Futaba specifies 4.8–7.4V DC as the rated voltage. Ensure the receiver power supply and connected servos remain within their respective operating limits.
• Do not use ordinary dry-cell batteries as a direct receiver power supply. Use a suitable rechargeable receiver battery or regulated supply.
• Position the two aerials approximately 90 degrees apart for effective diversity reception and keep them clear of conductive structures.
• Protect the receiver from excessive vibration, moisture and impact using suitable mounting and installation methods.
• Telemetry sensors, transmitter, servos, receiver battery, ESC and aircraft are not included.
• Complete receiver binding, control direction checks, failsafe configuration and a radio range check before flight.
