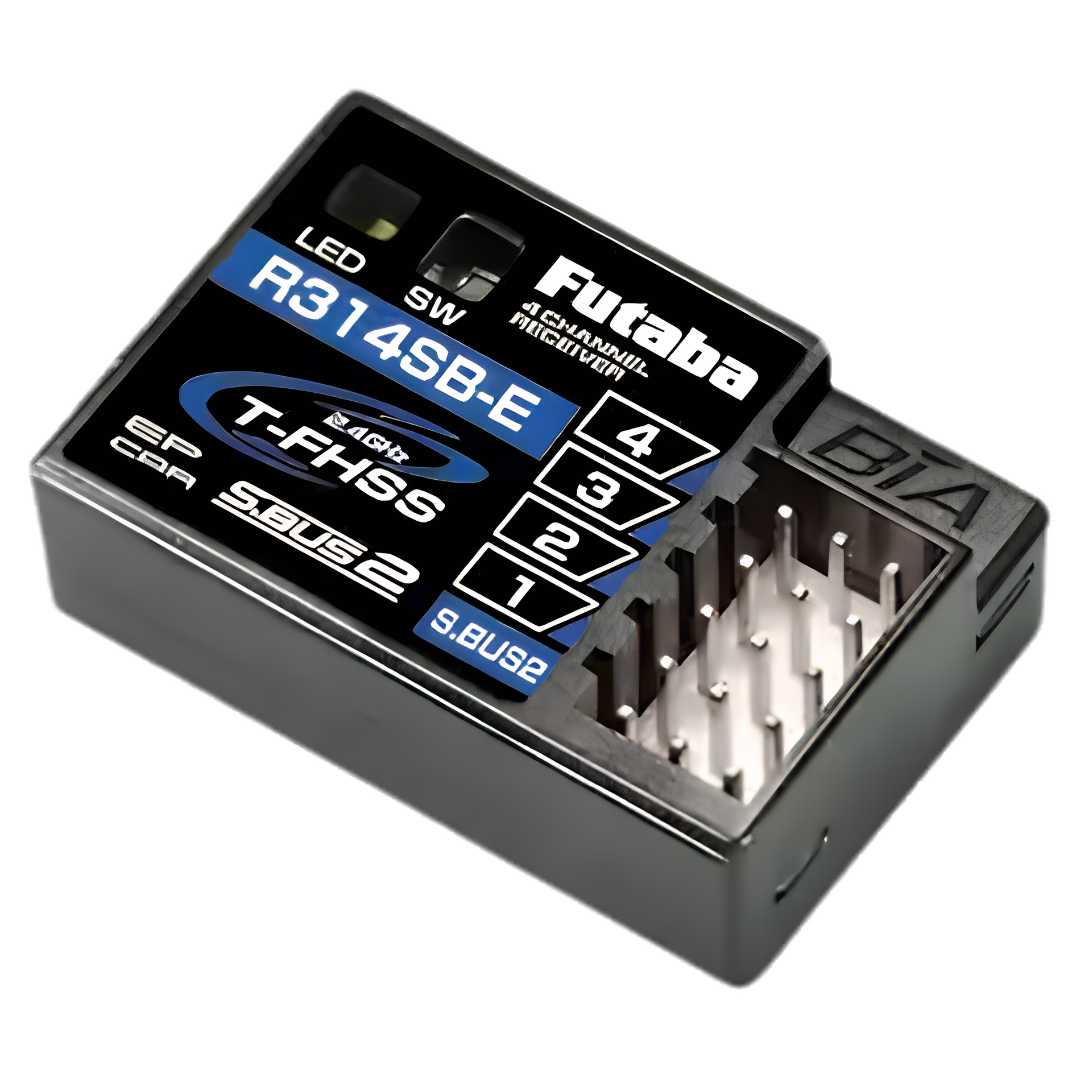

Futaba R314SB-E T-FHSS 4CH S.BUS2 EP Receiver FUTR314SBE

The Futaba R314SB-E is a compact 2.4GHz T-FHSS 4-channel receiver for electric RC cars and trucks, giving Futaba surface radio users S.BUS2 telemetry support and a built-in antenna design for clean EP installations.

This receiver suits compatible Futaba T-FHSS surface transmitters and electric-powered RC models where space, low weight and tidy wiring are important. The R314SB-E provides four channel outputs plus an S.BUS2 port, allowing standard steering and throttle connections as well as optional telemetry sensor expansion when used with compatible Futaba equipment.

Features

• T-FHSS 2.4GHz System: Designed for compatible Futaba T-FHSS surface transmitters
• 4-Channel Output: Provides standard channel outputs for steering, throttle and auxiliary functions
• S.BUS2 Port: Supports S.BUS2 telemetry sensor connection with compatible Futaba transmitters and optional sensors
• Built-In Antenna Design: Helps simplify installation in compact electric RC car and truck layouts
• EP Car Model Use: Designed specifically for electric-powered surface models
• Normal And High Speed Modes: Normal mode accepts standard servo setups, while high-speed mode is for compatible Futaba digital servos
• Compact Receiver Case: Suitable for tight chassis layouts where receiver space is limited
• Lightweight Construction: Listed at 7.0g for minimal impact on vehicle setup

Specifications

• Brand: Futaba
• Model: R314SB-E
• SKU: FUTR314SBE
• OZRC SKU: FUT07102013-3
• Product Type: 2.4GHz surface receiver
• Application: EP electric RC car and truck models
• Frequency: 2.4GHz
• Protocol: T-FHSS
• Channels: 4 channels
• Output: Channel 1 to 4 plus S.BUS2 port
• Telemetry: S.BUS2 telemetry compatible with optional sensors
• Antenna Type: Built-in antenna
• Rated Voltage: 4.8V to 7.4V
• Operating Voltage: 4.0V to 8.4V
• Receiving Range: 70m under best conditions
• Dimensions: 35.1 x 23.2 x 12.5mm
• Weight: 7.0g
• Compatible Transmitter Type: Futaba T-FHSS surface transmitters
• Common Compatible Transmitters: Futaba 3PV, 4PLS and 4PX where T-FHSS receiver mode is supported
• Intended Use: Electric RC racing, drifting, touring, crawling and indoor surface model installations

Includes

• 1 x Futaba R314SB-E T-FHSS 4-channel S.BUS2 receiver

FAQ

Does the Futaba R314SB-E support telemetry? Yes. The R314SB-E supports telemetry through its S.BUS2 port when used with a compatible Futaba transmitter and optional S.BUS2 telemetry sensors.

Can the R314SB-E be used in nitro or petrol RC cars? No. The Futaba R314SB-E is designed for EP electric car models only and should not be used in GP engine-powered cars.

Does this receiver work with Futaba S-FHSS or FASST systems? No. The R314SB-E is a T-FHSS receiver and does not work with Futaba S-FHSS, FHSS, FASSTest or FASST systems.

Can analogue servos be used with this receiver? Analogue servos can be used in normal mode, but high-speed mode requires Futaba digital servos, including compatible brushless servos.

Important Notes

• For EP electric RC car models only.
• Do not use this receiver in GP, nitro or petrol engine-powered RC cars.
• Set the compatible Futaba transmitter receiver type to T-FHSS before linking.
• High-speed mode requires compatible Futaba digital servos.
• Do not use dry batteries as the receiver power supply.
• Optional S.BUS2 telemetry sensors are sold separately.
• Protect the receiver from water, excessive vibration and moving parts during installation.
• Install the receiver with suitable ventilation, as the receiver can generate heat during use.
