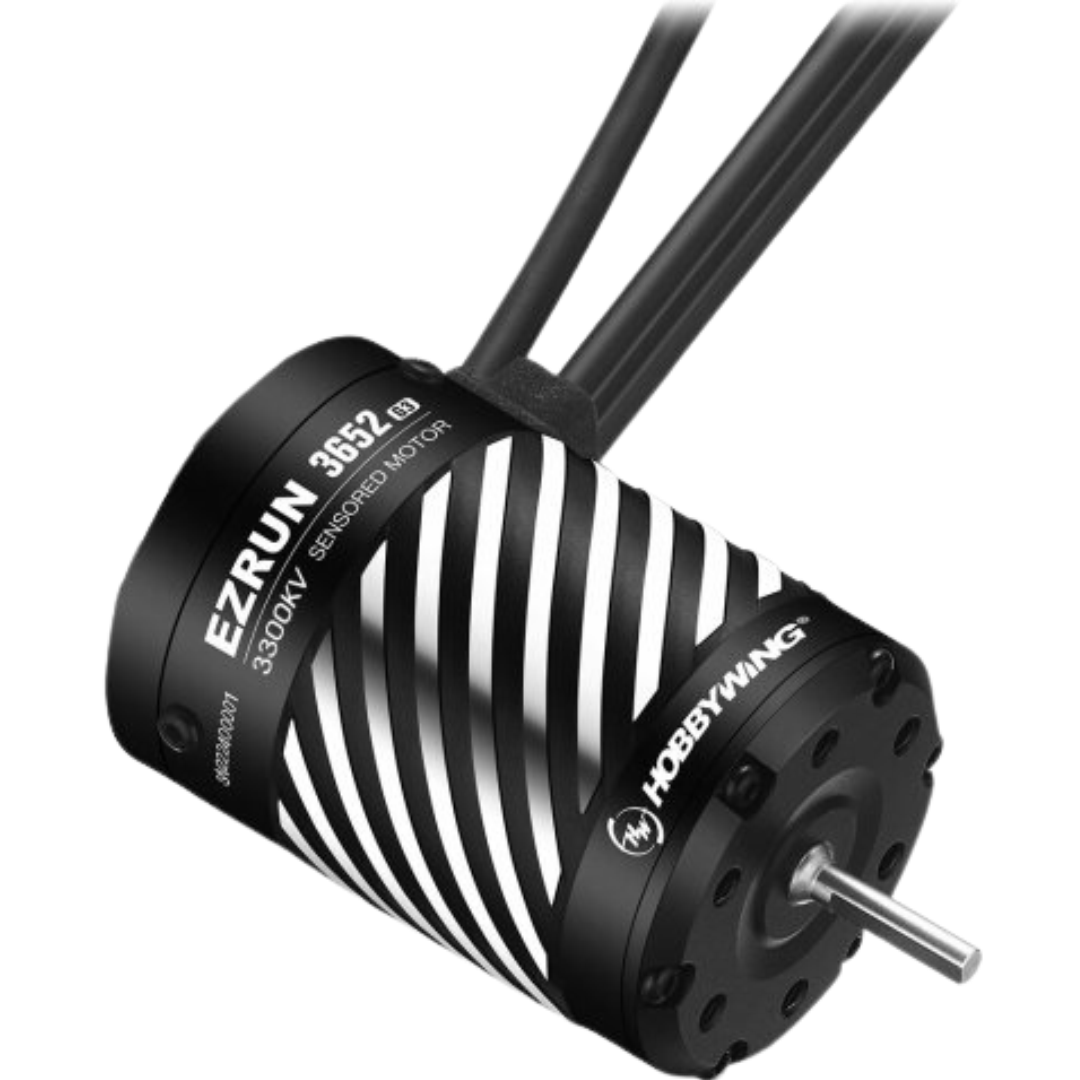

Hobbywing EZRun 3652SD G3 3300KV 1/10 Sensored Brushless Motor Black HW30402603
Couldn't load pickup availability
The Hobbywing EZRun 3652SD G3 3300KV Sensored Brushless Motor delivers smooth throttle response, powerful acceleration and reliable performance for 1/10 scale RC vehicles. Featuring an upgraded sensored system, waterproof construction and improved efficiency, this motor is ideal for on-road and off-road applications. Designed to work seamlessly with the Hobbywing EZRun MAX10 G2 ESC, it provides precise control and dependable power in demanding driving conditions.
Features
- 3300KV Brushless Motor: Delivers strong acceleration, efficient power output and consistent performance.
- Advanced Sensored Technology: Provides smooth throttle response and precise low-speed control.
- IP67 Waterproof Protection: Designed to withstand water and dust exposure in demanding RC environments.
- 4-Pole Motor Design: Produces excellent torque and responsive power delivery.
- Improved Temperature Protection: Compatible with the EZRun MAX10 G2 ESC for motor temperature monitoring.
- High-Efficiency Construction: Features quality internal components for improved durability and performance.
- Durable Motor Housing: Robust construction helps protect internal components during demanding use.
- Optimised Compatibility: Designed for seamless operation with Hobbywing EZRun MAX10 G2 electronic speed controllers.
Specifications
- Brand: Hobbywing
- Series: EZRun G3
- Model: 3652SD
- Part Number: HW30402603
- Motor Type: Sensored Brushless
- KV Rating: 3300KV
- Scale: 1/10
- Pole Count: 4
- Compatible Battery: 2–3S LiPo
- No-Load Current: Less than 3.9A
- Motor Diameter: 37mm
- Motor Length: 53mm
- Shaft Diameter: 3.175mm
- Weight: 228g
- Front Bearing: 13 x 5 x 4mm
- Rear Bearing: 11 x 5 x 5mm
- Colour: Black
- Recommended ESC: Hobbywing EZRun MAX10 G2
- Application: 1/10 Scale On-Road and Off-Road RC Vehicles and Light-Duty Short Course Trucks
Includes
- 1 x Hobbywing EZRun 3652SD G3 3300KV Sensored Brushless Motor Black
Important Notes
- Requires a compatible brushless electronic speed controller, sold separately.
- For optimal sensored performance and temperature monitoring, use with a compatible Hobbywing EZRun MAX10 G2 ESC and appropriate sensor cable.
- 2-3S for on road use, 2S maximum recommended for off road in larger 1/10th scale cars.
- Confirm motor dimensions, gearing and battery compatibility before installation.
