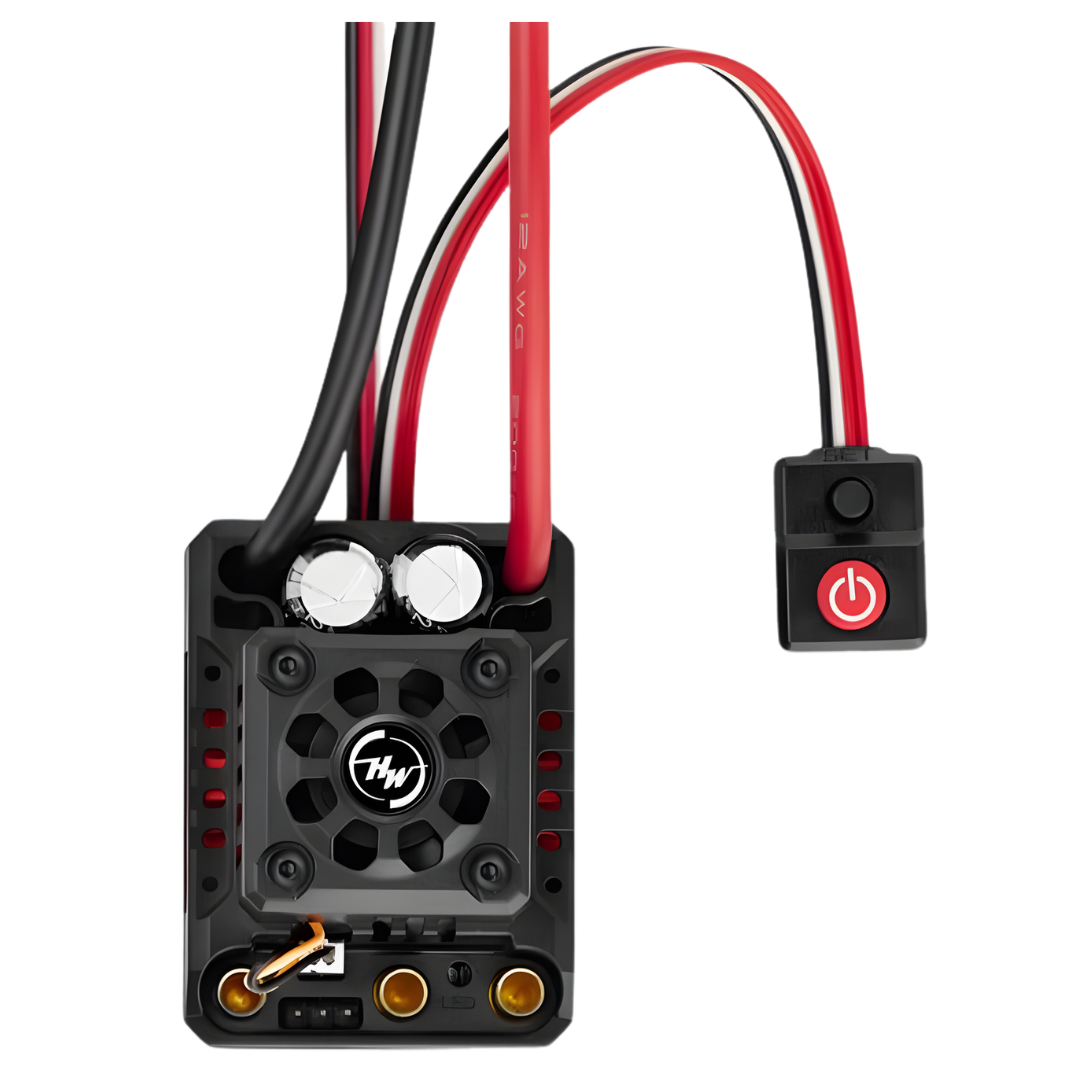

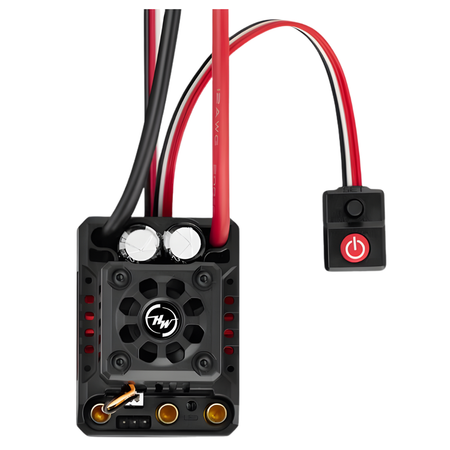

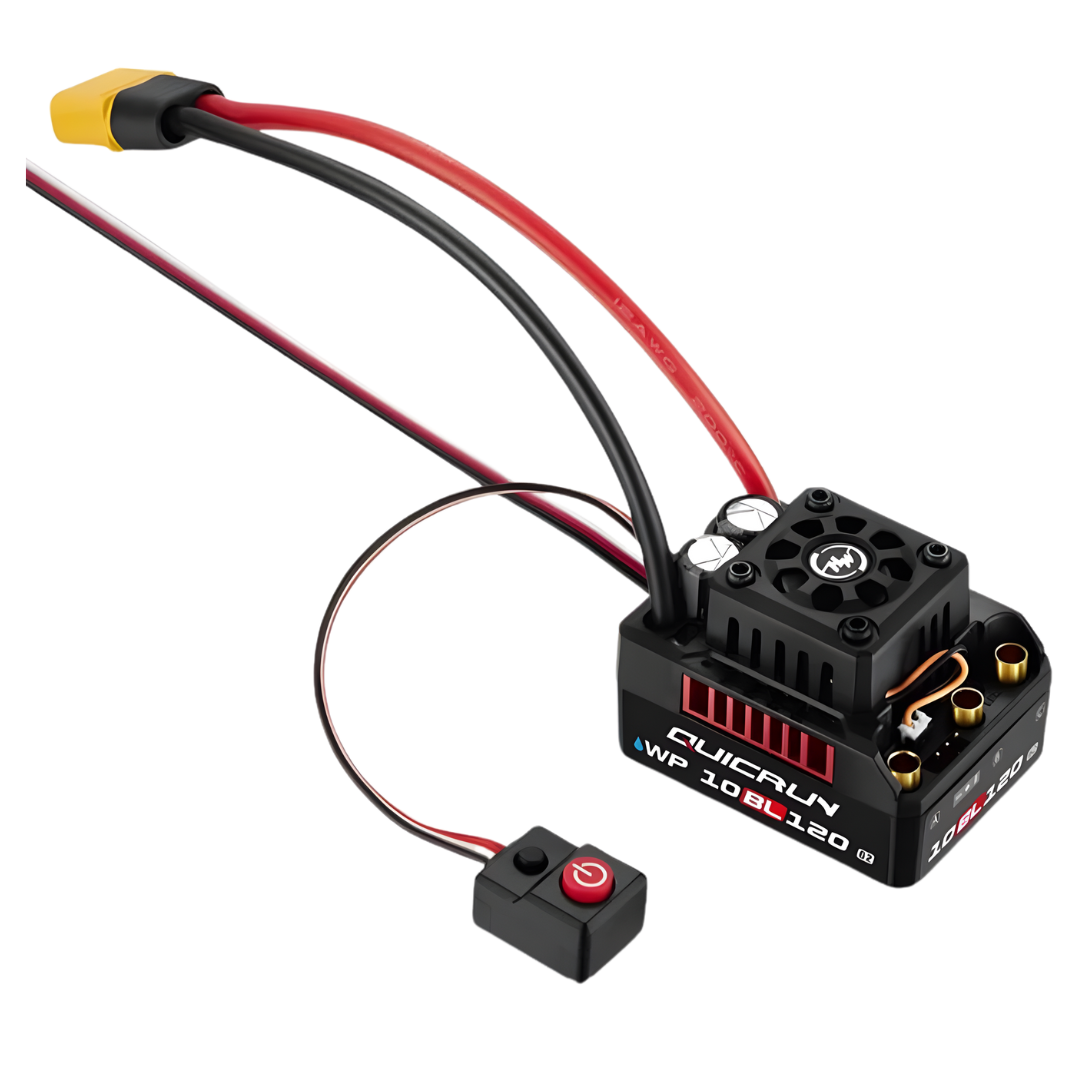

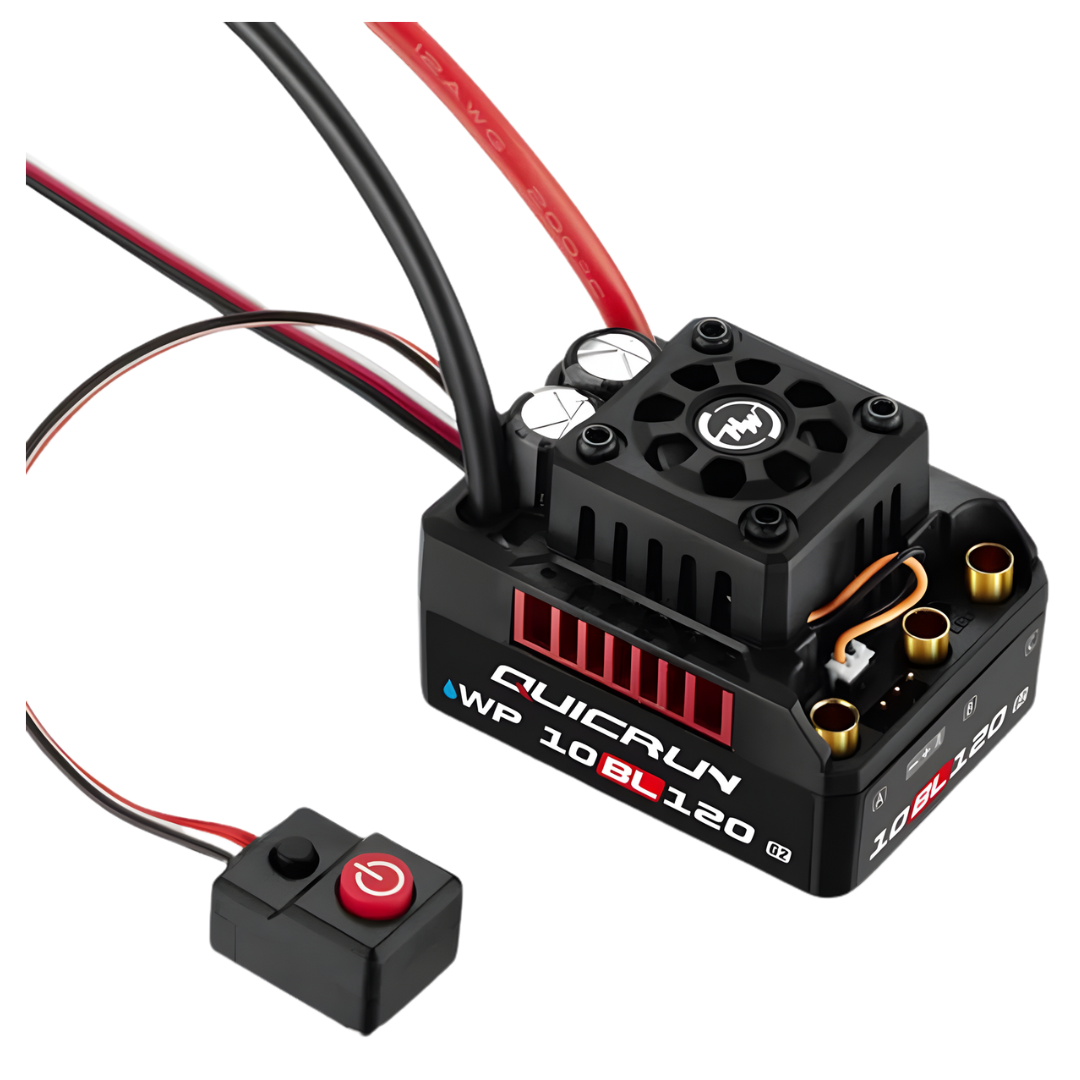

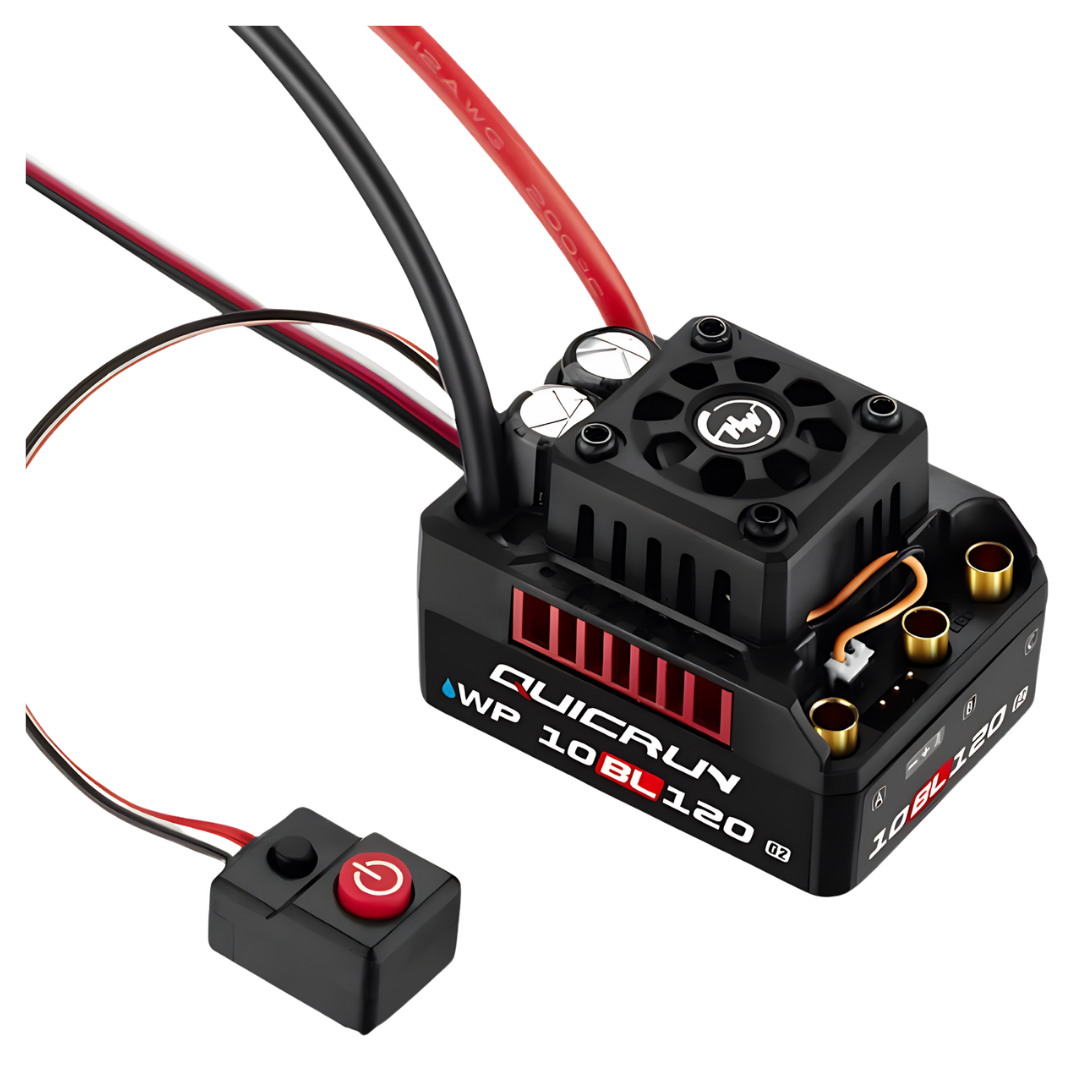

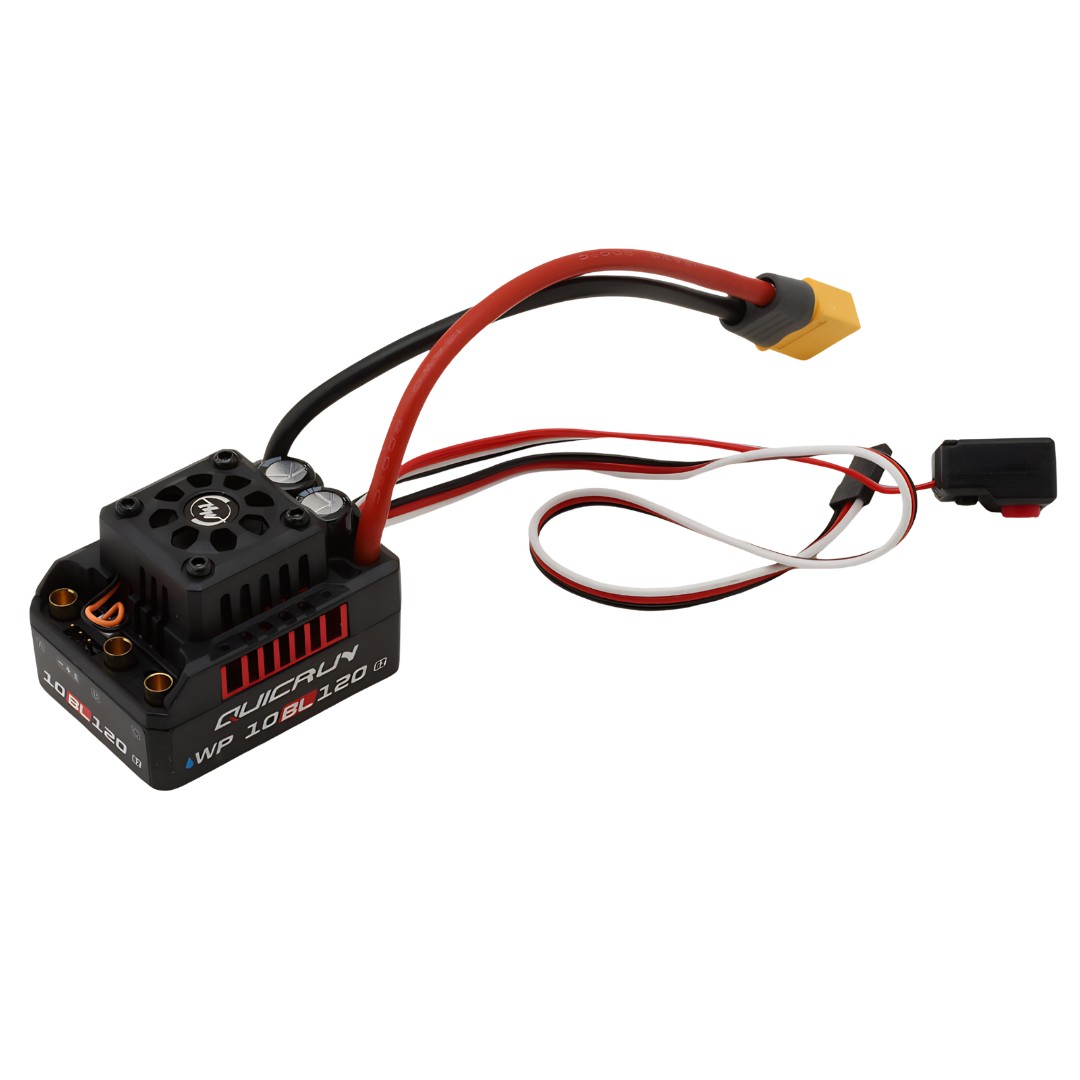

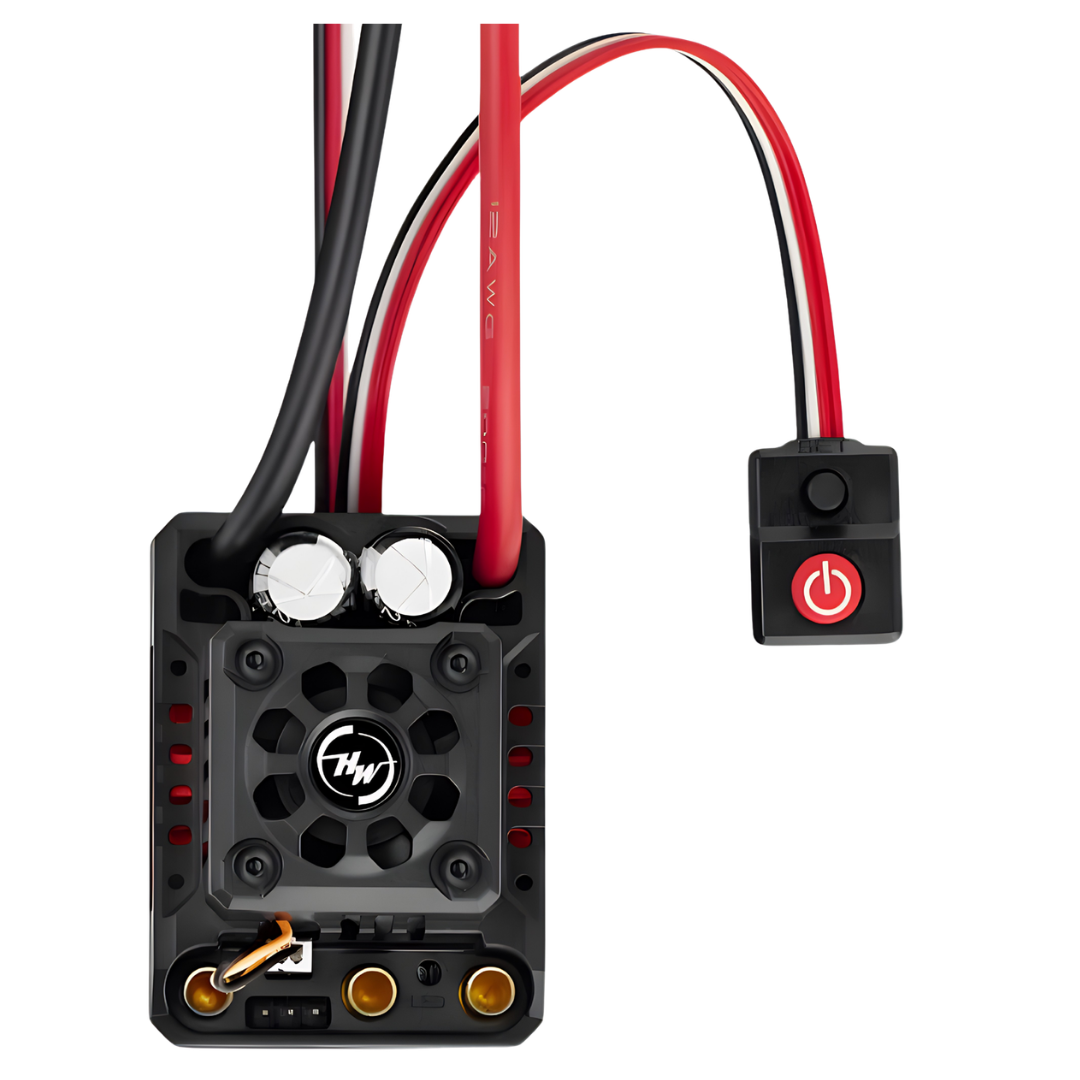

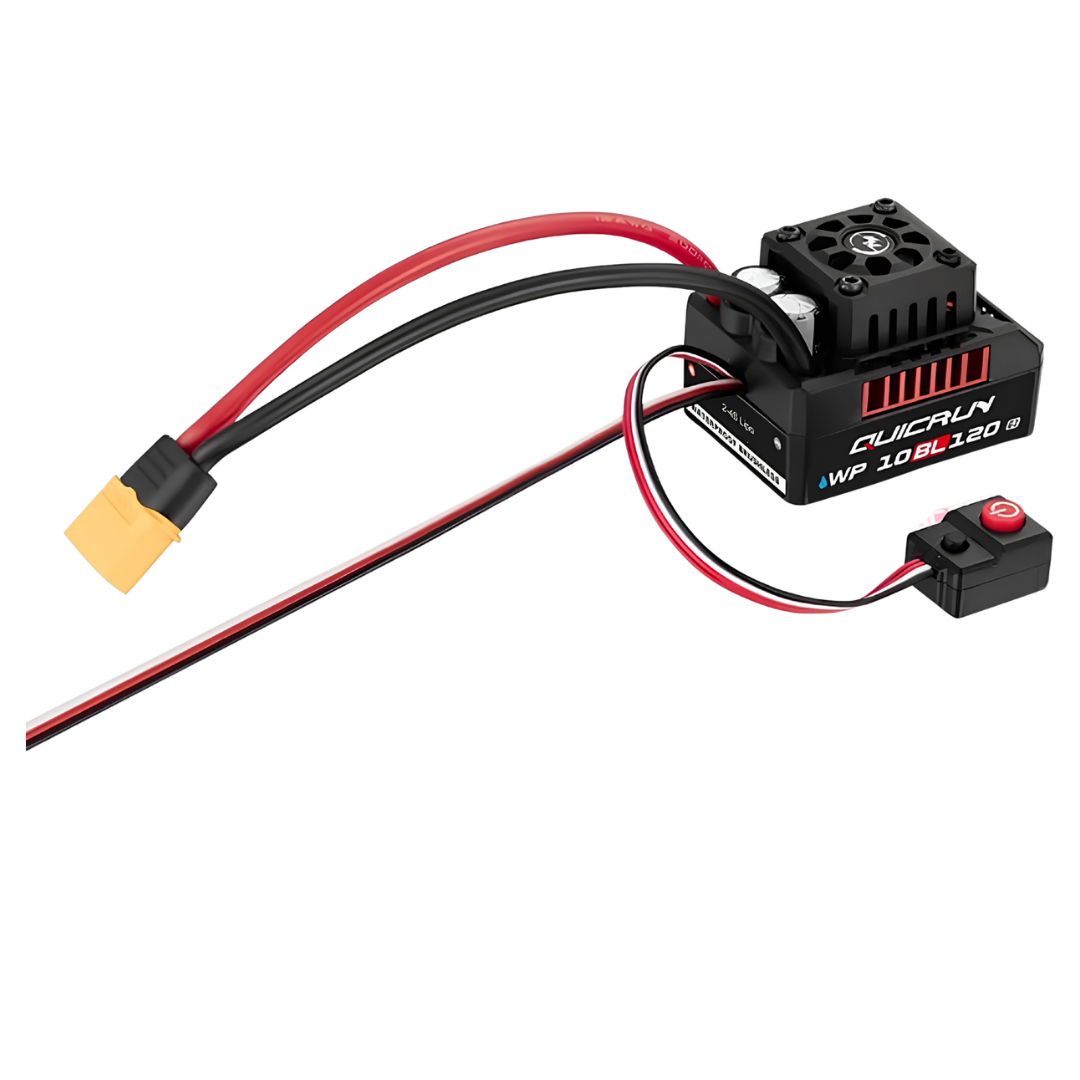

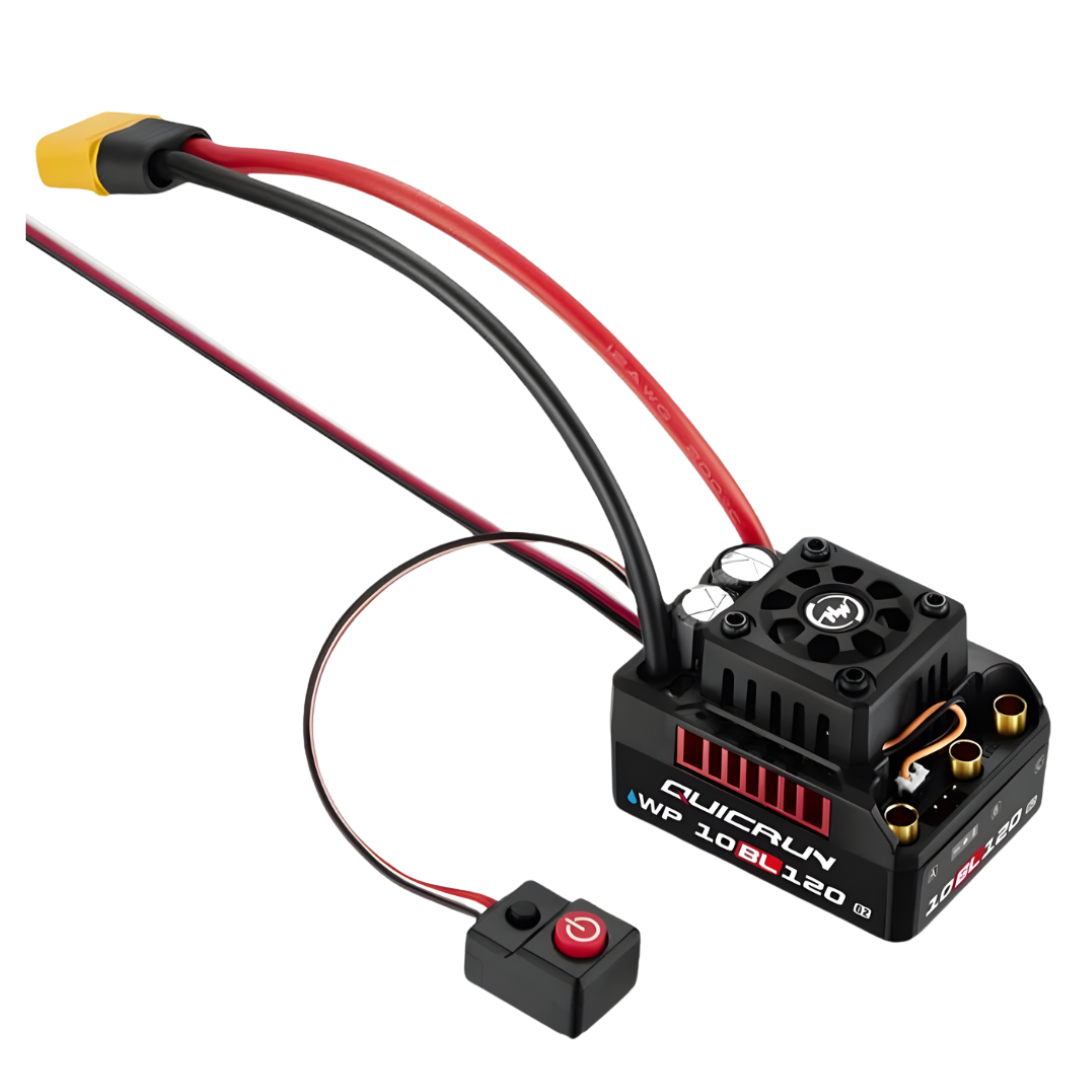

HOBBYWING QuicRun WP 10BL120 G2 Brushless Sensorless ESC HW30107200

The HOBBYWING QuicRun WP 10BL120 G2 is a waterproof, sensorless brushless ESC designed for 1/10 scale short course and monster trucks. Featuring high efficiency, smart protection functions, and powerful BEC output, it delivers stable performance in harsh conditions.

Features

• Waterproof and dustproof design for all-weather performance
• Smart freewheeling technology for improved efficiency and lower temperatures
• Switch-mode BEC with 6V/7.4V output and 5A continuous current
• Multiple protection features including low voltage, overheating, and signal loss
• Independent programming port for convenient setup without unplugging the receiver

Specifications

• Continuous / Peak Current: 120A / 760A
• Motor Compatibility: Sensorless and sensored brushless (sensorless mode only)
• Applications: 1/10 short course truck, monster truck
• Motor Limit (3S LiPo): KV < 4000 (3660 size)
• Motor Limit (4S LiPo): KV < 2600 (4268 size)
• Battery: 2–4S LiPo
• BEC Output: 6V / 7.4V adjustable, 5A continuous (switch-mode)
• Cooling Fan: Powered by built-in BEC
• Dimensions: 52.8 x 39.8 x 38.2 mm
• Weight: 119g (including wires and connectors)
• Programming: Independent port for ease of access

Includes

• QuicRun WP 10BL120 G2 ESC
• Cooling fan (pre-installed)
• Wiring and connectors
• User manual

Important Notes

• Read the instruction manual thoroughly before use
• Ensure proper soldering techniques to avoid short circuits or damage
• Disconnect battery after each use to prevent complete discharge
• Always operate within recommended voltage, current, and temperature limits
