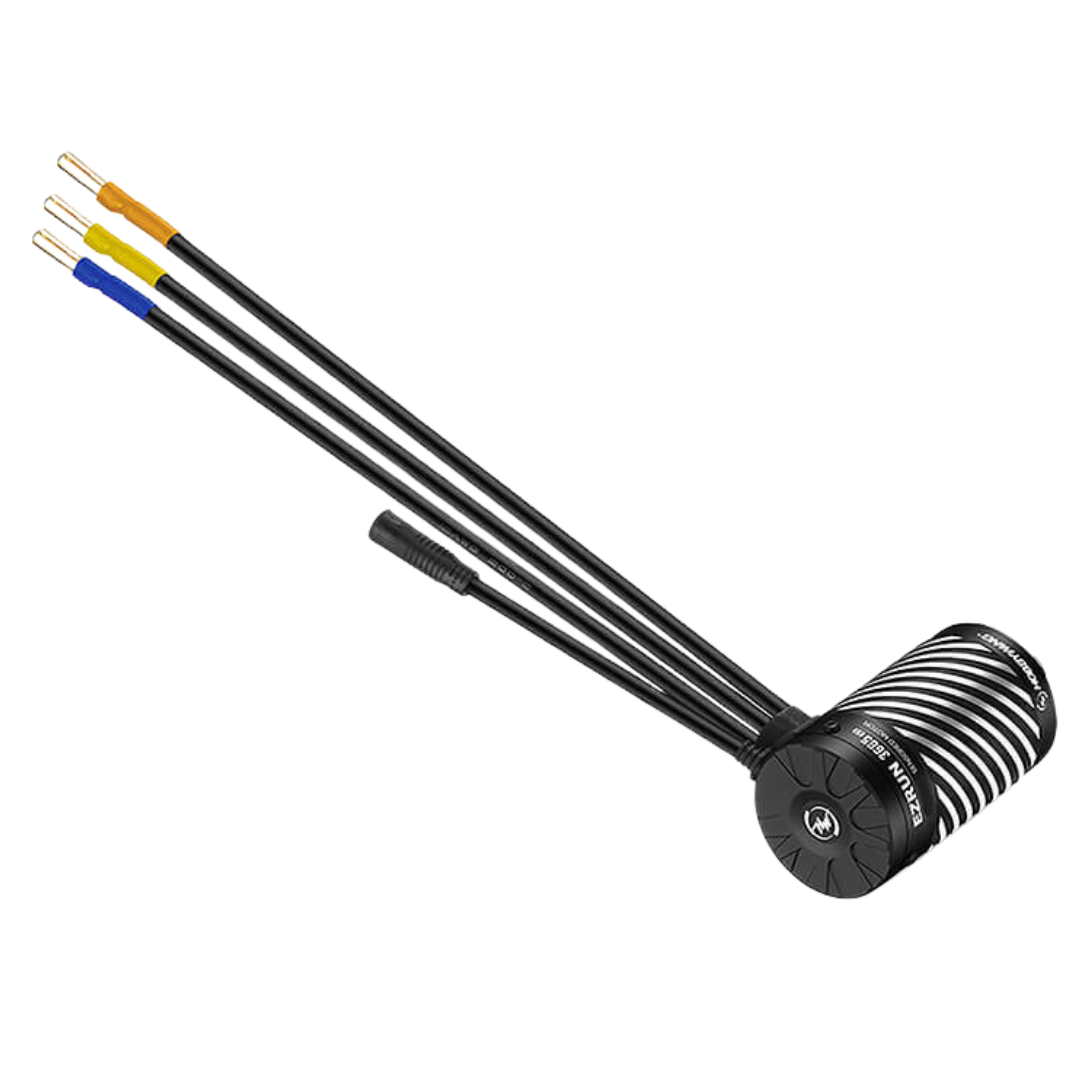

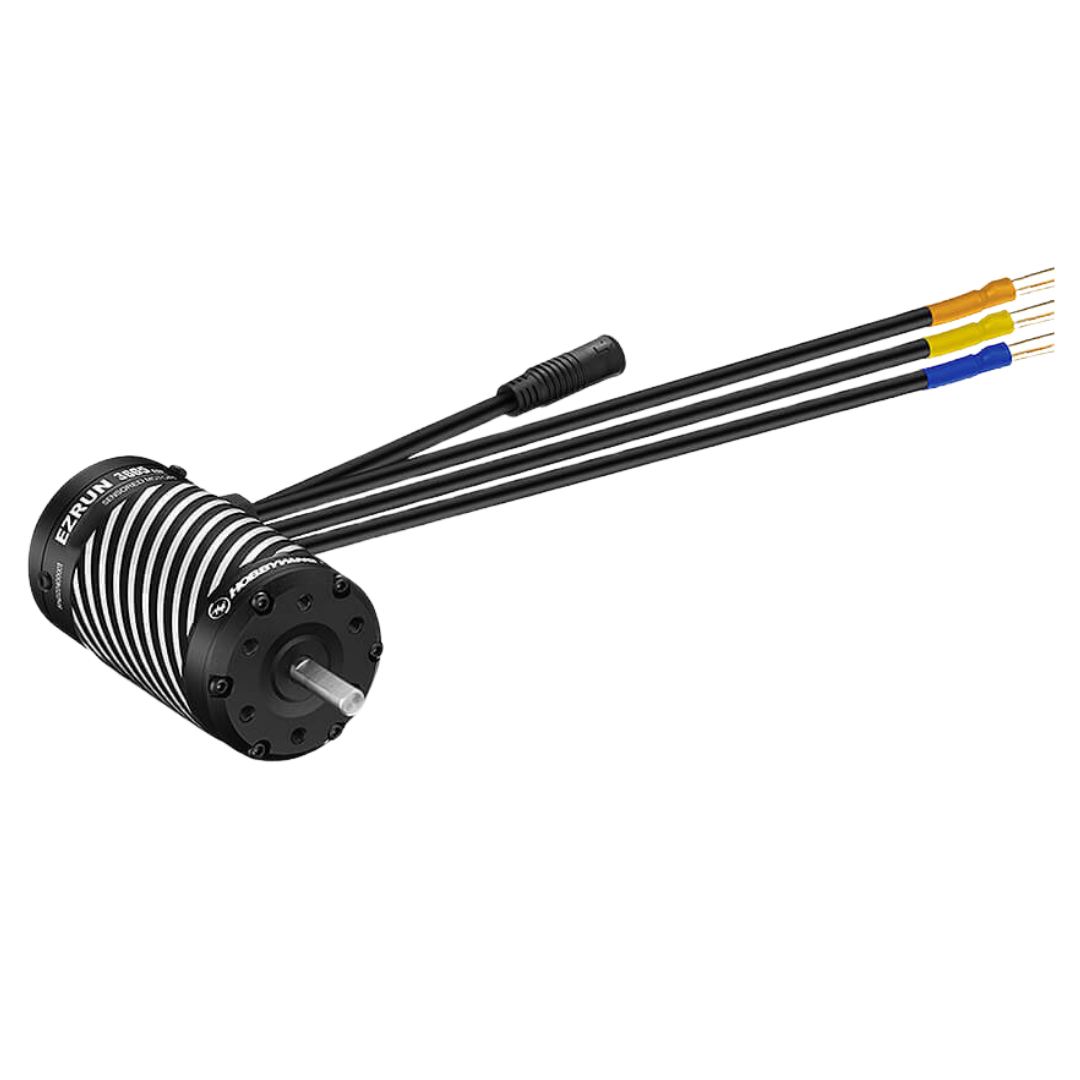

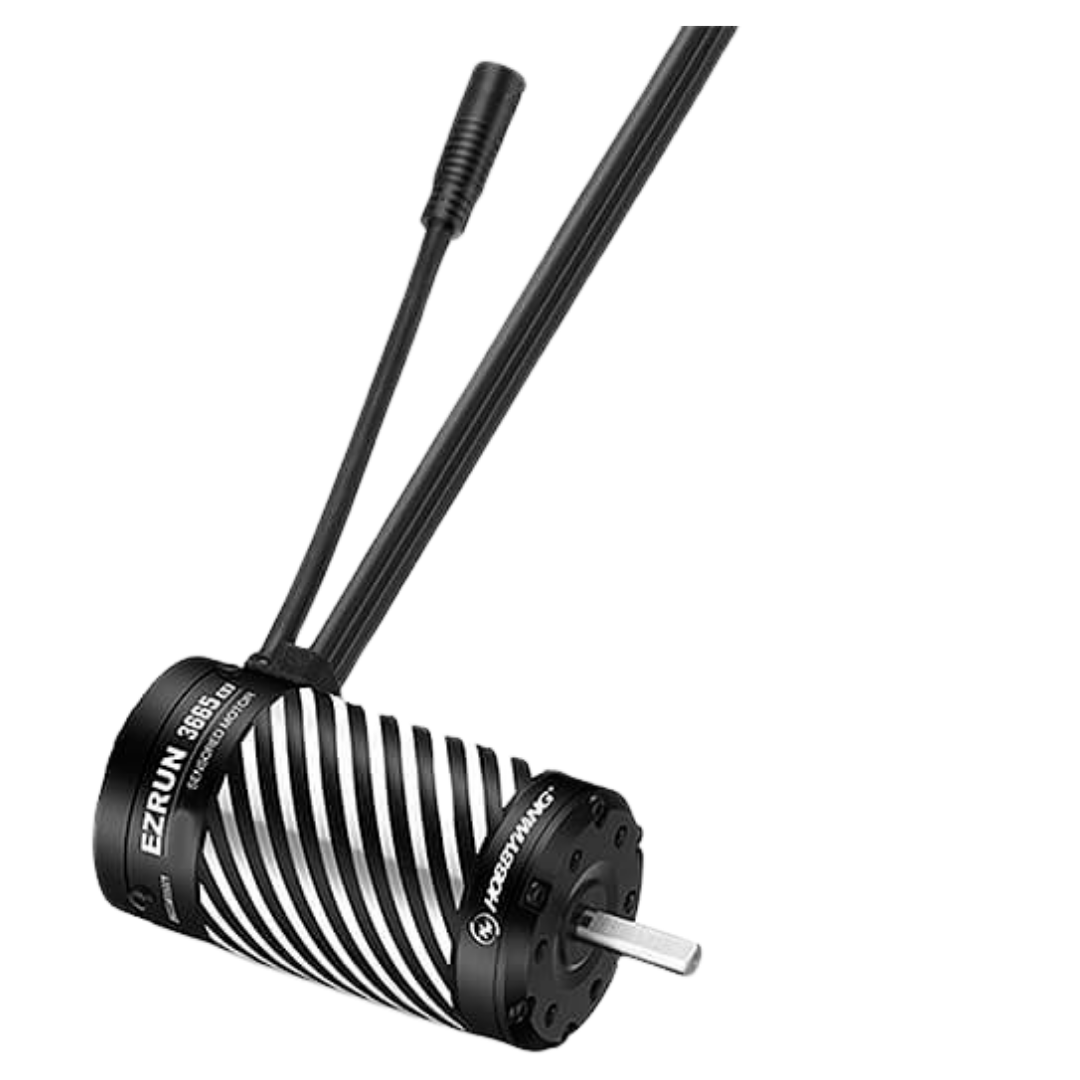

Hobbywing EZRUN 3665SD G3 Sensored Brushless Motor 3200KV HW30402607
Couldn't load pickup availability
The Hobbywing EZRUN 3665SD G3 3200KV is a 4-pole sensored brushless motor for 1/10 short course trucks truggies and monster trucks, combining smooth sensored throttle response with a robust 3665-size platform for compatible 2S to 3S power systems
Features
- 3200KV sensored brushless motor for 1/10 RC applications
- 4-pole rotor design for strong torque and acceleration
- High-precision Hall sensor system for accurate rotor position feedback
- Improved waterproof sensored cable interface
- Supports motor temperature protection when paired with compatible Hobbywing electronics
- High-precision front and rear bearings for smooth operation
- Designed to pair with the Hobbywing EZRUN MAX10 G2 series
- Suitable for compatible short course trucks truggies and monster trucks
Specifications
- Brand: Hobbywing
- Series: EZRUN 3665SD G3
- Product Type: Sensored Brushless Motor
- Scale: 1/10
- KV Rating: 3200KV
- Pole Count: 4
- LiPo Compatibility: 2S to 3S
- No-Load Current: Up to 7.1A
- Motor Diameter: 37mm
- Motor Length: 65.8mm
- Shaft Diameter: 5mm
- Motor Connectors: 4.0mm Male
- Weight: Approximately 304g
- Front Bearing: D16 x D5 x T5
- Rear Bearing: D11 x D5 x T5
- Application: 1/10 Short Course Truck Truggy and Monster Truck
- Barcode: 6938994406222
- Manufacturer Part Number: HW30402607
Includes
- 1 x Hobbywing EZRUN 3665SD G3 3200KV Sensored Brushless Motor
- 1 x User Manual
- 1 x Hobbywing Decal
FAQ
Is the Hobbywing 3665SD G3 3200KV sensored or sensorless? It is a sensored brushless motor and Hobbywing specifically describes the 3665SD G3 range as sensored
What battery voltage can HW30402607 use? Hobbywing specifies 2S to 3S LiPo operation for the 3200KV version
What ESC is recommended for this motor? Hobbywing identifies the EZRUN MAX10 G2 series as the intended matching ESC family for the EZRUN 3665SD G3 motor
What vehicles is this motor designed for? Hobbywing lists the 3200KV version for compatible 1/10 short course trucks truggies and monster trucks
Important Notes
- Confirm motor dimensions shaft size gearing and ESC compatibility before installation
- Use gearing and battery voltage appropriate for the vehicle weight tyre size and operating conditions
- Monitor motor and ESC temperatures after gearing or battery changes
