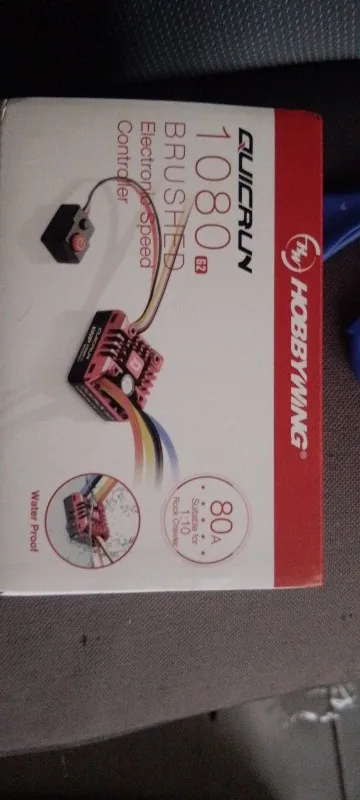

Hobbywing QuicRun WP 1080 G2 Brushed Crawler ESC 30120202

The Hobbywing QuicRun WP 1080 G2 Brushed ESC is a waterproof electronic speed controller designed specifically for 1/10 scale RC rock crawlers. The second generation WP1080 adds advanced tuning options, real-time auxiliary channel adjustments, improved BEC performance and smooth brushed motor control for technical crawling.

Features

• Designed For Rock Crawlers: Purpose-built brushed ESC for 1/10 scale crawler applications requiring smooth throttle control
• Real-Time Car Mode Switching: Allows motor direction control through an AUX transmitter channel for enhanced driving options
• Adjustable Handbrake Control: Handbrake force can be adjusted in real time using an additional AUX channel
• Powerful Adjustable BEC: Switch-mode BEC supports 6V, 7.4V and 8.4V output with up to 6A peak capability
• IP67 Waterproof Design: Built to handle demanding crawler conditions including mud, dirt and wet environments
• 15 Programmable Parameters: Over 90 selectable values allow detailed tuning for different vehicles and driving styles
• Precision Drag Brake Adjustment: Fine-tune drag brake settings for controlled descents and technical obstacles
• Separate Programming Port: Allows convenient ESC setup without disconnecting receiver wiring
• Compact And Durable: Lightweight design provides easy installation while maintaining crawler reliability
• XT60 Connector Installed: Factory-fitted battery connector for secure power connection

Specifications

• Brand: Hobbywing
• Model: QuicRun WP 1080 G2 Brushed
• SKU: HW30120202
• Manufacturer Part Number: 30120202
• Product Type: Brushed electronic speed controller
• Application: 1/10 scale rock crawler
• Motor Type: Brushed
• Continuous Current: 80A
• Peak Current: 400A
• Battery Compatibility: 2-3S LiPo / 5-9 cell NiMH
• BEC Type: Switch mode
• BEC Output: 6V / 7.4V / 8.4V adjustable
• BEC Current: 4A continuous, 6A peak
• Battery Connector: XT60
• Dimensions: 37.2mm x 31.9mm x 18.4mm
• Weight: 70.2g
• Waterproof Rating: IP67
• Barcode: 6938994413152

Includes

• 1 x Hobbywing QuicRun WP 1080 G2 Brushed ESC with XT60 connector

FAQ

What vehicles is the Hobbywing WP1080 G2 designed for? The QuicRun WP1080 G2 is designed mainly for 1/10 scale brushed RC rock crawlers requiring smooth throttle response and strong drag brake control.

What is new on the WP1080 G2 compared with the original version? The G2 version adds features such as real-time AUX channel adjustments, improved programming options and an upgraded adjustable BEC supporting up to 8.4V output.

Is the Hobbywing WP1080 G2 waterproof? Yes. The ESC is IP67 rated for protection against typical wet crawler conditions, but proper maintenance is recommended after exposure to water or mud.

Can the drag brake be adjusted? Yes. The WP1080 G2 provides detailed drag brake tuning, including real-time adjustment options when connected through a compatible AUX channel setup.

Important Notes

• Designed for brushed motors only and is not compatible with brushless motors
• Confirm motor, battery and vehicle compatibility before installation
• Always check BEC voltage before connecting servos or accessories to prevent damage
• After wet use, clean and dry the vehicle electronics according to manufacturer recommendations
• Motor, battery, programming card, receiver and vehicle are not included unless specified separately
