Vanquish VRD Carbon Competition RC Rock Crawler Kit 1/10th Scale VPS09015

The Vanquish VRD Carbon Kit is an unassembled 1/10 scale competition RC rock crawler kit for experienced builders wanting a lightweight carbon chassis, F10 portal axles and 37% overdrive for high-performance crawling.

This VRD Carbon platform is designed around a low centre of gravity competition layout with 3mm matte carbon fibre frame rails, a 6-degree flat skid plate and Lightweight Spec VFD transmission. The F10 portal axles use brass tube inserts and front alloy knuckle weights to keep mass low and forward for predictable climbing and technical crawling control.

Features

• Competition Crawler Platform: Purpose-built 1/10 kit for technical rock crawling and competition-style builds

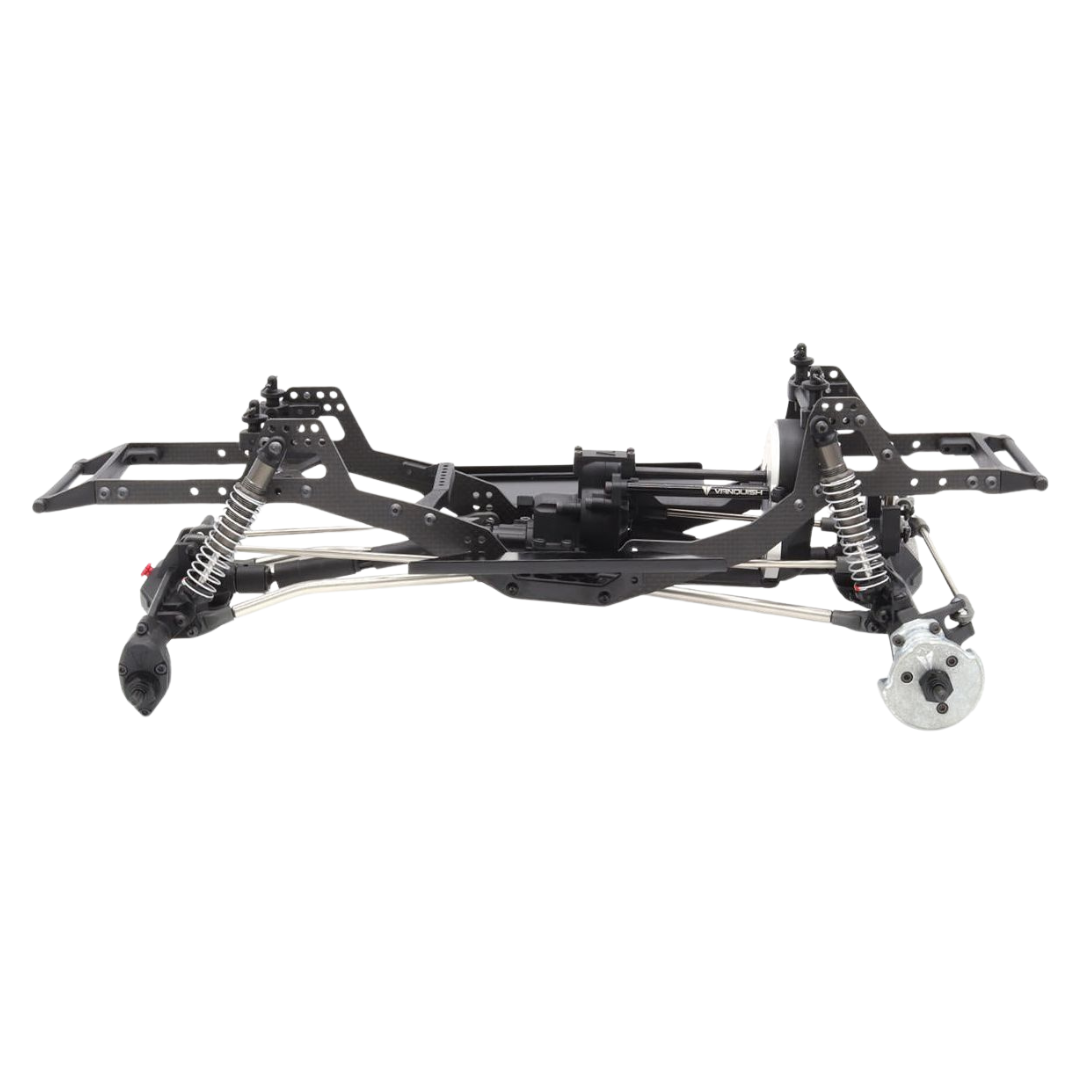

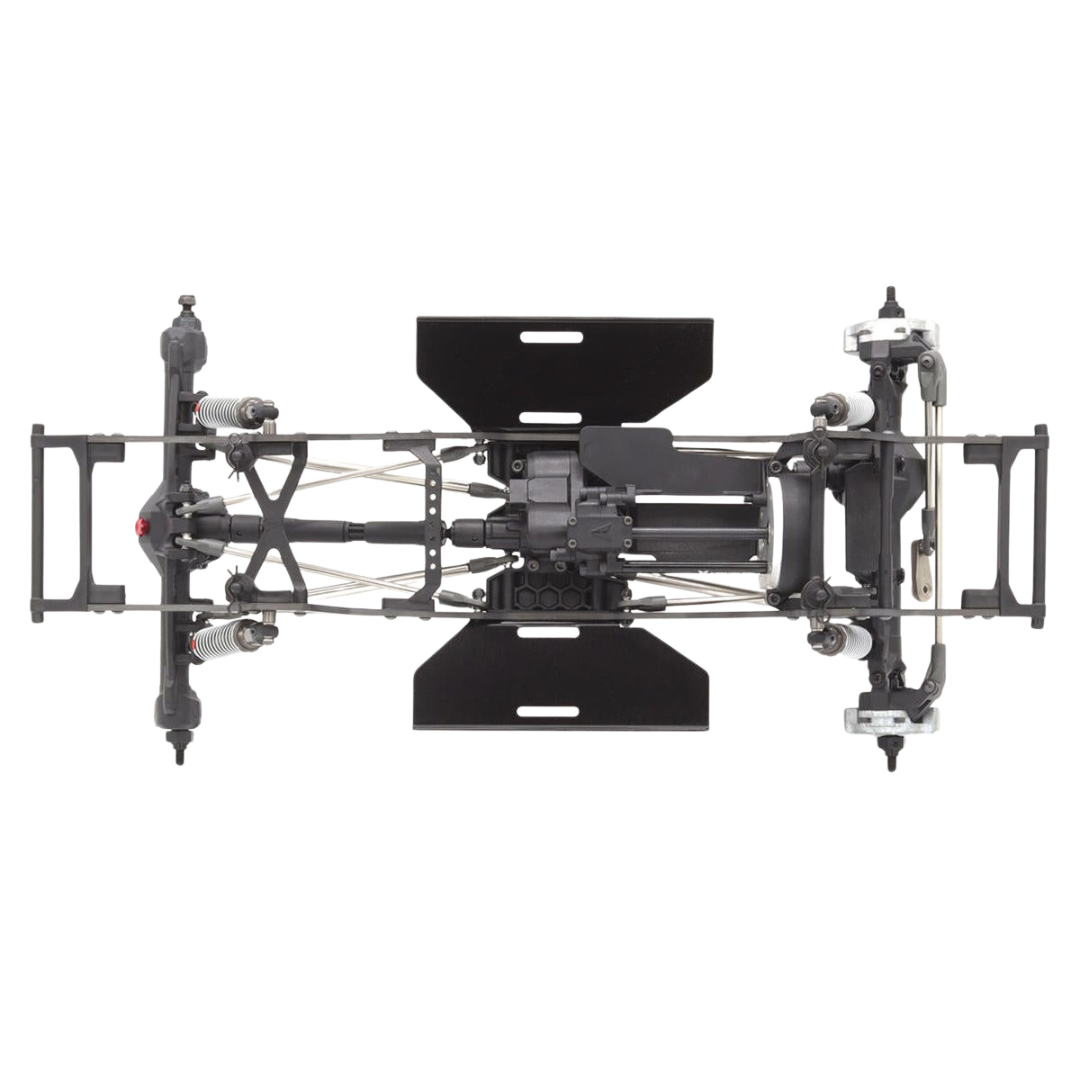

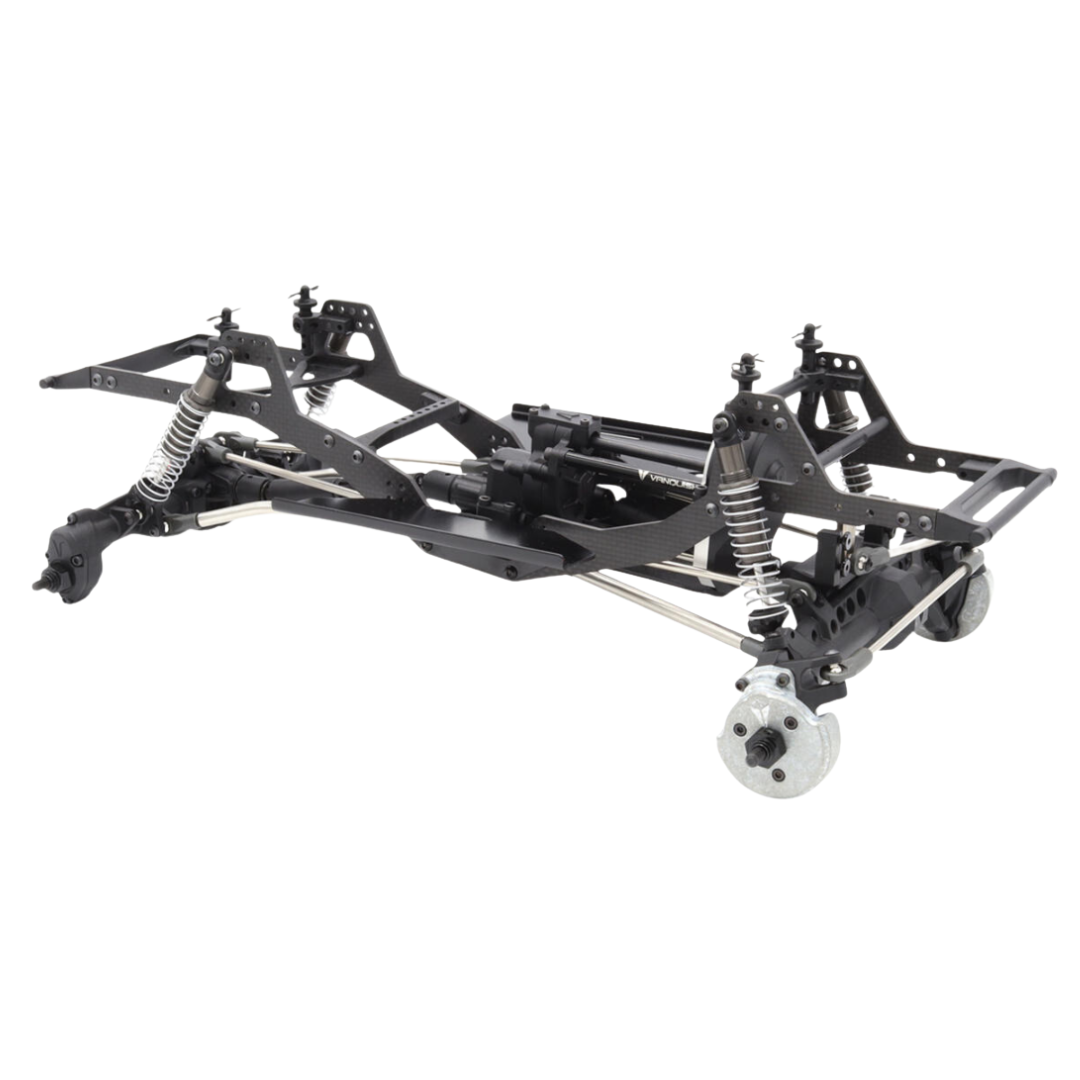

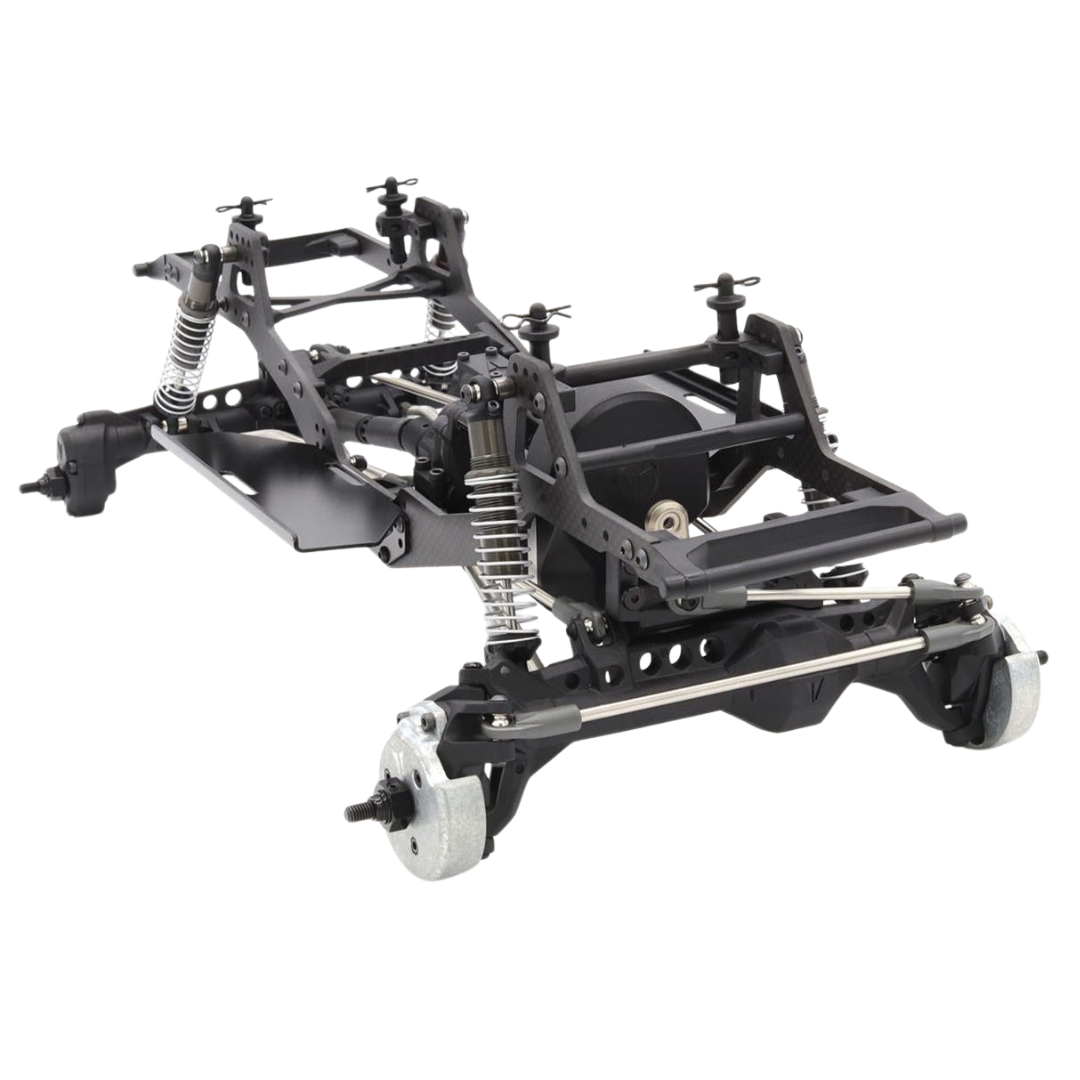

• 3mm Carbon Fibre Frame Rails: Matte carbon rails reduce chassis weight while maintaining a rigid crawler platform
• 6-Degree Flat Skid Plate: Helps position the drivetrain low in the chassis and supports improved breakover clearance

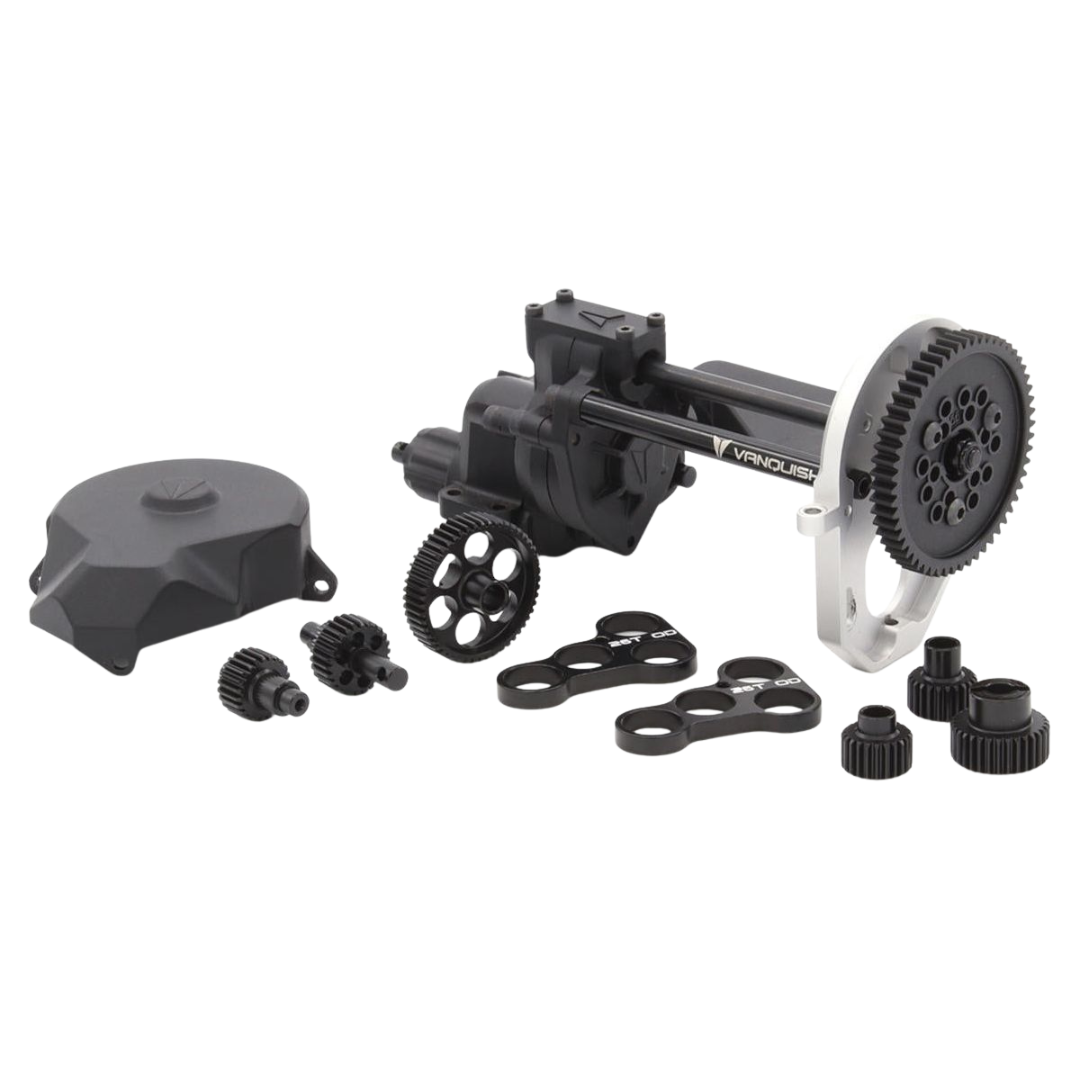

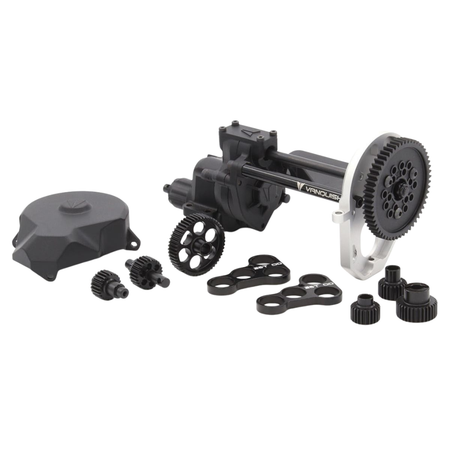

• Lightweight Spec VFD Transmission: Low-mounted transmission layout supports a compact and capable competition setup
• 37% Final Overdrive: Front axle speed bias helps improve climbing control and turning behaviour on technical terrain

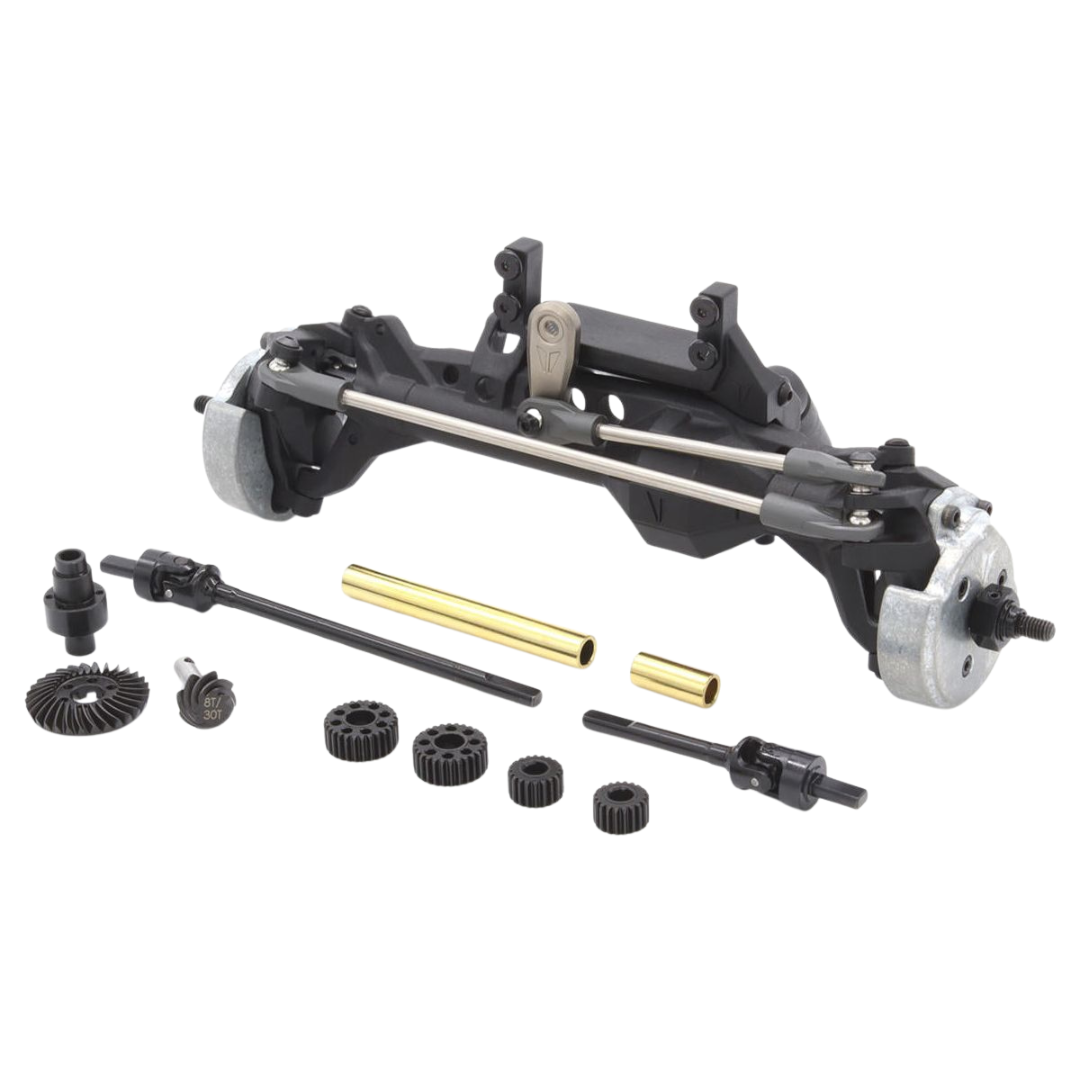

• F10 Portal Axles: Portal axle design increases ground clearance for rocks, ledges and uneven surfaces
• Weighted Axle Setup: Brass axle tube inserts and front alloy portal knuckle weights help lower the centre of gravity

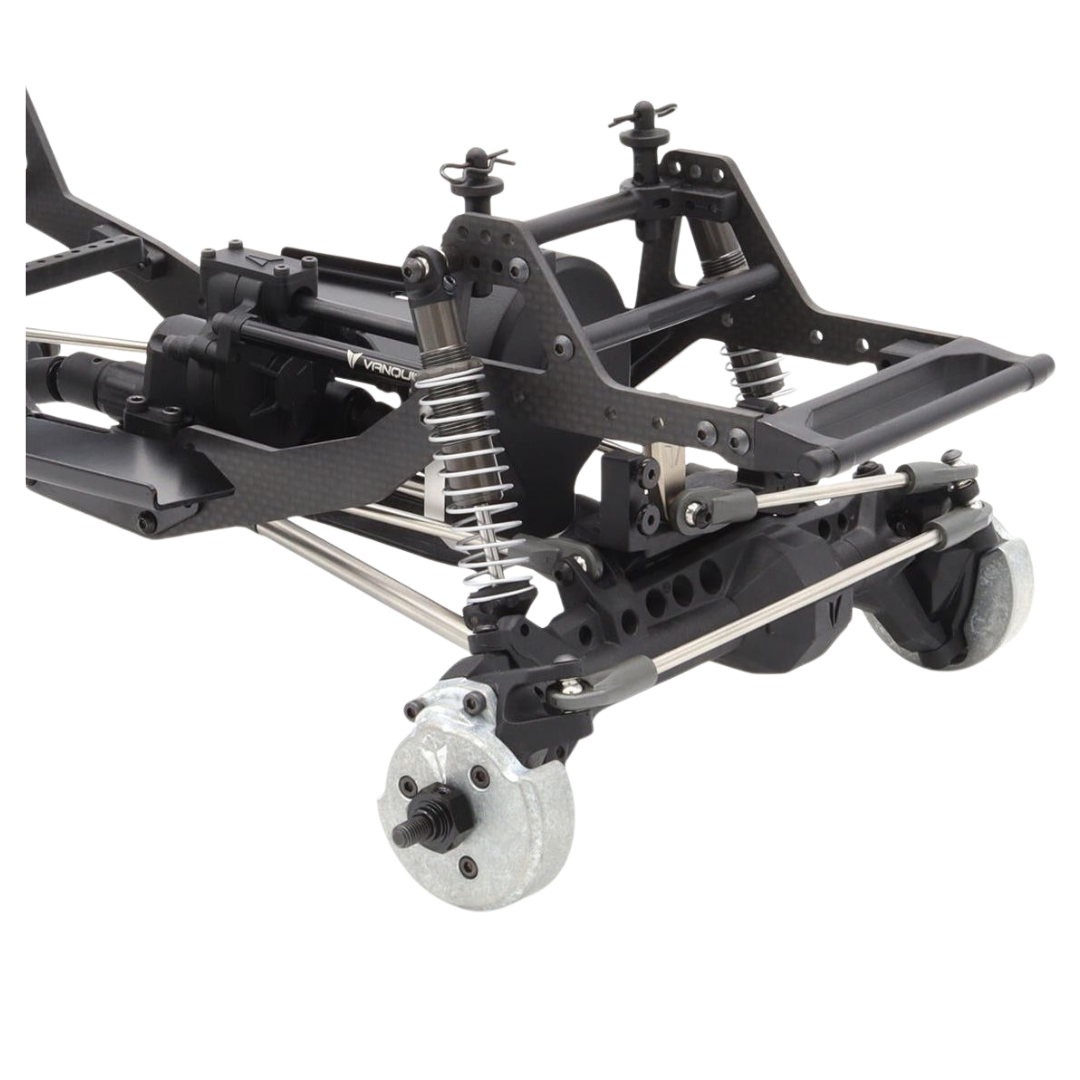

• Front Servo-On-Axle Layout: Front F10 portal axle is equipped for servo-on-axle steering and 4-link geometry
• Machined Drivetrain Components: Includes machined chromoly VFD transmission gears plus machined spool, ring and pinion gears in the axles
• Chromoly Universal Axle Shafts: Durable axle shafts support smooth steering and drivetrain strength
• Incision Suspension Components: Stainless steel links, HD bent rear links and Incision Pro M4 rod ends support precise suspension movement
• Hard-Anodised Shock Bodies: Supplied shock package supports crawler tuning and durability
• Adjustable Body Mounting: Multi-point body mounting system helps suit comp-style body fitment
• Stamped Aluminium Rock Sliders: Provide side support and useful mounting area for electronics or battery placement

Specifications

• Brand: Vanquish Products
• Model: VRD Carbon Kit
• SKU: VPS09015
• Product Type: RC rock crawler competition kit
• Build Level: Unassembled kit
• Scale: 1/10
• Vehicle Type: Electric RC rock crawler
• Drive System: 4WD
• Chassis: 3mm matte carbon fibre frame rails with 6-degree flat skid plate
• Transmission: Lightweight Spec VFD transmission
• Axles: F10 portal axles
• Front Axle Configuration: Servo-on-axle with 4-link layout
• Final Overdrive: 37%
• Front Axle Ratio: 5.25:1
• Rear Axle Ratio: 6.25:1
• Overall Front Ratio: 46.5:1
• Overall Rear Ratio: 68:1
• Pinion Gear: 13T 32P, current manufacturer listed
• Spur Gear: 56T 32P, current manufacturer listed
• Wheelbase: 322 mm, 12.67 inches
• Overall Width Hex-To-Hex: 200 mm, 7.87 inches
• Recommended Tyres: 1.9 x 4.75 inch crawler tyres, required separately
• Recommended Wheels: 1.9 inch Vanquish Products wheels or SLW hub compatible wheels, required separately
• Motor Compatibility: 540 motor required separately
• Maximum Battery Size: 35 x 35 x 100 mm

Includes

• 1 x Vanquish VRD Carbon 1/10 competition rock crawler kit
• 1 x Lightweight Spec VFD transmission assembly
• 1 x F10 portal axle set with brass tube inserts
• 1 x Front alloy portal knuckle weight set
• 1 x Hard-anodised shock set
• 1 x Stainless steel link set with HD bent rear links
• 1 x Incision Pro M4 rod end set
• 1 x Stamped aluminium rock slider set
• 1 x Adjustable multi-point body mounting system
• 1 x 25-spline 20mm servo horn
• 1 x Instruction manual

FAQ

Is the Vanquish VPS09015 ready to run? No. The Vanquish VPS09015 is an unassembled competition kit and requires electronics, body, wheels, tyres, battery, charger, tools and paint to complete.

What wheels and tyres are recommended? Vanquish recommends 1.9 x 4.75 inch tyres and 1.9 wheels, with Vanquish Products or SLW hub compatible wheels required.

What size battery fits the VRD Carbon Kit? The Vanquish VPS09015 battery space is listed with a maximum battery size of 35 x 35 x 100 mm.

Does the kit include electronics? No. A transmitter, receiver, steering servo, 540 motor, ESC, battery and charger are required separately.

Important Notes

• Unassembled kit. Building, setup and tuning are required.
• Requires tools, paint and a comp-style body.
• Requires transmitter, receiver, steering servo, 540 motor, ESC, battery and charger.
• Requires 1.9 wheels and 1.9 x 4.75 inch tyres.
• Vanquish Products or SLW hub compatible wheels are required.
• Maximum listed battery size is 35 x 35 x 100 mm.
• Check servo spline compatibility before fitting the included 25-spline 20mm servo horn.
• Current Vanquish manufacturer data lists 13T 32P pinion and 56T 32P spur gears; some older retailer listings may show different gearing.
• Use threadlock where appropriate for metal-to-metal screws, avoiding contact with plastic parts.
• RC body, wheels, tyres, electronics, battery, charger, tools and paint are not included unless shown separately.
